Bolt Kit-Rotor
Prod #: 230-2589
Price: $23.23

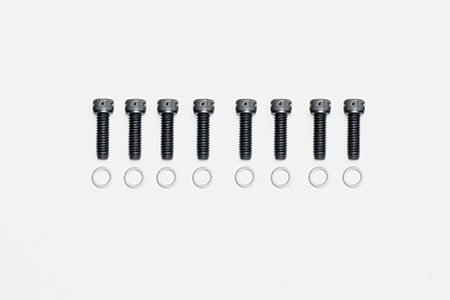

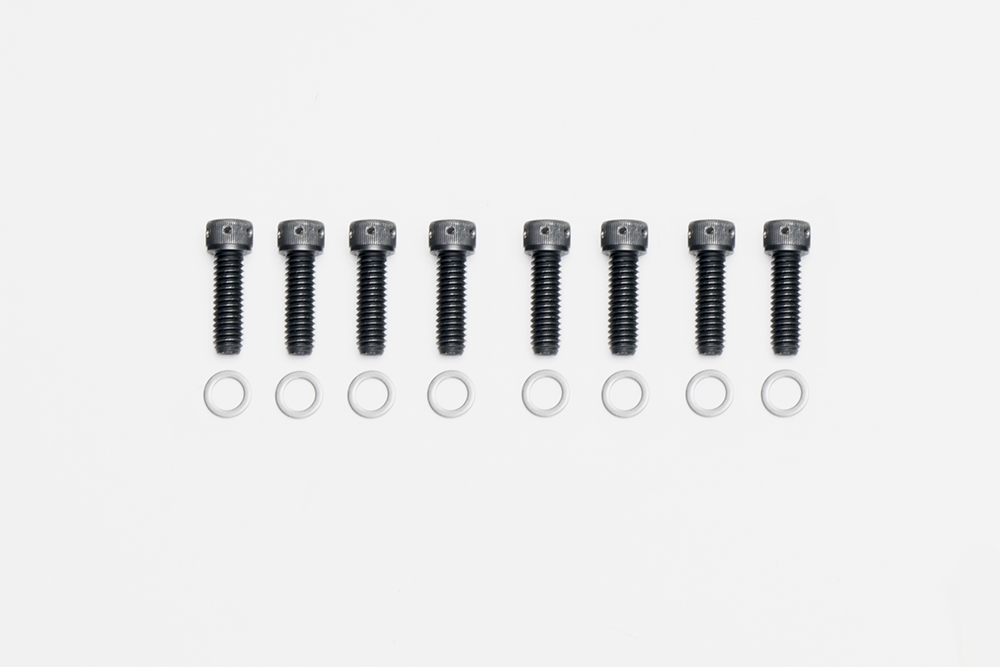

Wilwood Bolt Kit-Rotor Wilwood Bolt Kit-Rotor Zoom Image

Rotor and Hat Hardware

Wilwood’s Rotor Bolt kits contain bolts and hardware for mounting rotors specific hat or adapters.



Bolt Kit-Rotor Description
Type Bolt Kit-Rotor
Material Alloy Steel
Grade Grade 8
Finish
Weight (oz) 0.240
Bolt Qty 8
Shape
Head Type Socket Head
Drive Type Hex Drive
Length 1.000
Thread 5/16-18
Washer Flat
UPC Number
UPC 889545055122
Notes
Desc 1 BOLT KIT,ROTOR,GT REAR,SS,GTL,FRONT/REAR
Desc 2
Cautionary Info

Product Data Sheets
Data Sheet

Bolt Kit-Rotor Dimensions

Drawing Drawing
Dimensions
Thread Size 5/16-18
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled Y
Additional Notes
