Bolt Kit-Rotor Adapter - 230-16422

Call (805) 388-1188
Bolt Kit-Rotor Adapter
Prod #: 230-16422
Price: $67.78

Wilwood Bolt Kit-Rotor Adapter Wilwood Bolt Kit-Rotor Adapter Zoom Image

Rotor and Hat Hardware

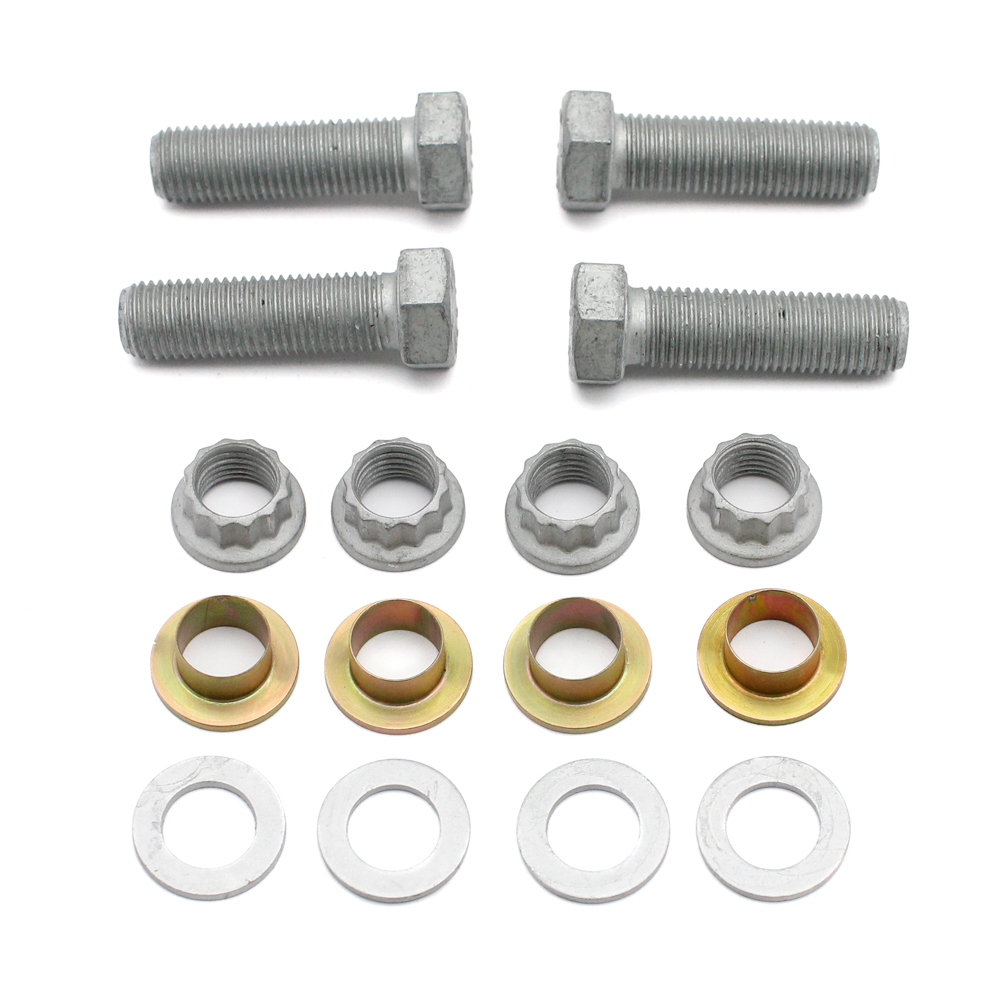

Wilwood’s Hat to Hub bolt kits are manufactured from high strength alloy steel with a plated anti-corrosion finish.



Bolt Kit-Rotor Adapter Description
Type Bolt Kit-Rotor Adapter
Material Alloy Steel
Grade Grade 8
Finish
Weight (oz) 0.450
Bolt Qty 4
Shape
Head Type Hex Head
Drive Type Hex
Length 1.500
Thread 7/16-20
Washer Flat
UPC Number
UPC 889545100747
Notes
Desc 1 BOLT KIT,7/16-20x1.50 LG,HHCS,W/NUTS/
Desc 2 FLANGED WASHERS
Cautionary Info

Product Data Sheets
Data Sheet

Bolt Kit-Rotor Adapter Dimensions

Drawing Drawing
Dimensions
Thread Size 7/16-20
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type 12-Point-L
Lock Wire Drilled
Additional Notes


All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
