Bolt Kit-Drive Flange
Prod #: 230-1378
Price: $28.62

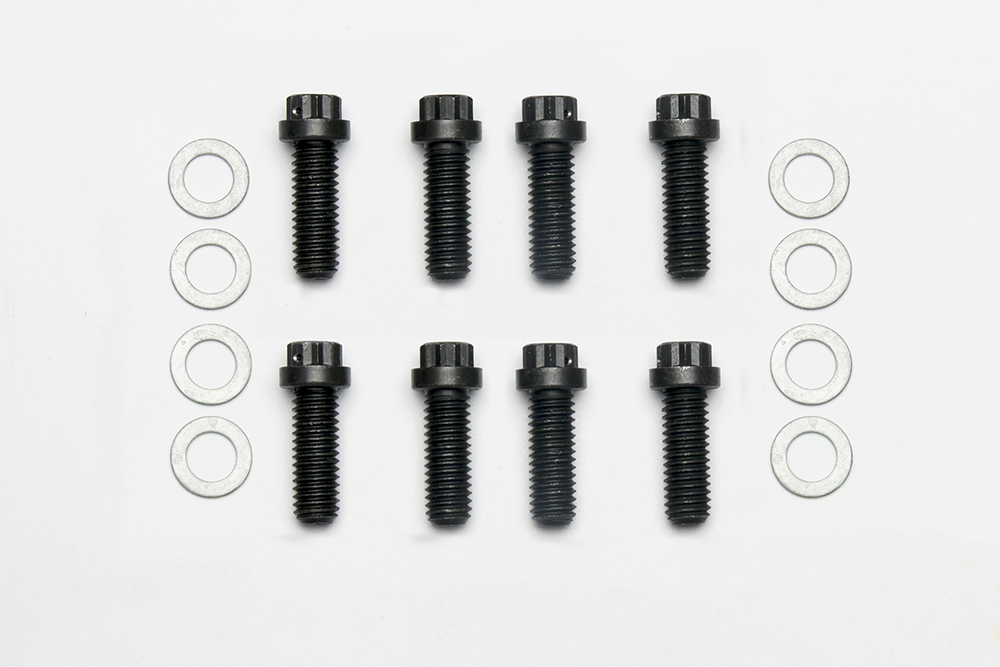

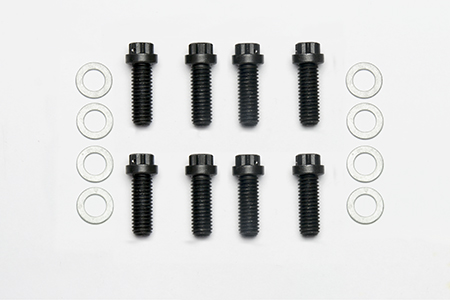

Wilwood Bolt Kit-Drive Flange Wilwood Bolt Kit-Drive Flange Zoom Image

Hub Accessories - Wide 5

Wilwood's Drive Flange Bolt kit features 8 quantity, 7/16-14, 12 Point bolts for 8 bolt drive flanges.



Bolt Kit-Drive Flange Description
Type Bolt Kit-Drive Flange
Material Alloy Steel
Grade Grade 8
Finish
Weight (oz) 0.600
Bolt Qty 8
Shape
Head Type 12 Point
Drive Type 12 Point
Length 1.250
Thread 7/16-14
Washer Flat
UPC Number
UPC 889545054842
Notes
Desc 1 BOLT KIT,DRIVE FLANGE,7/16-14,8-PK
Desc 2
Cautionary Info

Product Data Sheets
Data Sheet

Bolt Kit-Drive Flange Dimensions

Drawing Drawing
Dimensions
Thread Size 7/16-14
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled Y
Additional Notes
