Stud-Double Ended
Prod #: 230-13760
Price: $8.58

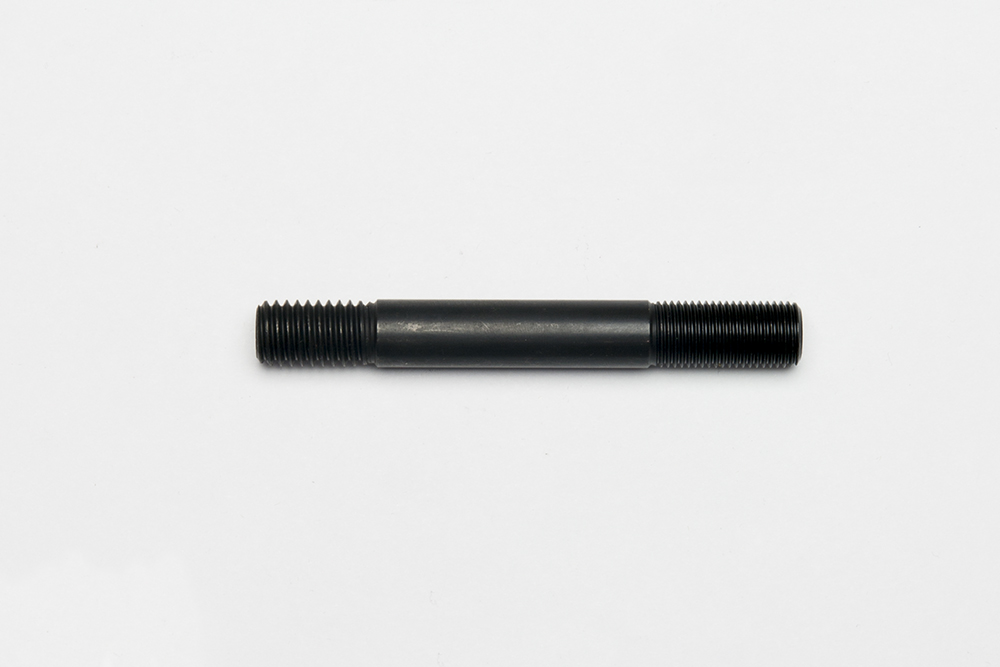

Wilwood Stud-Double Ended Wilwood Stud-Double Ended Zoom Image

Studs

Alloy Steel Double Ended Studs. Plated for corrosion resistance.



Stud-Double Ended Description
Type Stud-Double Ended
Material Alloy Steel
Grade
Finish
Weight (oz) 0.200
Bolt Qty 1
Shape
Head Type
Drive Type
Length 3.980
Thread 1/2-13 x 1/2-20
Washer
UPC Number
UPC 889545075311
Notes
Desc 1 STUD,BRACKET,1/2-13x1/2-20x3.9800 LG
Desc 2 RADIAL MT
Cautionary Info

Product Data Sheets
Data Sheet

Stud-Double Ended Dimensions

Drawing Drawing
Dimensions
Thread Size 1/2-13 x 1/2-20
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled
Additional Notes
