Screw-Hex
Prod #: 230-12708
Price: $0.22

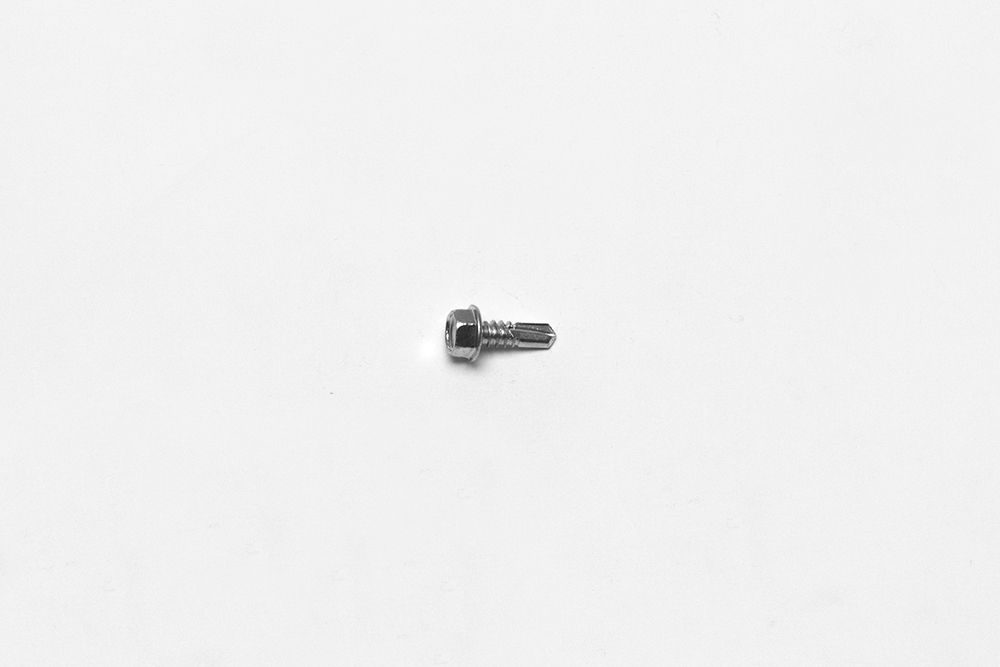

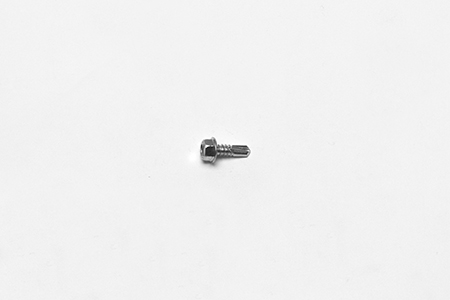

Wilwood Screw-Hex Wilwood Screw-Hex Zoom Image

Bolts

Wilwood’s Hex Screws are manufactured from high strength alloy steel with a zinc plated anti-corrosion finish.



Screw-Hex Description
Type Screw-Hex
Material Steel
Grade
Finish
Weight (oz) 0.010
Bolt Qty 1
Shape
Head Type Hex Head
Drive Type Hex
Length 0.750
Thread 1/4-14
Washer
UPC Number
UPC 889545054064
Notes
Desc 1 SCREW,1/4-14 (#14)x.75 LG,DRILL PT. #3
Desc 2 3/8HEX WASHER HEAD,SELF DRILL,STEEL,ZINC
Cautionary Info

Product Data Sheets
Data Sheet

Screw-Hex Dimensions

Drawing Drawing
Dimensions
Thread Size 1/4-14
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled
Additional Notes
