Bolt Kit-Tee Bolt
Prod #: 230-12096
Price: $29.38

Wilwood Bolt Kit-Tee Bolt Wilwood Bolt Kit-Tee Bolt Zoom Image

Brake Kit Hardware

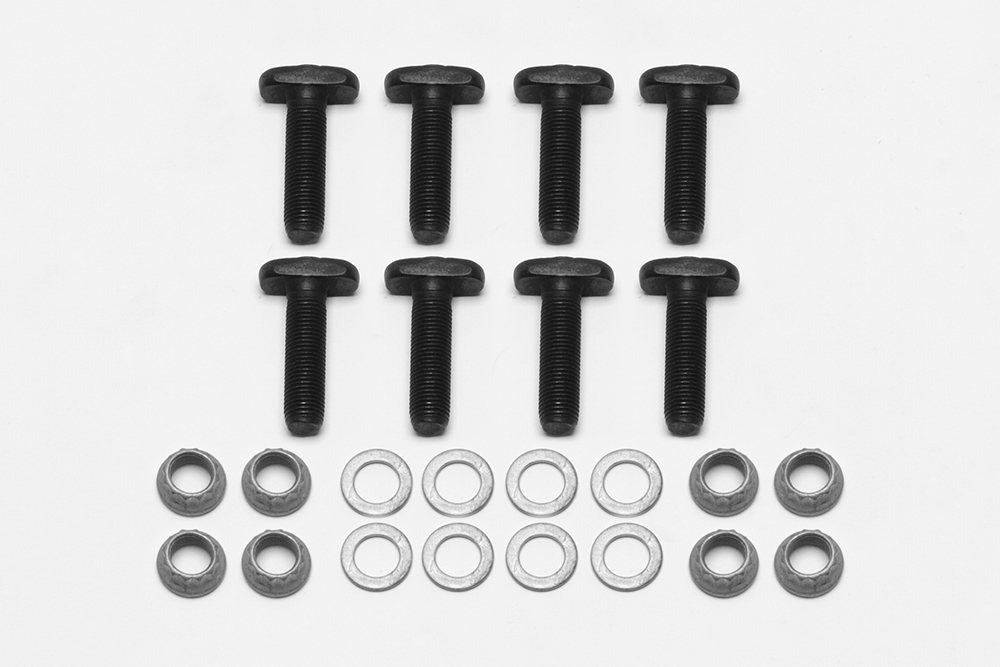

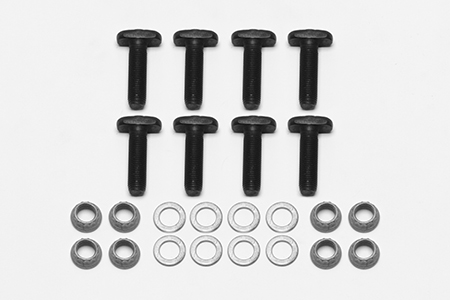

Wilwood’s Tee Bolt kit features 8 quantity 3/8-24 x 1.43" long Tee Bolts, 12 Point Lock Nuts and Washers. Used in rear axle flanges with 3/8 holes. These solve the problem of OEM T-bolts that are not long enough for installation of thicker aftermarket bracket assemblies.



Bolt Kit-Tee Bolt Description
Type Bolt Kit-Tee Bolt
Material Alloy Steel
Grade Grade 8
Finish
Weight (oz) 0.560
Bolt Qty 8
Shape
Head Type Tee
Drive Type
Length 1.437
Thread 3/8-24
Washer
UPC Number
UPC 889545053647
Notes
Desc 1 BOLT KIT,TEE BOLT,3/8-24
Desc 2
Cautionary Info

Product Data Sheets
Data Sheet

Bolt Kit-Tee Bolt Dimensions

Drawing Drawing
Dimensions
Thread Size 3/8-24
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled N
Additional Notes
