Bolt Kit-Rotor
Prod #: 230-10800
Price: $62.35

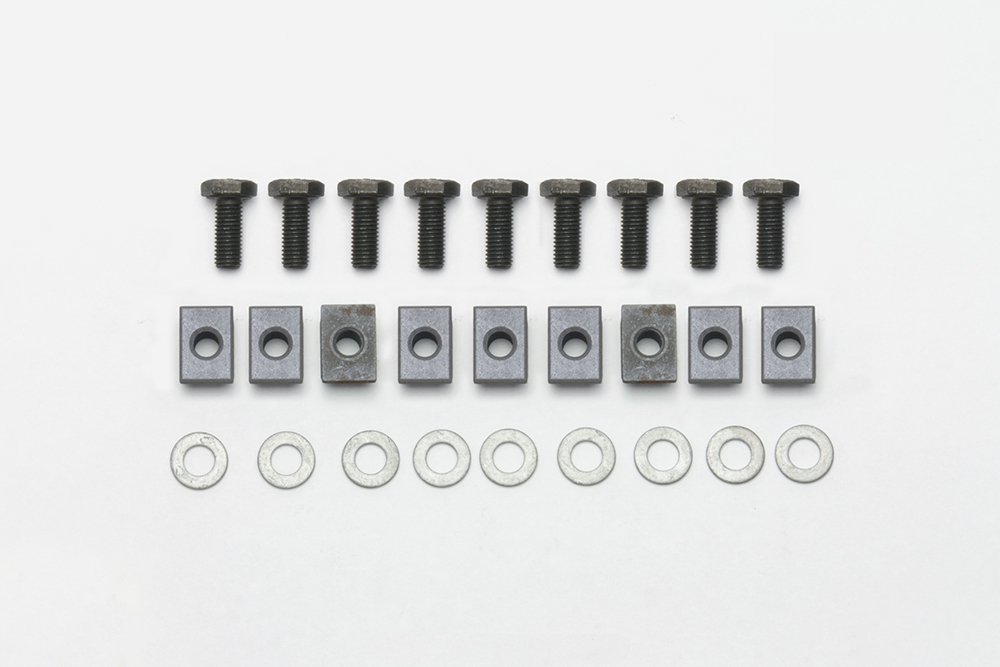

Wilwood Bolt Kit-Rotor Wilwood Bolt Kit-Rotor Zoom Image

Rotor and Hat Hardware

Bolt Kit-Rotor Wilwood’s Dynamic Mount Rotor Bolt kits contain bolts and hardware for dynamic mounting for following specific rotor plate combinations. Rotor 160-10717, Plates 300-10743 and 300-10720



Bolt Kit-Rotor Description
Type Bolt Kit-Rotor
Material Alloy Steel
Grade Grade 8
Finish
Weight (oz) 0.350
Bolt Qty 9
Shape
Head Type Hex Head
Drive Type Hex
Length 0.625
Thread 1/4-28
Washer Flat
UPC Number
UPC 889545052817
Notes
Desc 1 BOLT KIT,ROTOR,DYNAMIC,1/4-28,HHCS,9
Desc 2 BOLT,W/T-NUTS
Cautionary Info

Product Data Sheets
Data Sheet

Click To View

Bolt Kit-Rotor Dimensions

Drawing Drawing
Dimensions
Thread Size 1/4-28
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled N
Additional Notes
