Combination P-Brake Caliper – Part No: 120-10110-rd
Call (805) 388-1188
Combination Parking Brake
Prod #: 120-10110-RD
Price: $259.14
Combination Parking Brake - Product Summary

Pistons
Piston Count 1
Piston Area (in²) 2.06
Piston Type Steel
Dust Boot Yes
Rotor Dimensions
Rotor Width(in) 1
Rotor Diameter(in) 13
Pad Dimensions
Pad Area (in²) 4
Pad Volume (in³) 1.5
Duty Rating & Material
Material Alum / Steel
Weight(Lbs) 6.1
Colors & Finish
Color Red
Finish Red Powder Coat

Mounting
Mount Center(in) 5.98
Mount Position
Mount Side Left Hand
Mount Type Radial
Product Documents
Product Data Sheet

Click To Download
Installation Instructions

120-10110-rd - Product Description

Combination Parking Brake

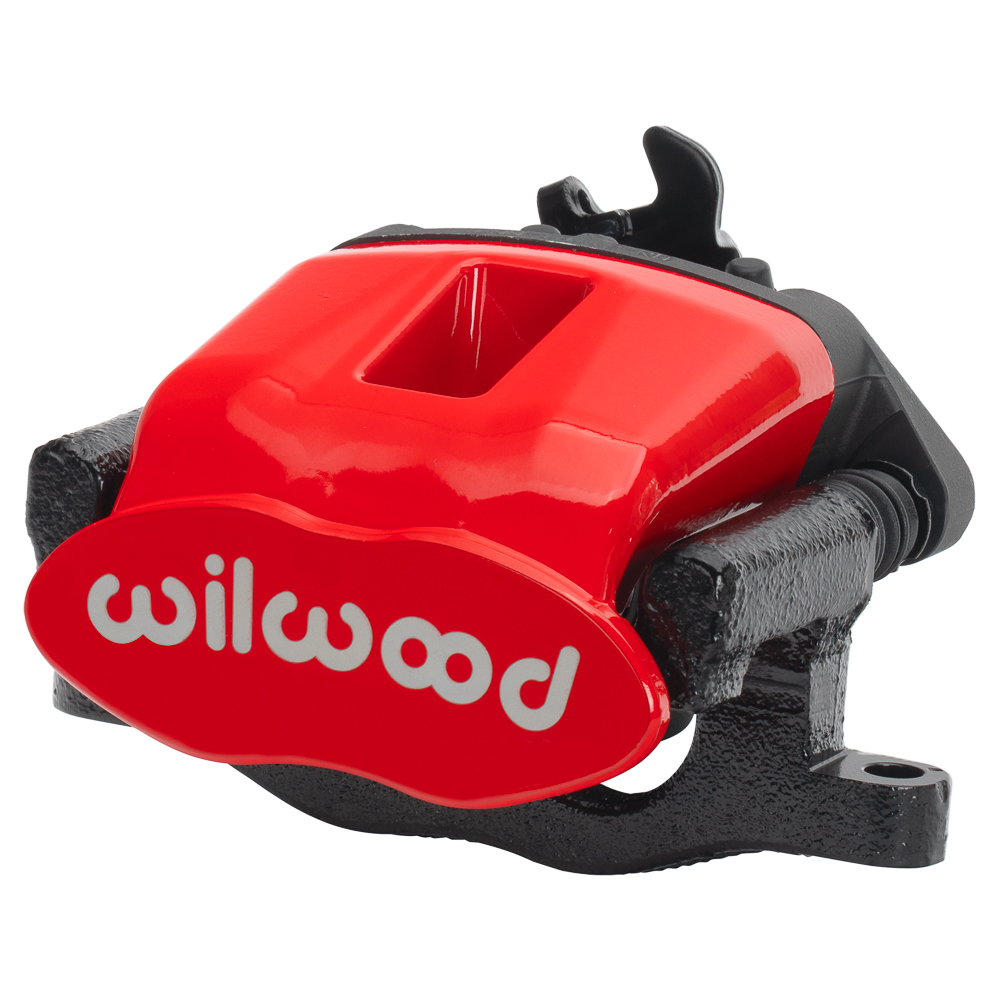

Wilwood's Combination Parking Brake (CPB) Hydra-Mechanical Caliper uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. This redesigned unit provides new options for drum brake conversions and disc upgrades on rear axles that are not conducive to internal shoe systems. This caliper, when matched with the correctly proportionate rotor diameter, provides balanced bias and brake performance for use in conjunction with front wheel brake upgrades.

The CPB is a single piston floating design that attaches to a fixed radial mount bracket. The floating mount allows the caliper to maintain perfect alignment when the cable actuated mechanical parking brake lock is engaged and then released. The floating mount also keeps the caliper in correct alignment over the disc and prevents excessive pad knock-back on c-clip rear axles with measurable side play. As the pads wear, the caliper remains centered over the disc. Radial mounting provides nearly unlimited attachment options. Axle flange brackets can be configured to mount the caliper at any height within the compatible rotor diameter range, or lateral position relative the hat and rotor offset. The caliper is compatible with rotor diameters from 11.00" to 13.00" and is available in two models for either .81" or 1.00" width discs.

The parking brake lock is cable actuated. Connections are made with common cable ends that use a 1/2” cable housing end on the stop bracket, and a 1/8" to 9/64" cable with a crimped or welded ball end. The caliper will accept the OE cable on some vehicles. For other vehicles, new cable ends can be ordered to adapt the caliper to the vehicle's original cable system. For custom installations, aftermarket hand brake kit suppliers can easily configure the cable with the correct attachment end.


Vehicle Applications
Driving Environment Street Rods
Vehicle Sub-Types
Application Duty Heavy Duty
Driving Environment Street Performance
Vehicle Sub-Types Domestic
Application Duty Heavy Duty
Driving Environment Street Performance
Vehicle Sub-Types Import
Application Duty Heavy Duty
Driving Environment Rally
Vehicle Sub-Types
Application Duty Medium Duty
Driving Environment Road Race
Vehicle Sub-Types
Application Duty Medium Duty
Driving Environment Late Model Dirt
Vehicle Sub-Types STARS, UMP, IMCA, etc...
Application Duty Heavy Duty
Driving Environment Drag Racing
Vehicle Sub-Types
Application Duty Heavy Duty
Driving Environment Northeast Modified
Vehicle Sub-Types Dirt or Pavement
Application Duty Medium Duty
Driving Environment Open Wheel
Vehicle Sub-Types Sprint, Midget, etc… Dirt or Pavement
Application Duty Medium Duty
Driving Environment Off Road
Vehicle Sub-Types
Application Duty Medium Duty
Driving Environment Industrial
Vehicle Sub-Types
Application Duty Medium Duty

Product Specifications

Rotor Compatibility
Rotor Width(in) 1
Maximum Rotor Width(in) 0.94
Minimum Rotor Width(in) 1
Maximum Rotor Diameter(in) 13
Minimum Rotor Diameter(in) 11

Brake Pad Specifications
Brake Pad Type 1 D340
Brake Pad Type 2 N-A
Brake Pad Type 3 N-A
Total Pad Area (in²) 4
Total Pad Volume (in³) 1.5
Mount
Piston Specifications
Piston 1 Bore(in) 1.62
Piston 2 Bore(in
Piston 3 Bore(in)
Piston 4 Bore(in)
Total Piston Area (in²) 2.06

Mounting Specifications
Mount Type Radial
Mount Side Left Hand
Mount Center(in) 5.98
Mount Hole Size(in) 0.39
Mount Height(in) 2.08
Inlet Thread Size M10 x 1.00
Pad Dimensions & Part Numbers
Mount Dimensions & Part Numbers

Additional Notes


Parts & Accessories

O-Ring Kit Call
Replacement Dust Boot N-A
Replacement Piston 1 Call
Replacement Piston 2 N-A
Replacement Piston 3 N-A
Replacement Piston 4 N-A
Cross-Over O-Ring Kit N-A
Bridge Bolt Kit N-A
Wear Plate L/H N-A
Wear Plate R/H N-A
Pad Retainer N-A
Bleed Screw Kit N-A
Self Bleeder Tube N-A
Cross-Over Tube N-A
