Search Results Category: mc4 mechanical
MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.11
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 2.00" Floating Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00

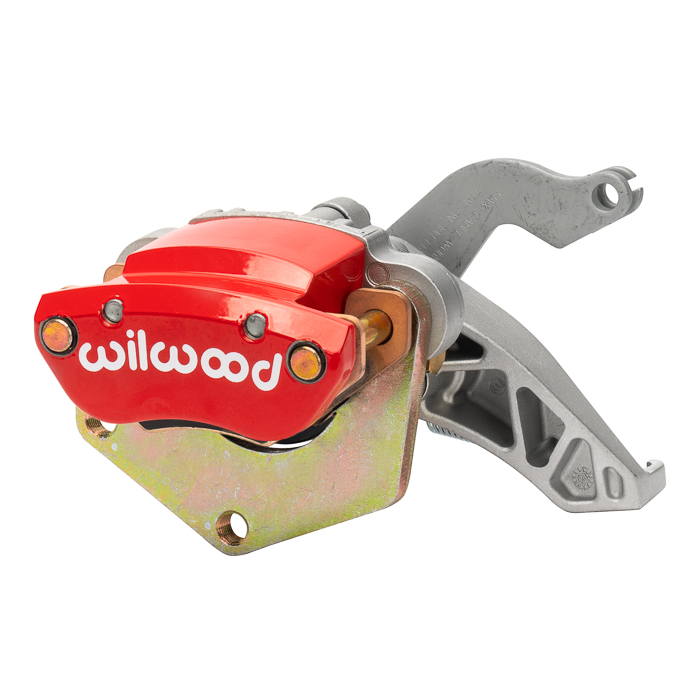

Red Powder Coat MC4 Mechanical Caliper

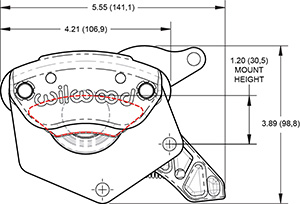

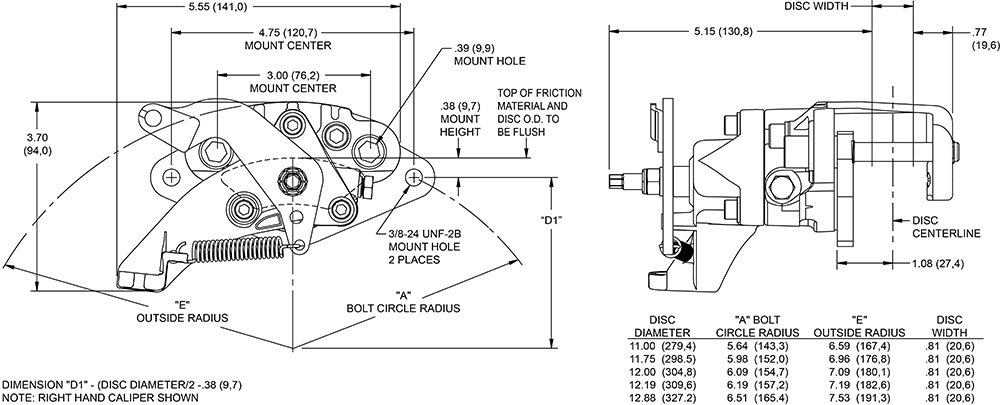

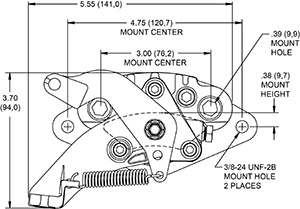

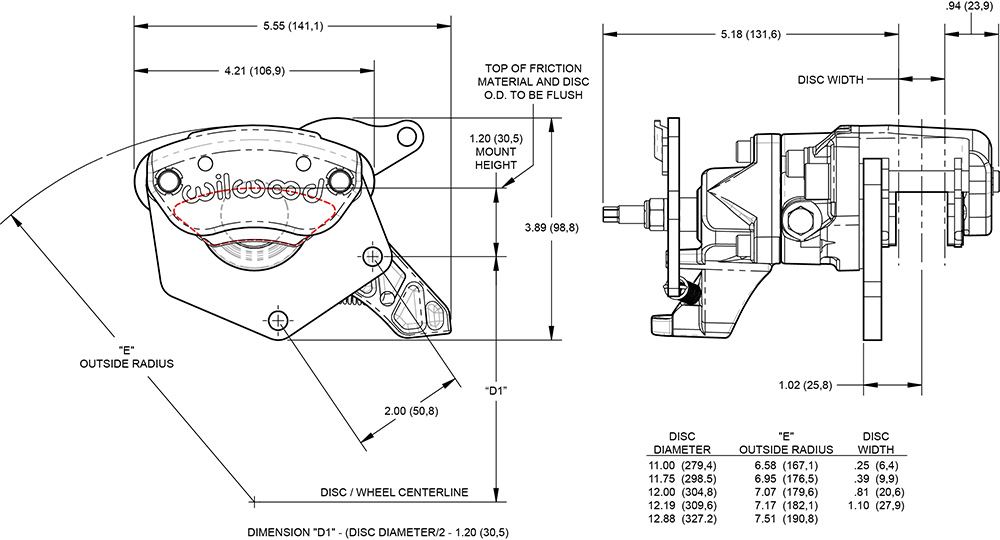

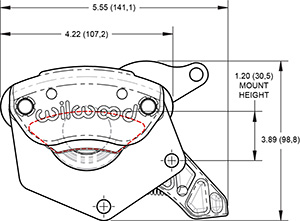

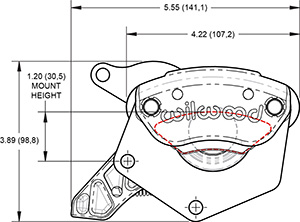

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Ordering Information for MC4 Mechanical
Item No 120-15353-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-15353-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-15354-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-15354-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $208.86
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.11
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00

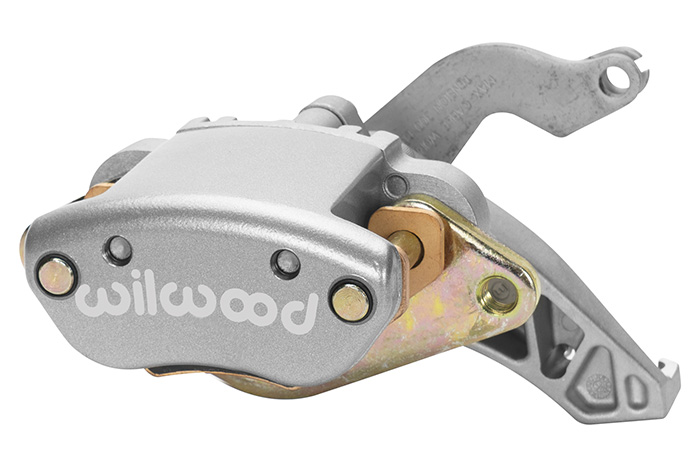

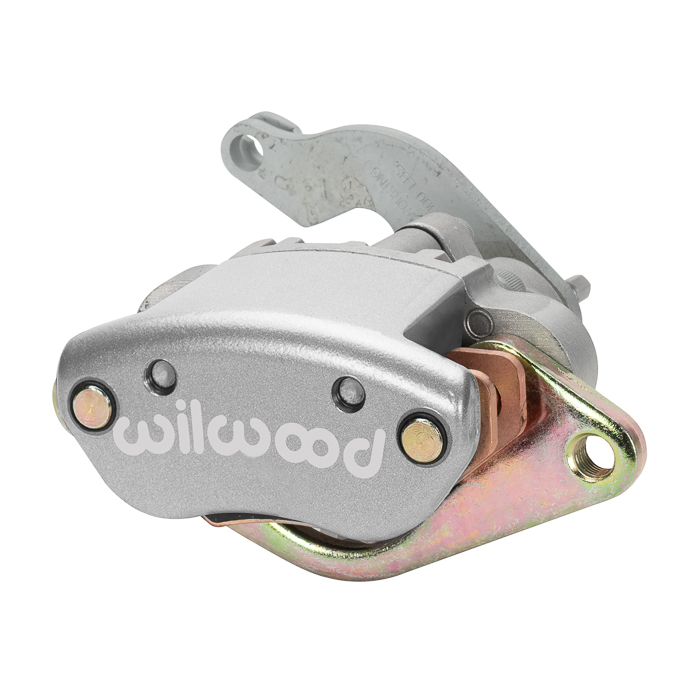

Silver Powder Coat MC4 Mechanical Caliper

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Ordering Information for MC4 Mechanical
Item No 120-12069
Info Details
Mount Location Right Hand
Finish & Color Silver Powder Coat
Price $149.13
Purchase
Call (805) 388-1188
Item No 120-12069-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $149.13
Purchase
Call (805) 388-1188
Item No 120-12069-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $149.13
Purchase
Call (805) 388-1188
Item No 120-12070
Info Details
Mount Location Left Hand
Finish & Color Silver Powder Coat
Price $149.13
Purchase
Call (805) 388-1188
Item No 120-12070-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $149.13
Purchase
Call (805) 388-1188
Item No 120-12070-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $149.13
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.11
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 2.00" Floating Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00

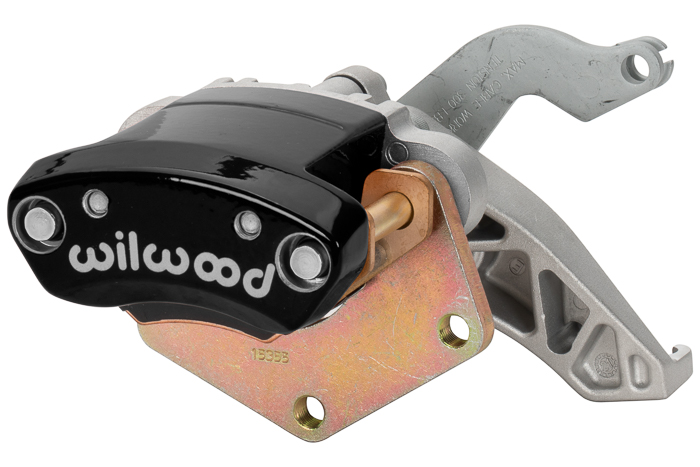

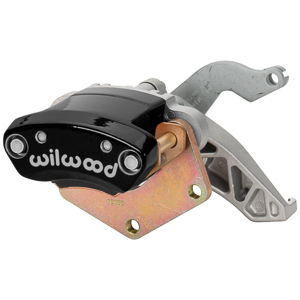

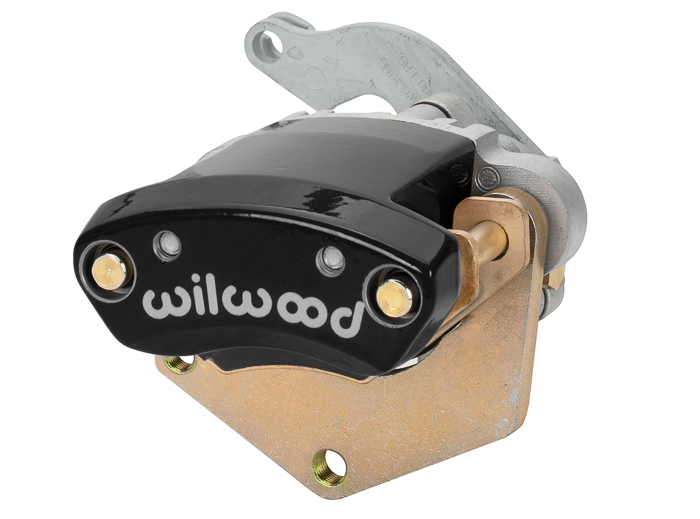

Type III Anodize MC4 Mechanical Caliper

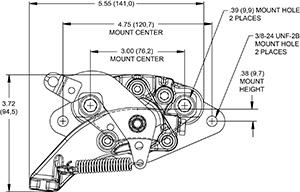

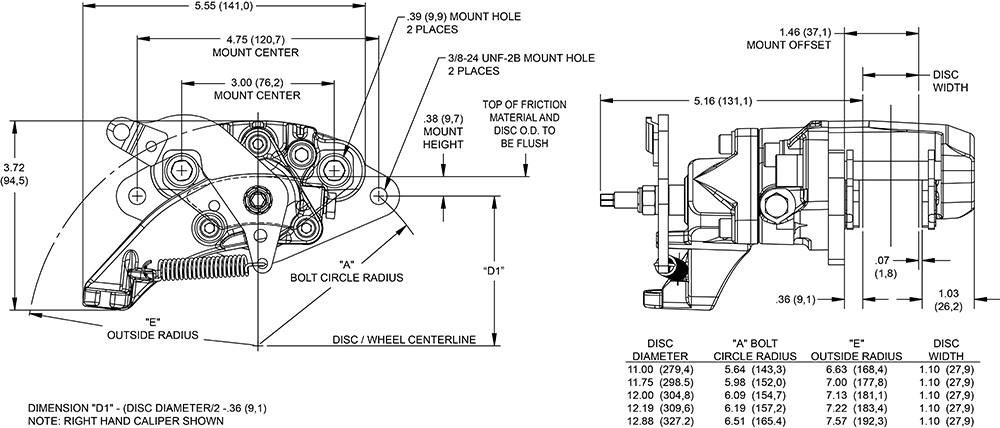

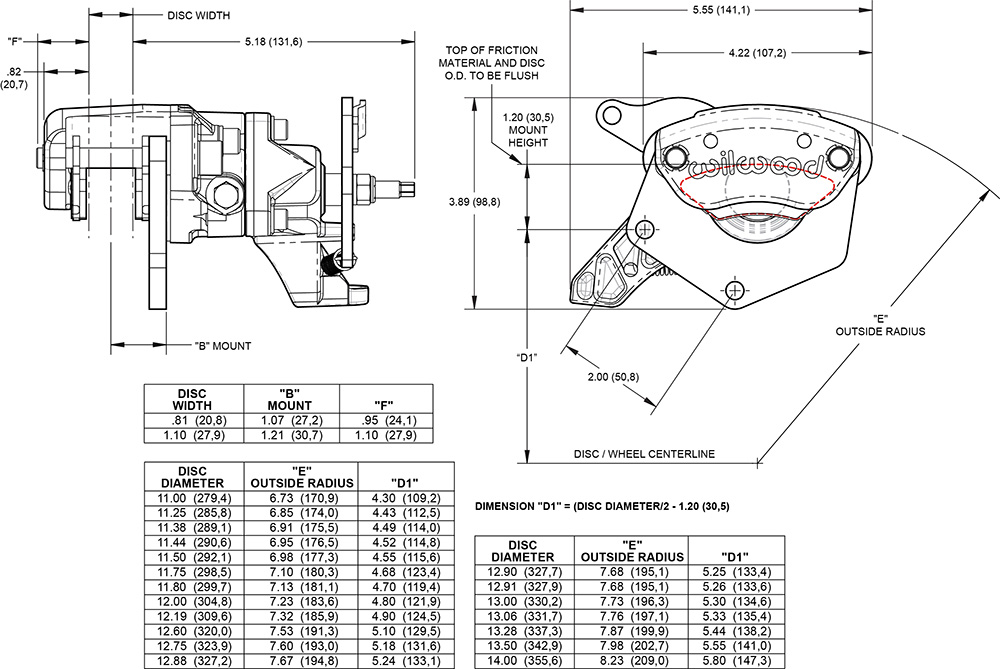

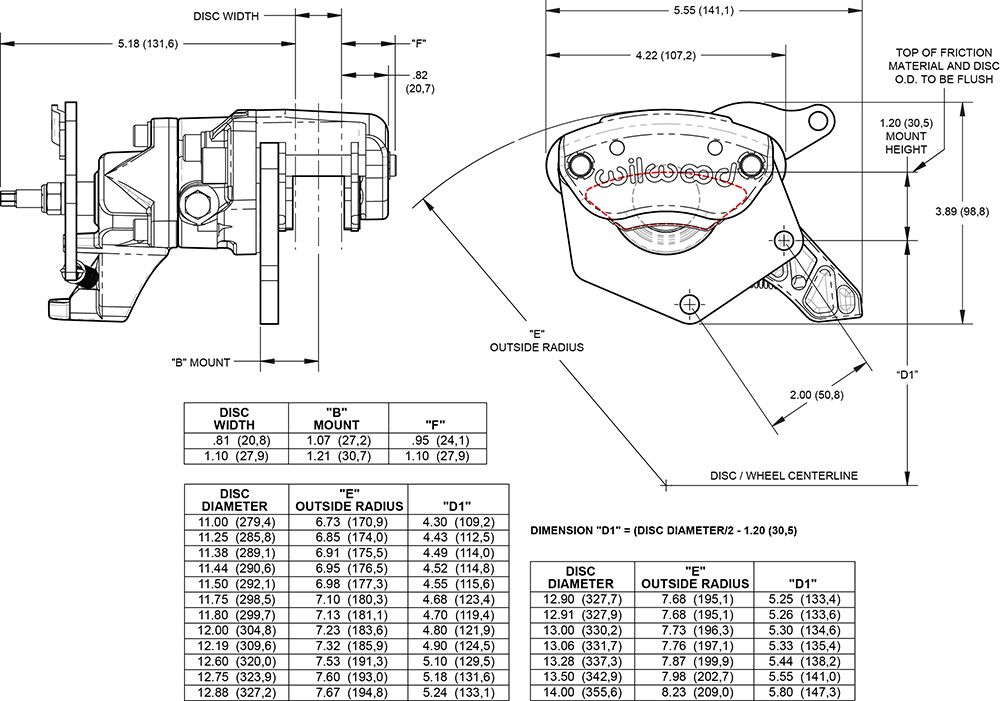

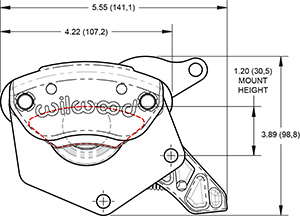

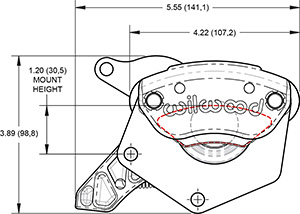

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Ordering Information for MC4 Mechanical
Item No 120-17143
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $231.43
Purchase
Call (805) 388-1188
Item No 120-17143-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $231.43
Purchase
Call (805) 388-1188
Item No 120-17143-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $231.43
Purchase
Call (805) 388-1188
Item No 120-17144
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $231.43
Purchase
Call (805) 388-1188
Item No 120-17144-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $231.43
Purchase
Call (805) 388-1188
Item No 120-17144-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $231.43
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.11
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00

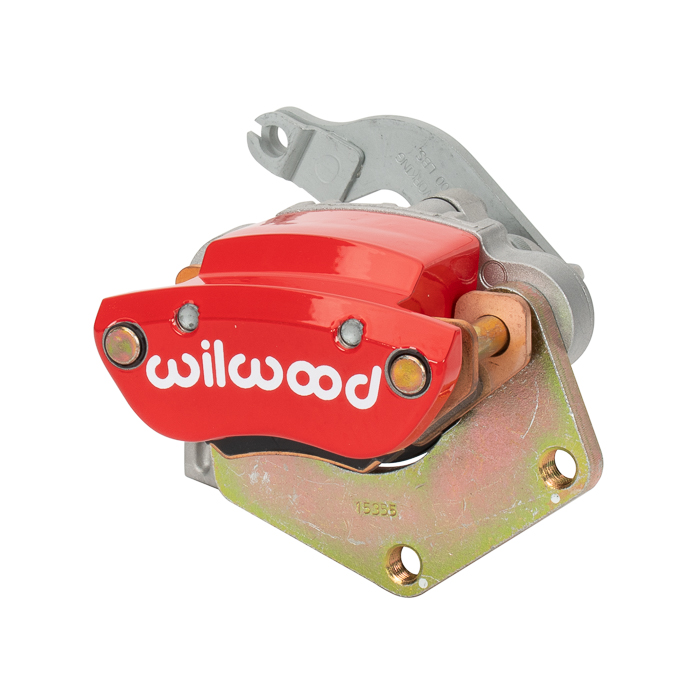

Red Powder Coat MC4 Mechanical Caliper

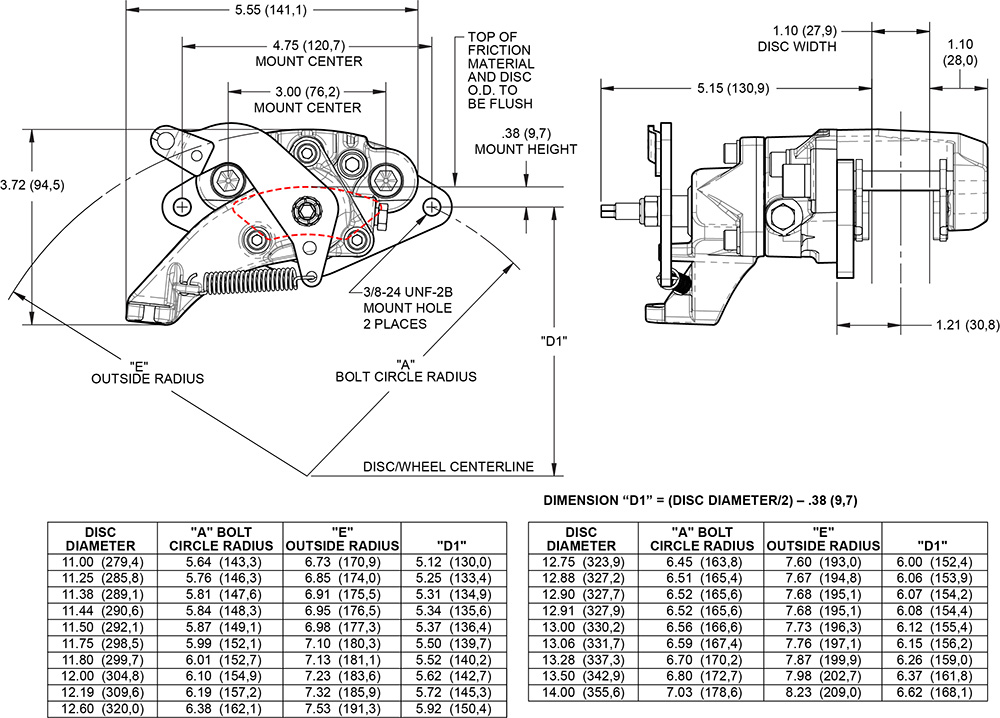

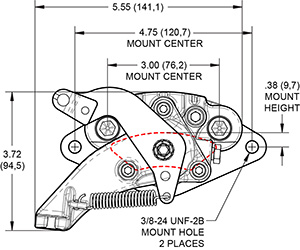

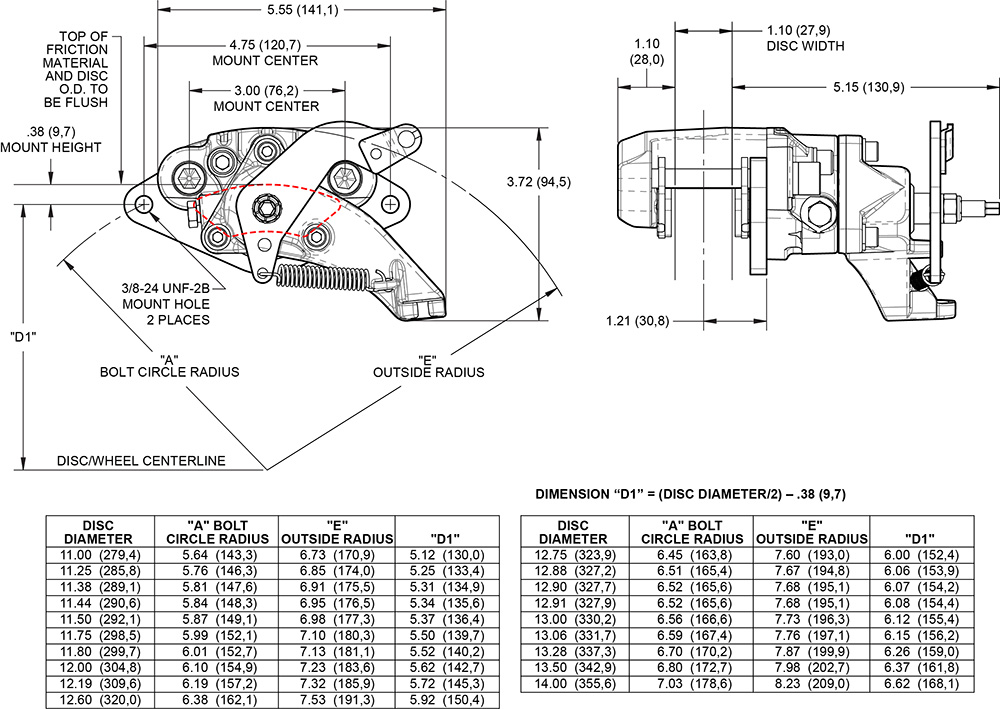

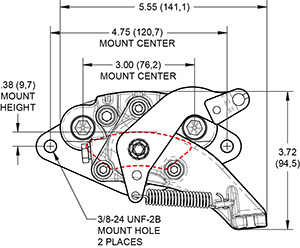

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Ordering Information for MC4 Mechanical
Item No 120-15484-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $190.50
Purchase
Call (805) 388-1188
Item No 120-15484-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $190.50
Purchase
Call (805) 388-1188
Item No 120-15485-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $190.50
Purchase
Call (805) 388-1188
Item No 120-15485-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $190.50
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.11
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 0.25
Max Rotor Dia: 14.00

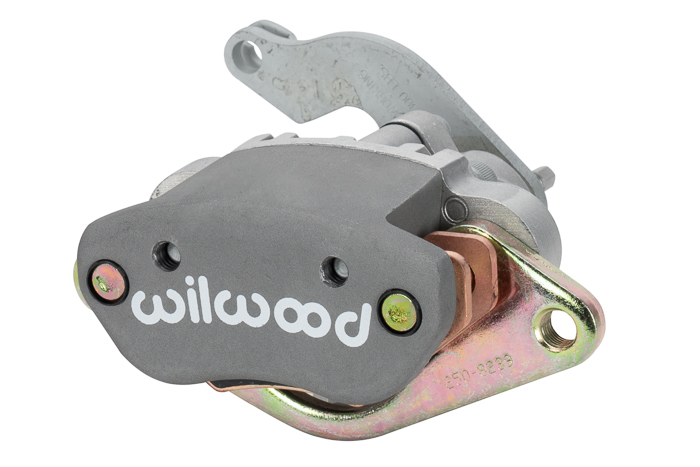

Type III Anodize MC4 Mechanical Caliper

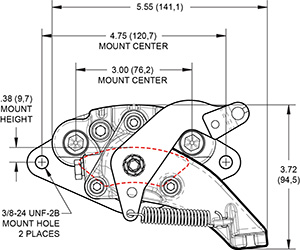

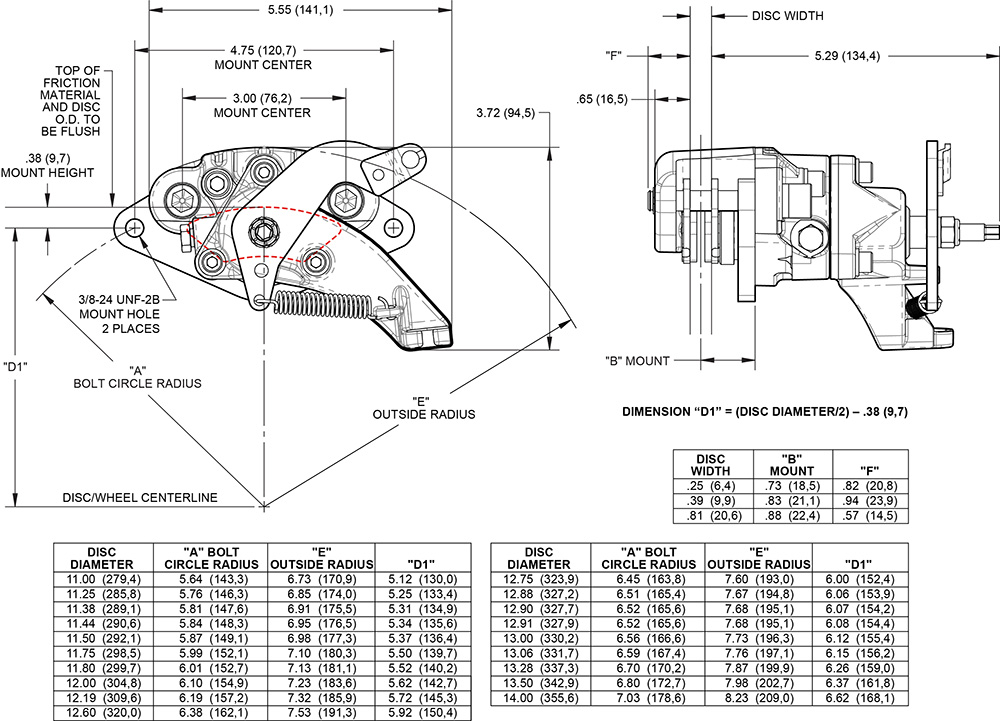

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Ordering Information for MC4 Mechanical
Item No 120-17264
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $149.13
Purchase
Call (805) 388-1188
Item No 120-17265
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $149.13
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.11
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 0.39
Max Rotor Dia: 14.00

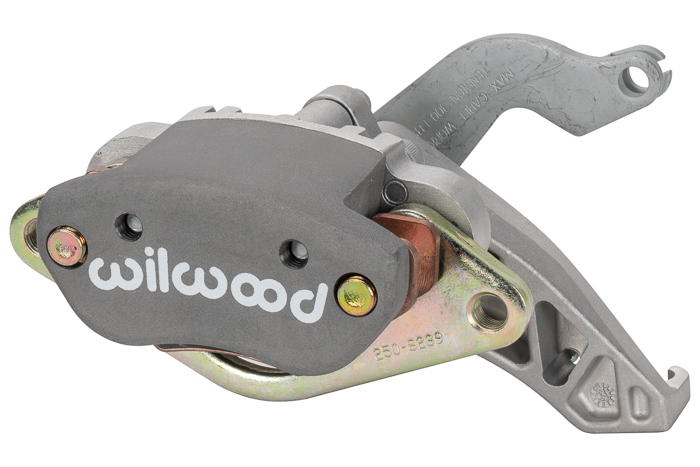

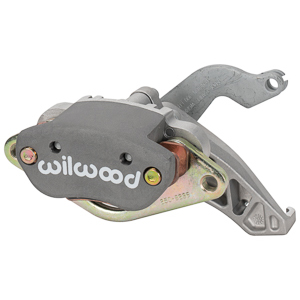

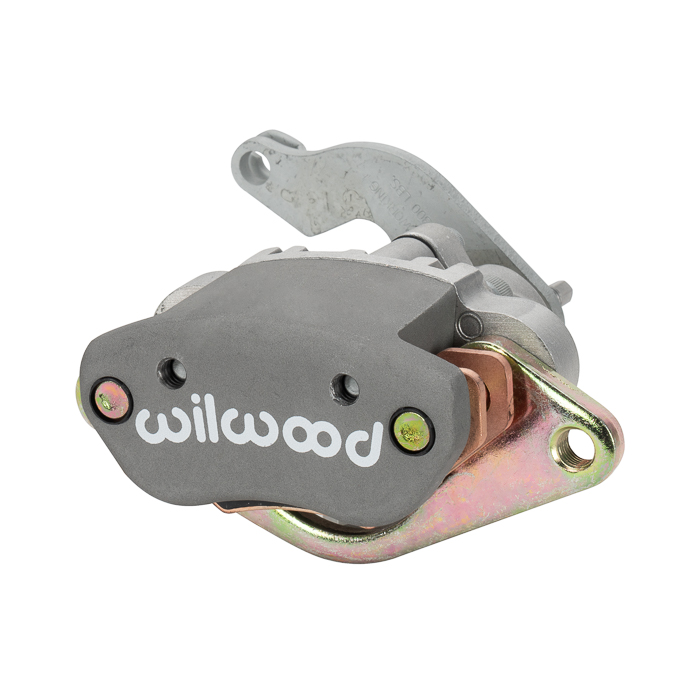

Type III Anodize MC4 Mechanical Caliper

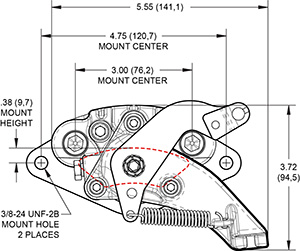

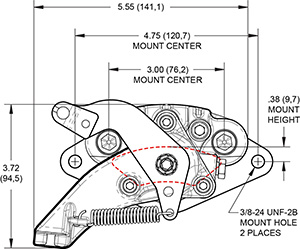

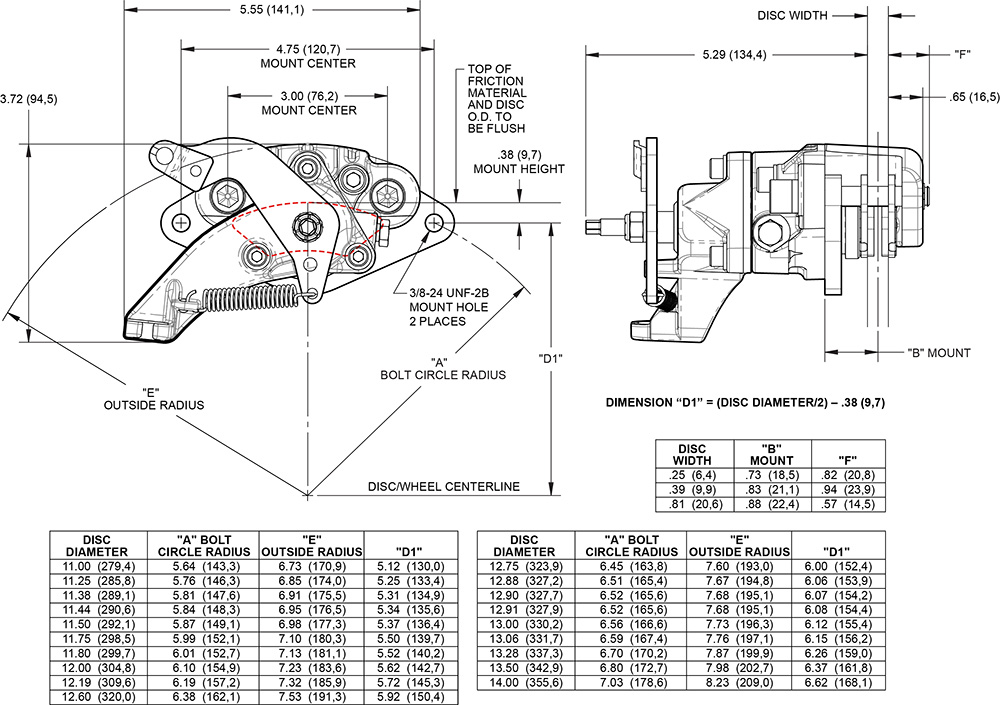

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Ordering Information for MC4 Mechanical
Item No 120-17271
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $171.63
Purchase
Call (805) 388-1188
Item No 120-17272
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $171.63
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.11
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Image Coming Soon

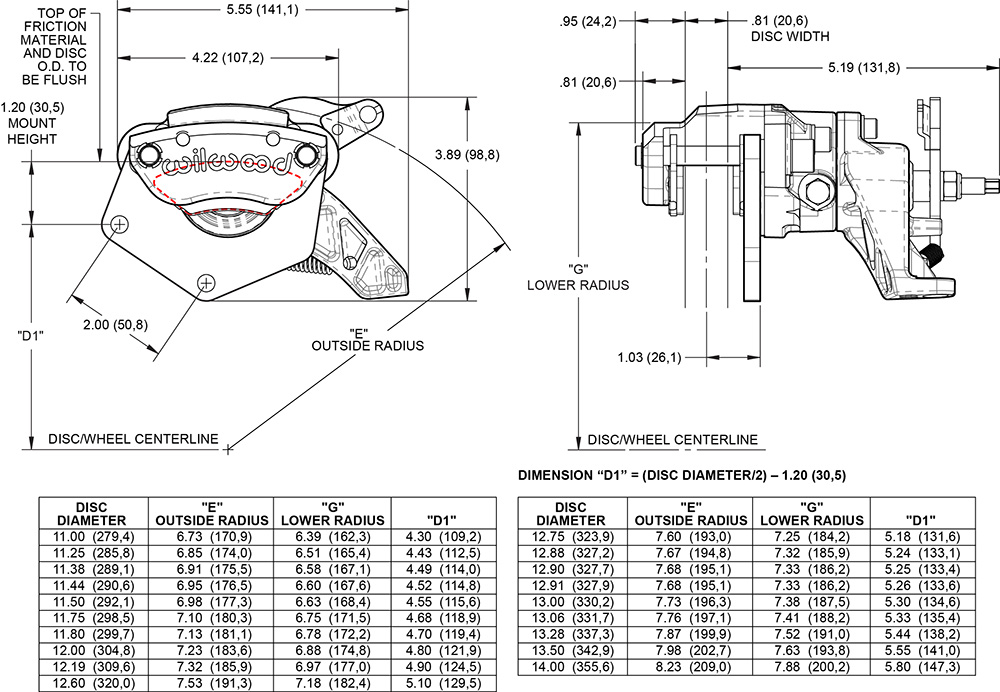

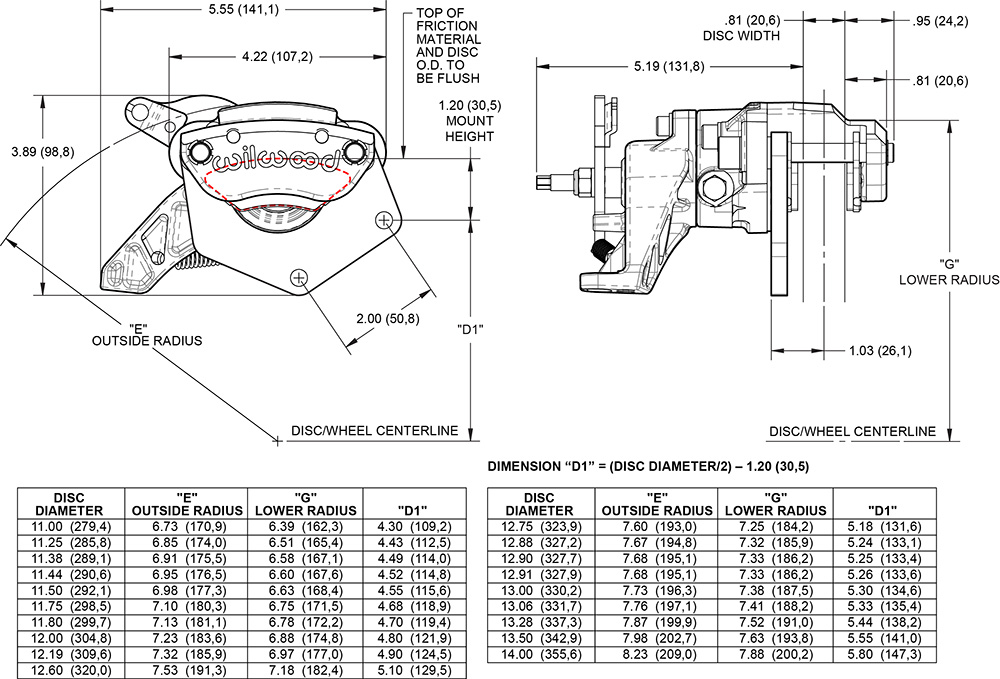

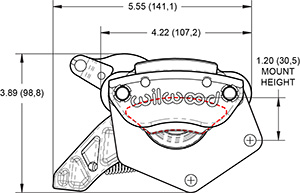

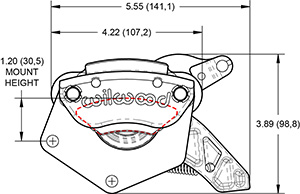

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Ordering Information for MC4 Mechanical
Item No 120-17476
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-17476-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-17476-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-17477
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-17477-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $208.86
Purchase
Call (805) 388-1188
Item No 120-17477-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $208.86
Purchase
Call (805) 388-1188
