Kart Calipers

Search Wilwood Calipers
Select one or any combination of options to filter your search:
Category:
Piston Count:
Rotor Width:
Piston Area:
Finish:
Search Results Category: Kart
Billet Go-Kart
Number Pistons: 2
Piston Type: Stainless
Piston Area: 0.79
Piston 1 Dia: 1.00
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 2.25" Body Mount
Rotor Width: 0.12
Max Rotor Dia: 8.75

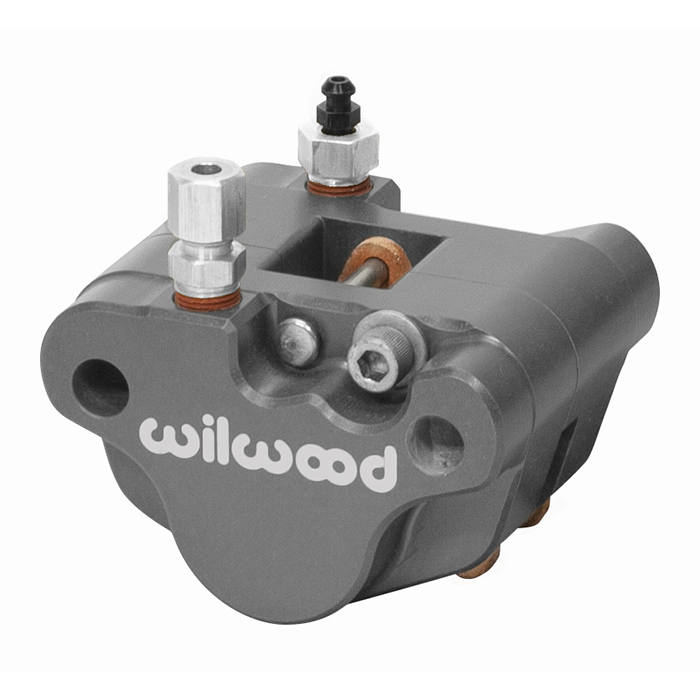

Type III Anodize Billet Go-Kart Caliper

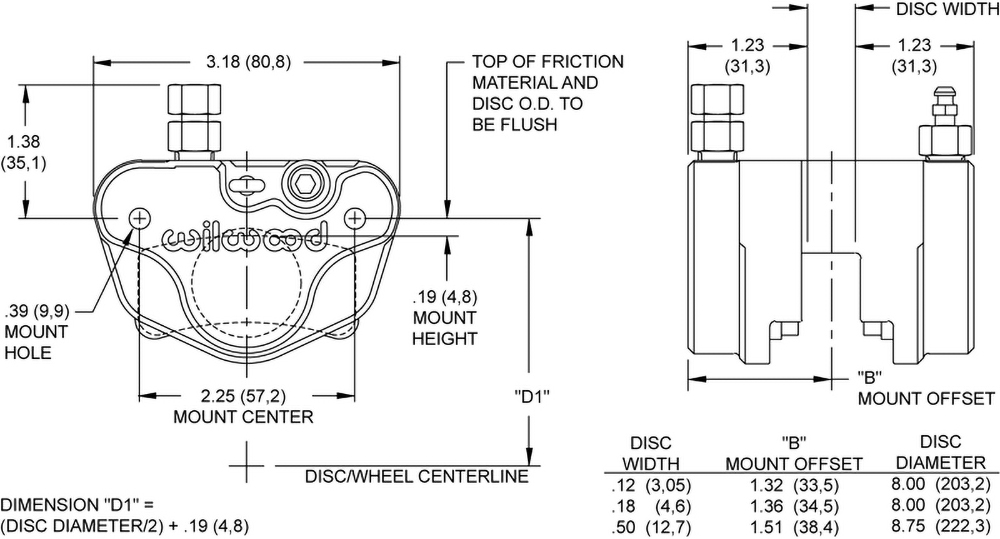

Billet Go-Kart Caliper Drawing Billet Go-Kart Caliper Drawing Zoom Image
Brake Pad Plate # 4308


Billet Go-Kart Description

Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper.

Ordering Information for Billet Go-Kart
Item No 120-5498
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $173.25
Purchase
Call (805) 388-1188

Billet Go-Kart
Number Pistons: 2
Piston Type: Stainless
Piston Area: 0.79
Piston 1 Dia: 1.00
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 2.25" Body Mount
Rotor Width: 0.19
Max Rotor Dia: 8.75
Type III Anodize Billet Go-Kart Caliper

Billet Go-Kart Caliper Drawing Billet Go-Kart Caliper Drawing Zoom Image
Brake Pad Plate # 4308


Billet Go-Kart Description

Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper.

Ordering Information for Billet Go-Kart
Item No 120-5750
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $173.25
Purchase
Call (805) 388-1188
