Forged XRD Lug Mount Calipers

Search Wilwood Calipers
Select one or any combination of options to filter your search:
Category:
Piston Count:
Rotor Width:
Piston Area:
Finish:
Forged XRD Lug Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.80
Piston 1 Dia: 1.75
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.25" Lug Mount
Rotor Width: 0.38
Max Rotor Dia: 13.06
Type III Anodize Forged XRD Lug Mount Caliper

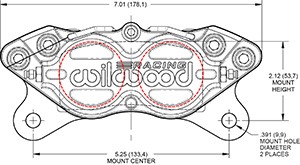

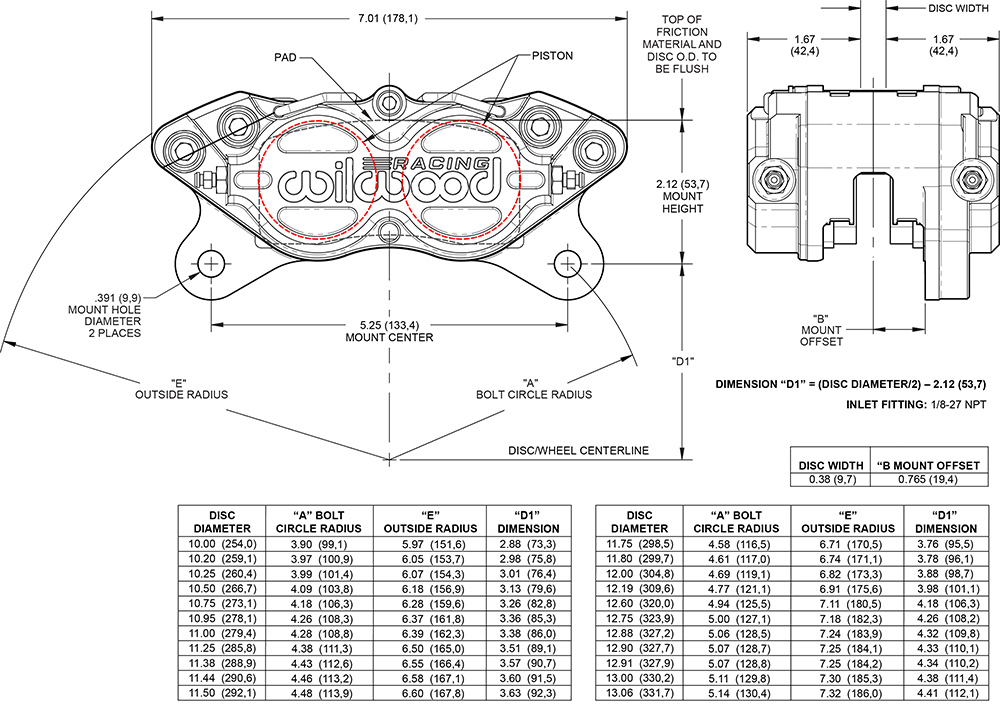

Forged XRD Lug Mount Caliper Drawing Forged XRD Lug Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7812


Forged XRD Lug Mount Description

The XRD Lug Mount forged caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. XRD calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance for competition.

Ordering Information for Forged XRD Lug Mount
Item No 120-17866
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $392.70
Purchase
Call (805) 388-1188
