Forged Narrow Superlite 4 Dust Seal Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 1.98
Piston 1 Dia: 1.12
Piston 2 Dia: 1.12
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00
Red Powder Coat Forged Narrow Superlite 4 Dust Seal Radial Mount Caliper

Forged Narrow Superlite 4 Dust Seal Radial Mount Caliper Drawing Forged Narrow Superlite 4 Dust Seal Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Dust Seal Radial Mount Description

The Forged Narrow Superlite 4R Dust Seal (FNSL4R-DS) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. The addition of Wilwood’s exclusive wiper dust seal allows these calipers to be used in areas that may mandate environmental sealing. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Dust Seal Radial Mount
Item No 120-14438-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $443.44
Purchase
Call (805) 388-1188
Item No 120-14438-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $443.44
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Dust Seal Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00

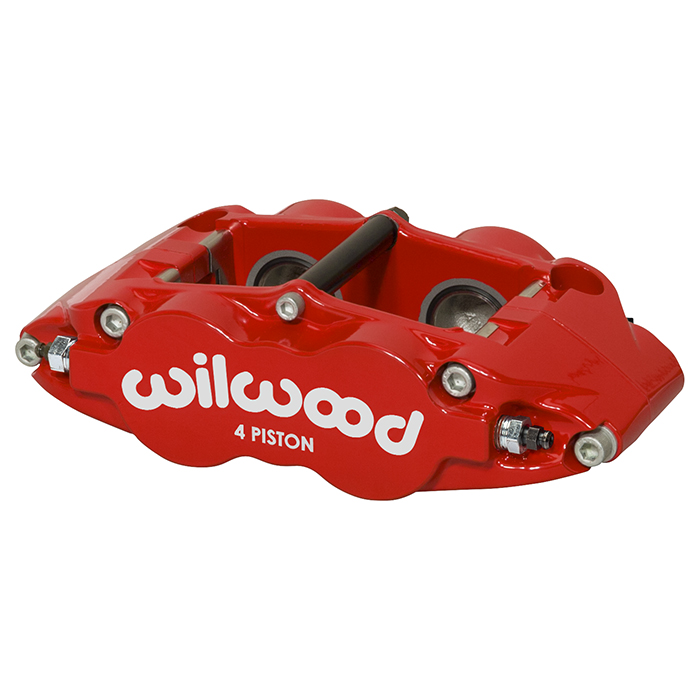

Red Powder Coat Forged Narrow Superlite 4 Dust Seal Radial Mount Caliper

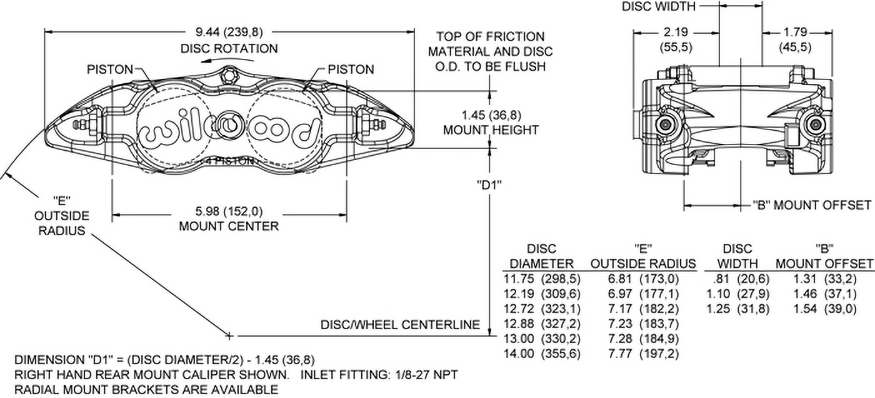

Forged Narrow Superlite 4 Dust Seal Radial Mount Caliper Drawing Forged Narrow Superlite 4 Dust Seal Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Dust Seal Radial Mount Description

The Forged Narrow Superlite 4R Dust Seal (FNSL4R-DS) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. The addition of Wilwood’s exclusive wiper dust seal allows these calipers to be used in areas that may mandate environmental sealing. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Dust Seal Radial Mount
Item No 120-14439-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $443.44
Purchase
Call (805) 388-1188
Item No 120-14439-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $443.44
Purchase
Call (805) 388-1188
