FNSL4R Calipers
Search Wilwood Calipers
Select one or any combination of options to filter your search:
Category:
Piston Count:
Rotor Width:
Piston Area:
Finish:
Search Results Category: FNSL4R
Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 1.98
Piston 1 Dia: 1.12
Piston 2 Dia: 1.12
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00

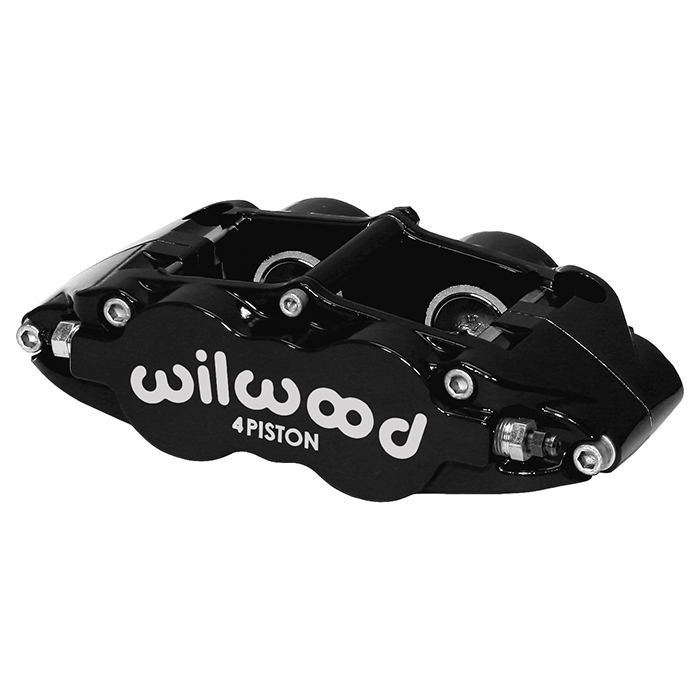

Type III Anodize Forged Narrow Superlite 4 Radial Mount Caliper

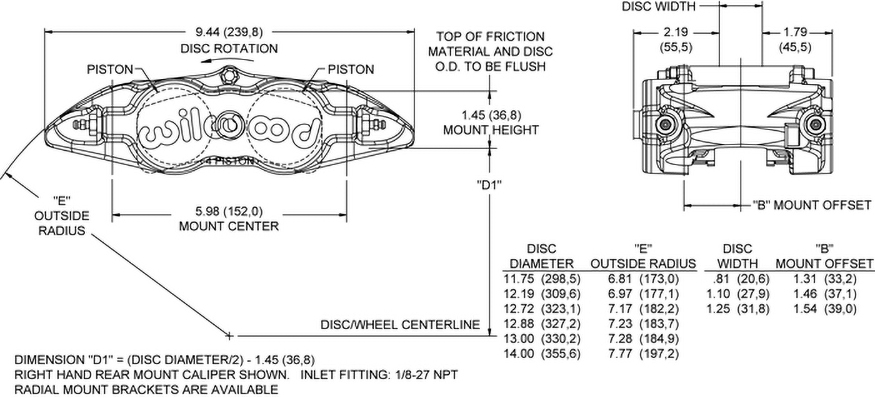

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-11876
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11876-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11876-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $374.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 1.98
Piston 1 Dia: 1.12
Piston 2 Dia: 1.12
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00
Yellow Powder Coat Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-11782
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11782-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11782-P
Info *New* Details
Mount Location Universal
Finish & Color Polish
Price $594.67
Purchase
Call (805) 388-1188
Item No 120-11782-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11782-Y
Info *New* Details
Mount Location Universal
Finish & Color Yellow Powder Coat
Price $374.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00
Type III Anodize Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-11783
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11783-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11783-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $374.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00

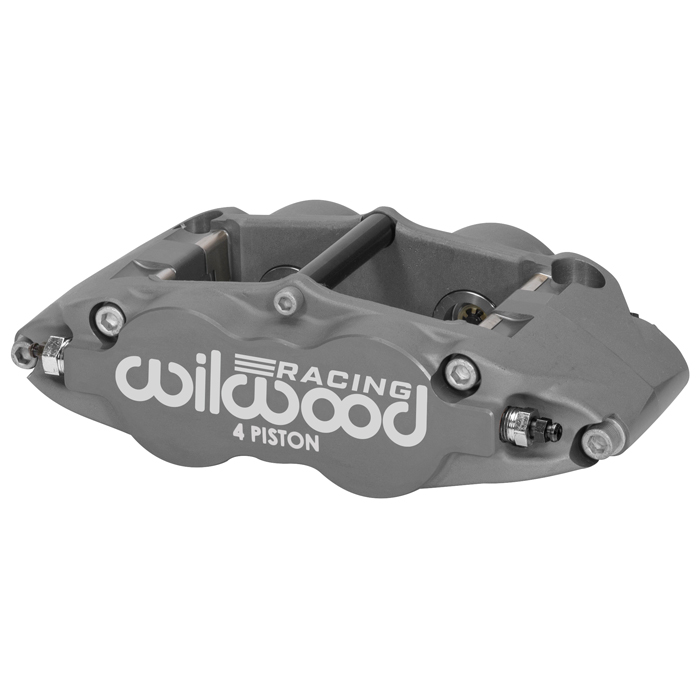

Type III Anodize Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


Forged Narrow Superlite 4 Radial Mount Description

FNSLR/ST forged billet calipers, with four Thermlock pistons, deliver championship proven performance with piston sizes to provide matched rear braking bias for use with the Aero6/ST or other larger piston front calipers. FNSL4R/ST calipers incorporate race technology into a radial mount body design with widespread adaptability. Including competition update options for all FNSL4R rear Big Brake kits. Thermlock pistons, high-temp seals, SRS bridge plates, and two-piece bleed screw assemblies are standard in all calipers. Four high-temp race only brake pad compounds in the 7416 pad type allow precise tuning of the brake response, friction requirements and temperature range.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-12602
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $547.39
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Yellow Powder Coat Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-14055
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-14055-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-14055-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-14055-Y
Info *New* Details
Mount Location Universal
Finish & Color Yellow Powder Coat
Price $374.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.95
Max Rotor Dia: 14.00
Yellow Powder Coat Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-16683
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $404.14
Purchase
Call (805) 388-1188
Item No 120-16683-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $404.14
Purchase
Call (805) 388-1188
Item No 120-16683-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $404.14
Purchase
Call (805) 388-1188
Item No 120-16683-Y
Info *New* Details
Mount Location Universal
Finish & Color Yellow Powder Coat
Price $404.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00
Yellow Powder Coat Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-14056
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-14056-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-14056-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-14056-Y
Info Details
Mount Location Universal
Finish & Color Yellow Powder Coat
Price $374.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.80
Piston 1 Dia: 1.75
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00
Red Powder Coat Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-11784-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-11784-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $374.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.80
Piston 1 Dia: 1.75
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Red Powder Coat Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Forged Narrow Superlite 4 Radial Mount Description

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-12501-BK
Info *New* Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $374.14
Purchase
Call (805) 388-1188
Item No 120-12501-RD
Info *New* Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $374.14
Purchase
Call (805) 388-1188

Forged Narrow Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 1.98
Piston 1 Dia: 1.12
Piston 2 Dia: 1.12
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00
Type III Anodize Forged Narrow Superlite 4 Radial Mount Caliper

Forged Narrow Superlite 4 Radial Mount Caliper Drawing Forged Narrow Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


Forged Narrow Superlite 4 Radial Mount Description

FNSLR/ST forged billet calipers, with four Thermlock pistons, deliver championship proven performance with piston sizes to provide matched rear braking bias for use with the Aero6/ST or other larger piston front calipers. FNSL4R/ST calipers incorporate race technology into a radial mount body design with widespread adaptability. Including competition update options for all FNSL4R rear Big Brake kits. Thermlock pistons, high-temp seals, SRS bridge plates, and two-piece bleed screw assemblies are standard in all calipers. Four high-temp race only brake pad compounds in the 7416 pad type allow precise tuning of the brake response, friction requirements and temperature range.

Ordering Information for Forged Narrow Superlite 4 Radial Mount
Item No 120-12603
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $547.39
Purchase
Call (805) 388-1188
