Billet Narrow Superlite 6 Lug Mount
Number Pistons: 6
Piston Type: Stainless
Piston Area: 4.04
Piston 1 Dia: 1.62
Piston 2 Dia: 1.12
Piston 3 Dia: 1.12
Mount Description: 3.50" Lug Mount
Rotor Width: 1.10
Max Rotor Dia: 14.00
Red Powder Coat Billet Narrow Superlite 6 Lug Mount Caliper

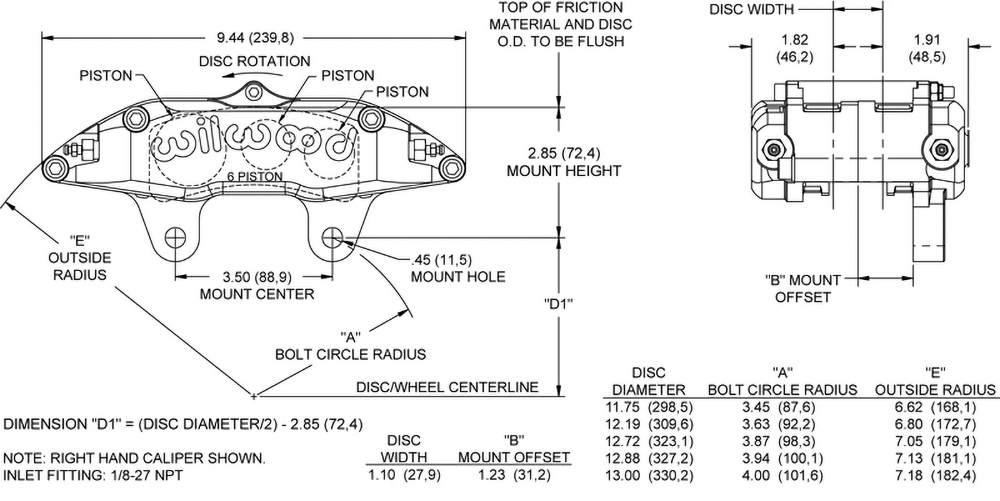

Billet Narrow Superlite 6 Lug Mount Caliper Drawing Billet Narrow Superlite 6 Lug Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7416


View Custom Caliper Colors

Billet Narrow Superlite 6 Lug Mount Description

The 2nd generation of the Narrow SL6 series has been redesigned with Wilwood’s latest technology. High strength Billet bodies with internal crossover passages allow the calipers to mount in either front or rear of spindle applications with same part number. With Same 3.50" centered lug mounting of original Narrow Superlite caliper. Each caliper is precision CNC machined from high strength Billet Forging with a re-profiled outer body that enhances wheel clearance and appearance. Calipers are available in Black, Red powder coat and a show quality polished finish to compliment any application.

Ordering Information for Billet Narrow Superlite 6 Lug Mount
Item No 120-13382-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $443.44
Purchase
Call (805) 388-1188
Item No 120-13382-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $443.44
Purchase
Call (805) 388-1188
Item No 120-13383-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $443.44
Purchase
Call (805) 388-1188
Item No 120-13383-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $443.50
Purchase
Call (805) 388-1188
