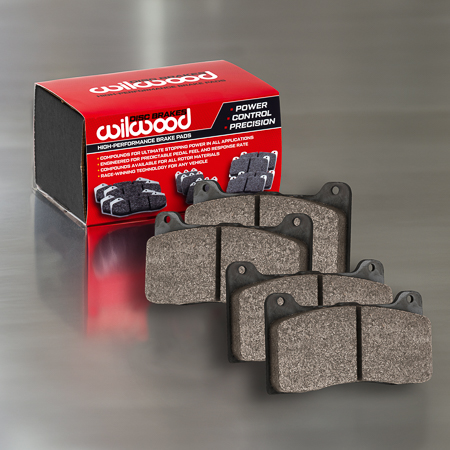

Brake Pad Part No: 150-9136k

Street Performance / Racing Pads

Pad#: 7812
Compound: BP-10
Prod #: 150-9136K
Price: $61.59
BP-10
BP-10 Brake Pads Plate Type
Pad Dimensions
Thickness(in) .49
Area(in²) 6.36
Volume(in³) 2.1
Bedded N
UPC Number
UPC 889545033434
Dust & Noise Ratings
Dust Production Rating Low
Pad Noise Rating Low
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
NSF Int’l LeafMark certified friction formulation.Compliant with SAE J661 industry standards.

BP-10 Compound

Pad Characteristics

  • Medium friction pad
  • Gradual response, low wear rate on iron rotors
  • Low to medium wear rate at low temperatures
  • Low dust and noise
  • High performance street compound with improved friction, lower wear and lower dust levels than standard replacement pads

Pad Applications

  • Street use okay
  • Street
  • Muscle cars
  • Drag race
  • Light to medium braking on dirt including late models and modified

Rotor Material

  • Steel
  • Iron
BP-10 Performance Stats BP-10 Performance Stats Zoom Image
BP-10 Friction Coefficient and Temperature Values BP-10 Friction Coefficient and Temperature Values Zoom Image

The above friction data (μ) was recorded through braking cycles from 95 mph to 40 mph at a 0.5g deceleration. Snubs were consecutively done until rotor temperature reached 1300°F. This graph represents average data and is for general trend visualisations only comparing Wilwood pads. Chart data should not be used in comparison with other manufacturer's data. Test conditions, variables, and environment can affect test results.

Temperature range and overall friction value are the primary considerations for pad selection. The pads must maintain the proper amount of friction for stopping power within the temperatures that will be realized on the track. Overall wear rate must also be considered. For most asphalt and road race applications, compounds in the high-temperature range over 1000°F are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If pad fade (friction loss) due to overheating occurs, improved cooling, a heavier rotor, or a higher temperature range pad may become necessary.

Wilwood Compatible Caliper(s) for Pad #7812

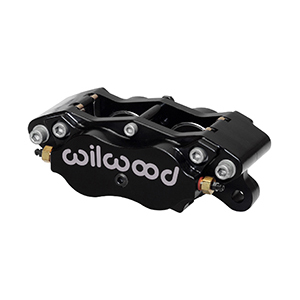

Billet Dynalite - Side Inlet
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 1.27
Max Rotor Diameters (in) 13.06

Billet Dynalite - Side Inlet Calipers

The Billet Dynalite caliper is powerful, compact and super lightweight. Advanced computer engineering keeps this caliper extremely rigid, resulting in incredible brake torque at a bare minimum in weight, starting at 2.66 pounds. Internal fluid crossover eliminates external tubes and the four position, two-piece bleed screws allow for convenient mounting and easy bleeding. The Billet Dynalite uses standard quick change Dynalite pads, deep cup stainless steel pistons and high temperature seals, and has a black anodized finish. The time proven Dynalite caliper design is stronger and lighter than ever - ideal for Late Models, Modifieds, Sprints, Road Racers and Dragsters. View Billet Dynalite Calipers
Dynapro Dust-Boot
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00 - 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 1.04
Max Rotor Diameters (in) 13.06

Dynapro Dust-Boot Calipers

The Dynapro Dust-Boot (DP-DB) model of the Dynapro lug mount caliper was developed for applications that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The pistons are clear anodized to eliminate corrosion while providing added lubricity for drag-free operation within the bores. The dust boots work in conjunction with high-temperature square faced internal seals in the caliper bores to provide optimum performance, ultimate reliability, and quick turn around at pad service intervals. View Dynapro Dust-Boot Calipers

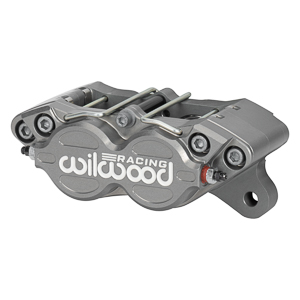

Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.83
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.83
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.83
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 1.58 - 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 1.27
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount-ST
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.83
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount-ST Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount-ST
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.83
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount-ST Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Narrow
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.42
Max Rotor Diameters (in) 13.06

Dynapro Narrow Calipers

The DynaPro Narrow Lug Mount (DPN) forged billet caliper represents the newest version of calipers available with narrower outboard clearance. DPN calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance. Available in Wilwood’s Type III anodize or enhanced with black or red powder coat finish. View Dynapro Narrow Calipers
Forged DPHA
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.12
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.83
Max Rotor Diameters (in) 10.32

Forged DPHA Calipers

The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15” wheels. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black, red or Competition Blue high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo. View Forged DPHA Calipers
Narrow Dynapro Radial Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 1.98
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.86
Max Rotor Diameters (in) 12.88

Narrow Dynapro Radial Mount Calipers

Wilwood Narrow Dynapro four piston radial mount calipers combine the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the Dynapro has become a favored choice for a broad range of sports, rally, and off-road driving applications. Narrow Dynapro four piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements. View Narrow Dynapro 4 Piston Radial Mount Calipers
Narrow Dynapro Radial Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 12.19

Narrow Dynapro Radial Mount Calipers

Wilwood Narrow DynaPro four piston radial mount calipers combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the DynaPro has become a favored choice for a broad range of sports, rally, and off-road driving applications. View Narrow Dynapro 4 Piston Radial Mount Calipers
Narrow Dynapro Radial Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46 - 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.86
Max Rotor Diameters (in) 12.19

Narrow Dynapro Radial Mount Calipers

Wilwood Narrow DynaPro four piston radial mount calipers combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the DynaPro has become a favored choice for a broad range of sports, rally, and off-road driving applications. View Narrow Dynapro 4 Piston Radial Mount Calipers
Narrow Dynapro Radial Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 12.19

Narrow Dynapro Radial Mount Calipers

Wilwood Narrow DynaPro four piston radial mount calipers combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the DynaPro has become a favored choice for a broad range of sports, rally, and off-road driving applications.Narrow DynaPro four piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements. The Narrow DynaPro combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. View Narrow Dynapro 4 Piston Radial Mount Calipers
UTV4 Caliper
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 1.98
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.25

UTV4 Caliper Calipers

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads. View UTV4/6 Calipers
UTV4 Caliper
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 1.58
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.25

UTV4 Caliper Calipers

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads. View UTV4/6 Calipers
UTV4 Caliper
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.25

UTV4 Caliper Calipers

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads. View UTV4/6 Calipers
UTV6 Caliper
Caliper Dimensions
Piston Count 6
Piston Area Range (in²) 2.77
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.25

UTV6 Caliper Calipers

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads. View UTV4/6 Calipers
UTV6 Caliper
Caliper Dimensions
Piston Count 6
Piston Area Range (in²) 3.21
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.25

UTV6 Caliper Calipers

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads. View UTV4/6 Calipers
UTV6 Caliper
Caliper Dimensions
Piston Count 6
Piston Area Range (in²) 2.37
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.25

UTV6 Caliper Calipers

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads. View UTV4/6 Calipers
UTV6 Caliper
Caliper Dimensions
Piston Count 6
Piston Area Range (in²) 2.37
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.25

UTV6 Caliper Calipers

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads. View UTV4/6 Calipers
