Front Brake Kit – Part No: 140-14190
Call (805) 388-1188
Classic Series Forged Superlite 4 Front Brake Kit
Prod #: 140-14190
Price: $783.99

*NOTE: Brake Line Kit 220-10509 is included in this Brake Kit.
Front Brake Kit — 140-14190

Kit Summary
OE Hub Offset: -0.06
(Increase / Decrease Track Width)
Spindle Type: Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Black Anodize
Rotor Diameter: 11.72
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

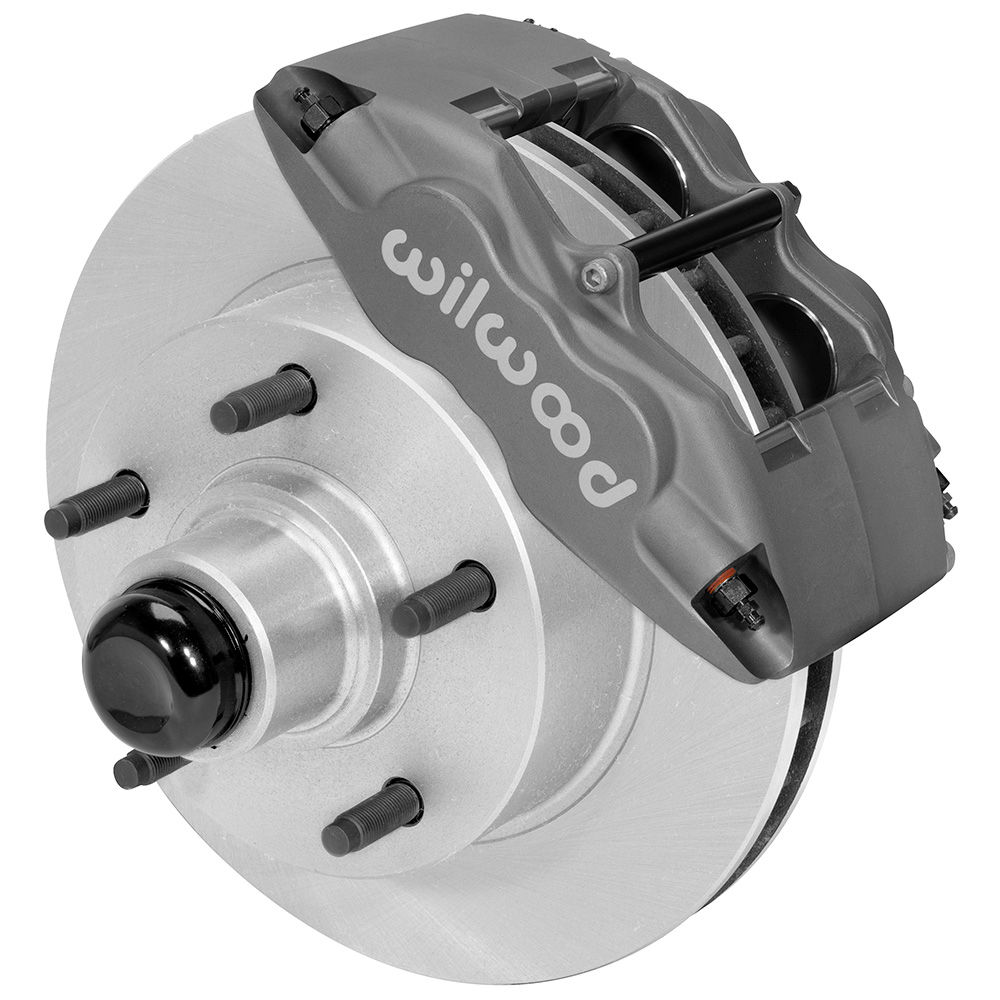

Classic Series Forged Superlite 4 Front Brake Kit

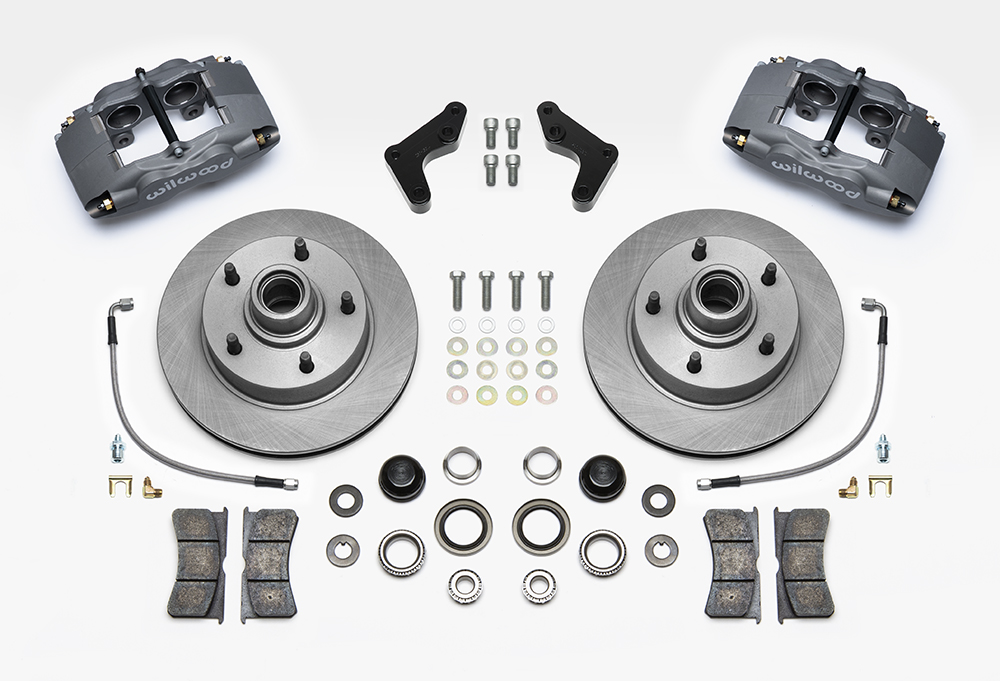

Wilwood's Classic Series front disc brake kits for Ford Trucks from 1948 to 1956, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece 11.72" x 1.19” rotor and hub assembly with a 5 x 5.50" wheel bolt circle. Based on the venerable Forged Billet Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FSL4 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, hardware and line kit.

Ford F-1 Truck Front Disc Brake Install

Fitment & Installation Details

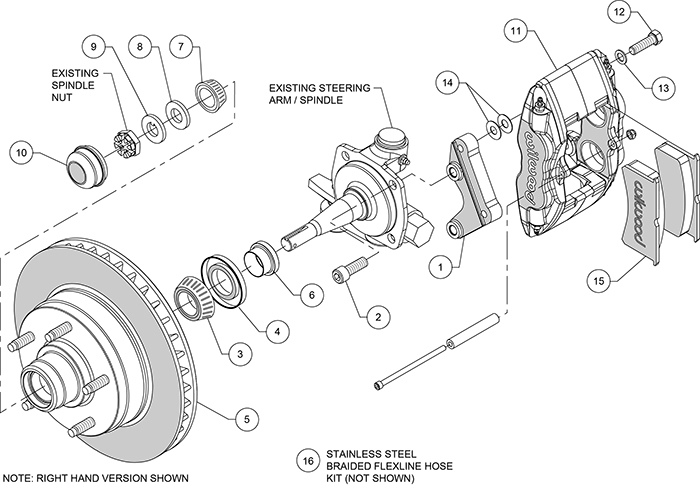

Classic Series Forged Superlite 4 Front Brake Kit Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Classic Series Forged Superlite 4 Front Brake Kit
SPINDLE TYPE:
Factory Drum Spindle ;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF: -0.06
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

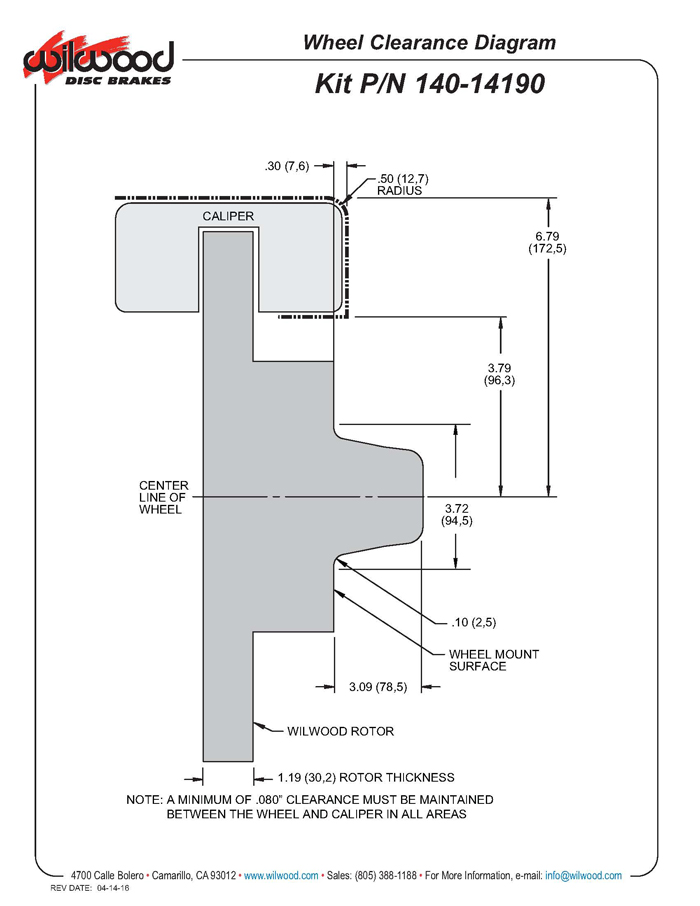

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11136
Right Hand - Part No: 120-11136
Type: Forged Superlite
Finish Color: Type III Ano
Piston Count: 4
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7420
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 4.9
Pad Compound: BP-10

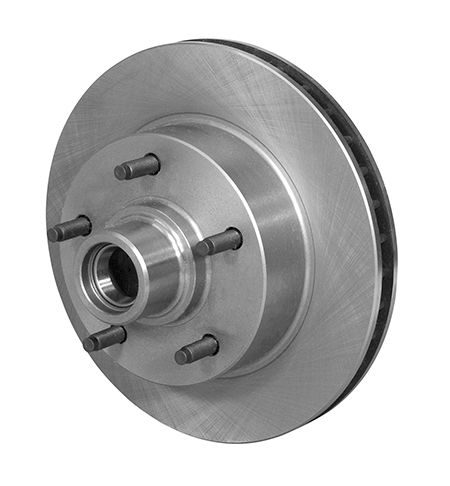

Rotors
Left Hand - Part No: 160-14187
Right Hand - Part No: 160-14187
Type: 1 PC Hub and Rotor
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.72
Width (in): 1.19
Vane Count: Vented
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7531
Replacement Piston 2: 200-7531
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-7541
Wear Plate - Left Hand: 300-5923
Wear Plate - Right Hand: 300-5922
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
Front Line Kit:
Front Line Kit:
220-10509
NULL
NULL
Hat
Bolt Kit:
Hub
Bolt Kit:
