Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6



Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6
(2) Brake Kits Available

Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6
Pistons: 4
Rotor Diameter: 13.00
Caliper Mount: Radial
Min. Wheel Diameter: 17
Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6

Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 Parts Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 Parts Zoom Image


View Custom Caliper Colors

Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 Description

Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00” rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.
Note 1. Use flexline kit 220-8177 for all 1997-04 C5 Note 2. Use flexline kit 220-9101 for all 2005-13 C6 Note 3. Requires 2005-09 J55 code Z51 13.00” rear rotor.

This kit fits the following vehicles:
Cadillac XLR 2004-2010 Chevrolet Corvette 1997-2004 Chevrolet Corvette 2005-2008 Chevrolet Corvette 2006-2008 Chevrolet Corvette 2009-2013 Chevrolet Corvette 2010-2013 Chevrolet Corvette 2011 Chevrolet Corvette 2013 Factory Five Racing GTM Supercar 2010-9998
Ordering Information for Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6

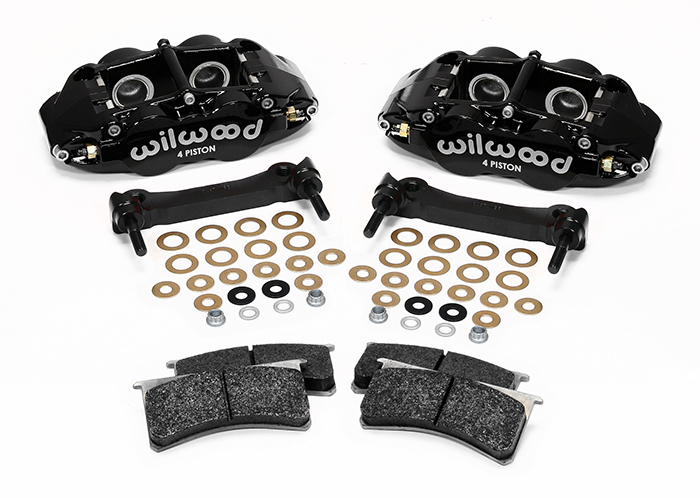

Item No 140-14026
Info Details
Caliper Color Black Powder Coat
Rotor N/A
P-Brake Cable
Line Kit Multiple Line Kits *
Price $1,108.31
Purchase
Call (805) 388-1188

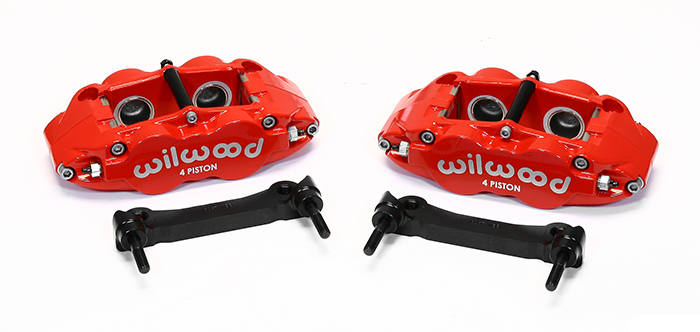

Item No 140-14026-R
Info Details
Caliper Color Red Powder Coat
Rotor N/A
P-Brake Cable
Line Kit Multiple Line Kits *
Price $1,108.31
Purchase
Call (805) 388-1188



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
