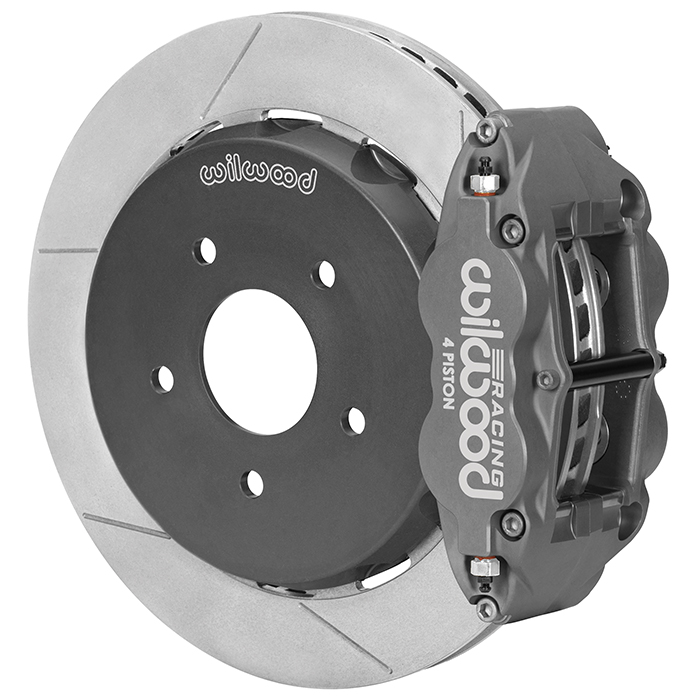

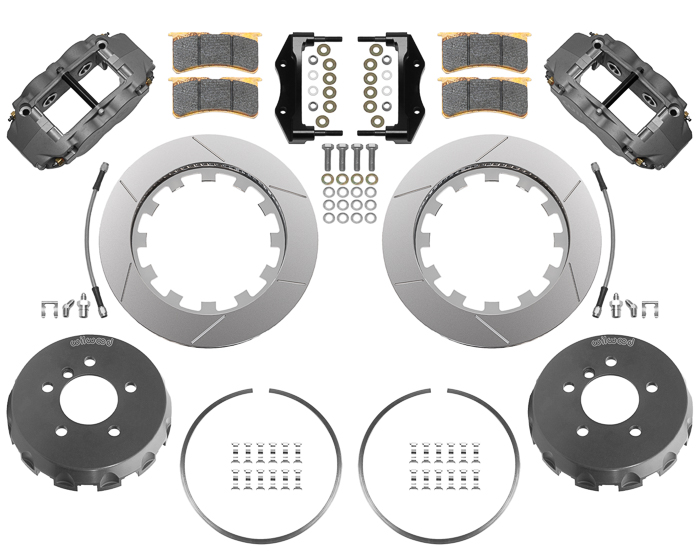

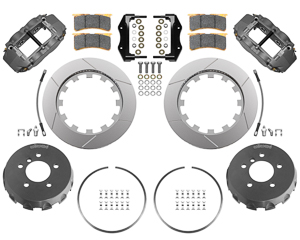

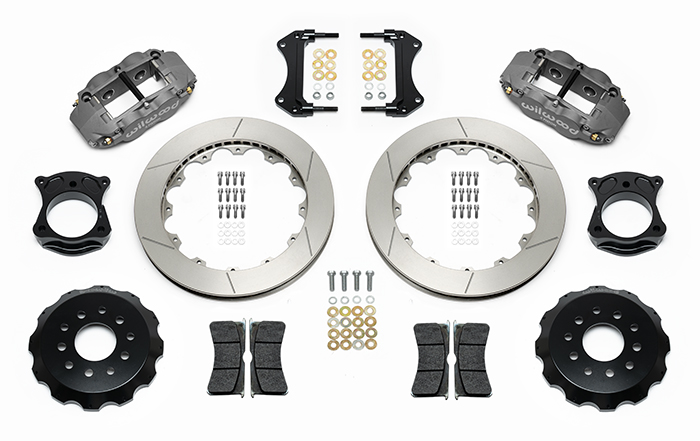

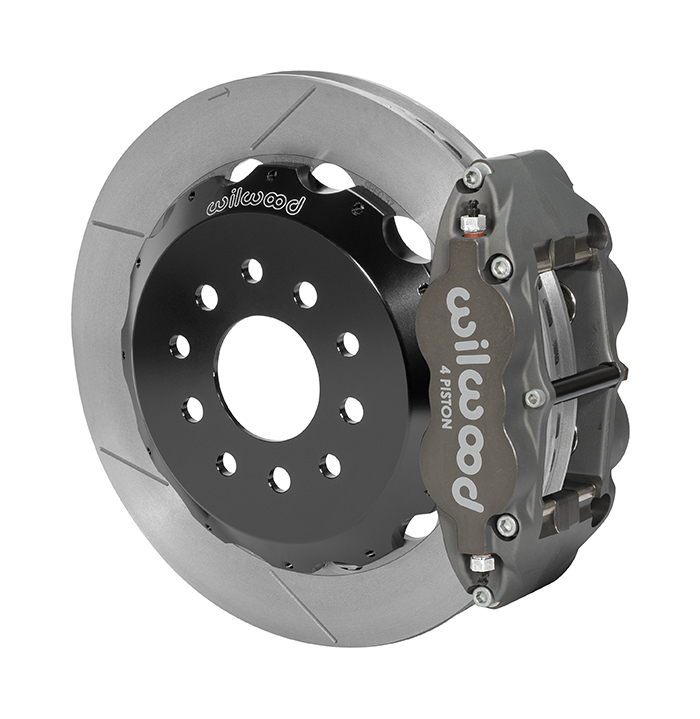

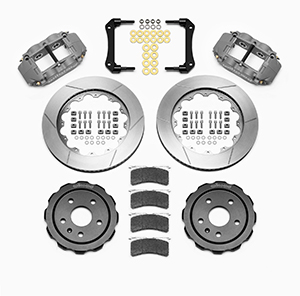

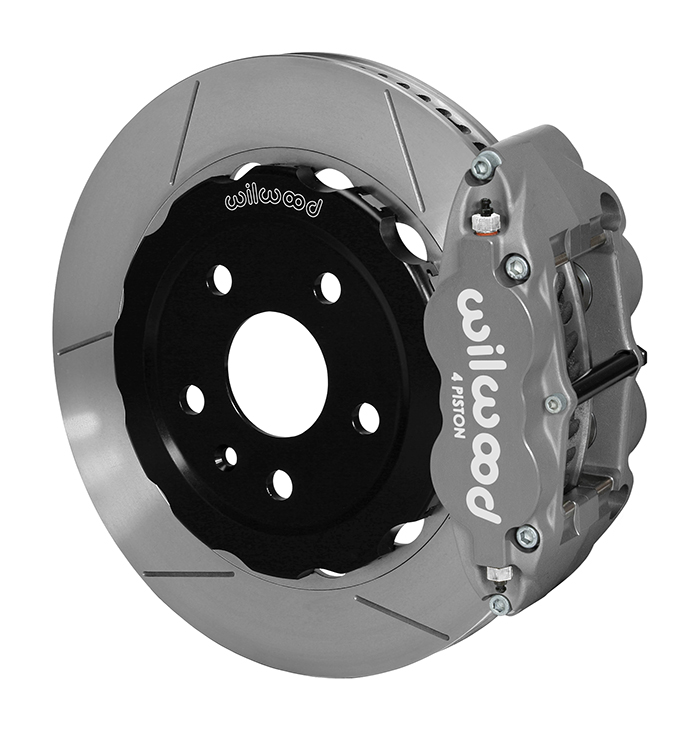

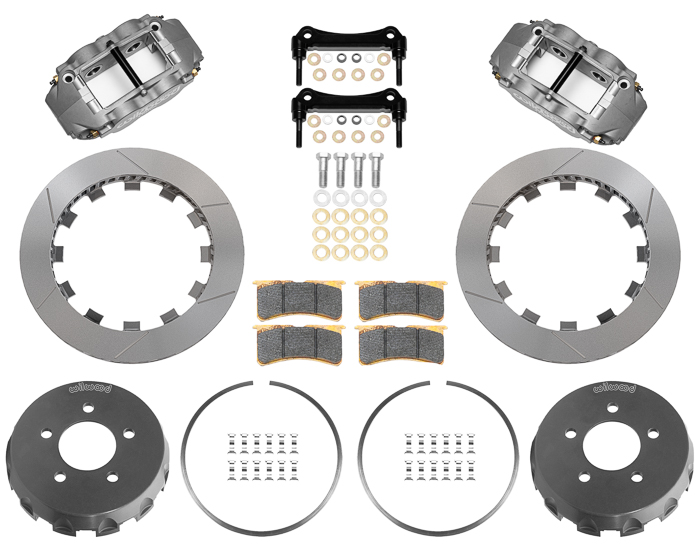

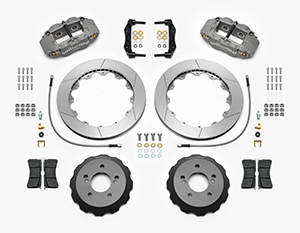

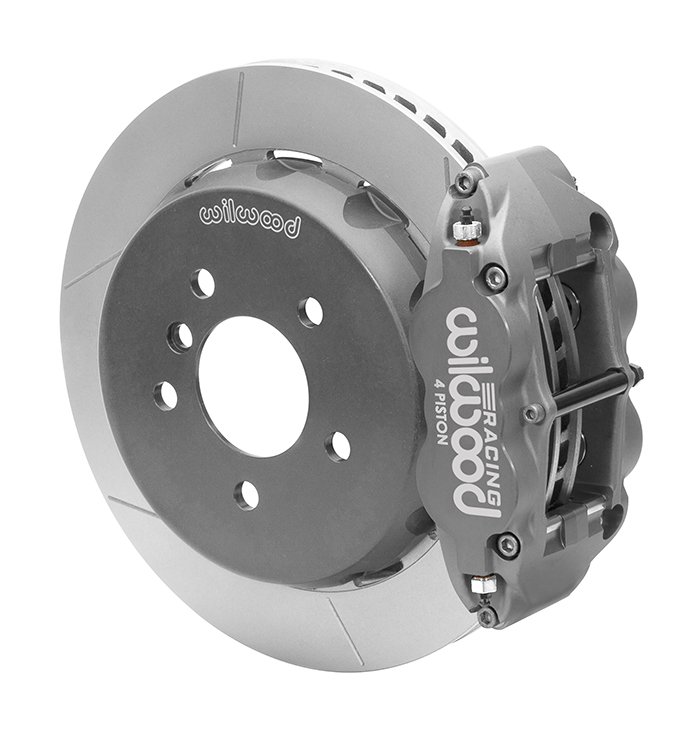

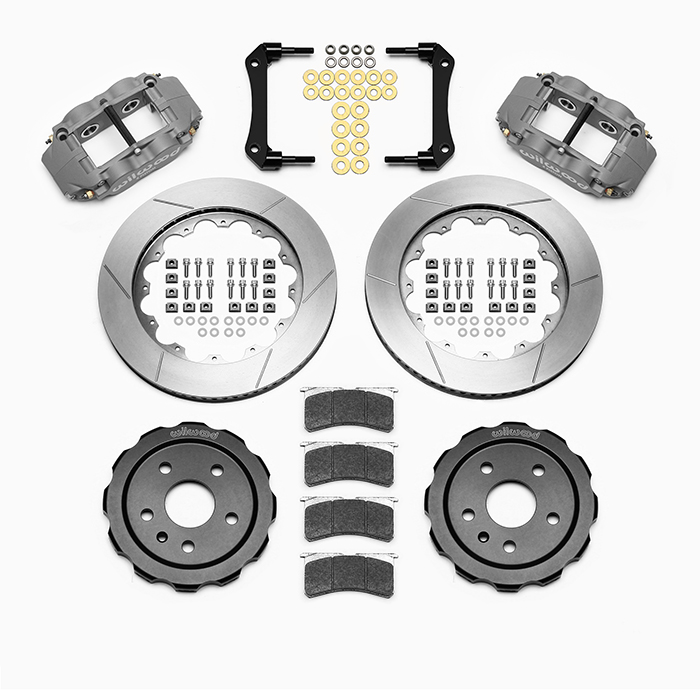

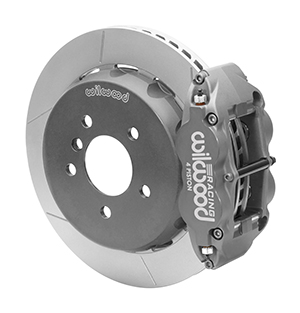

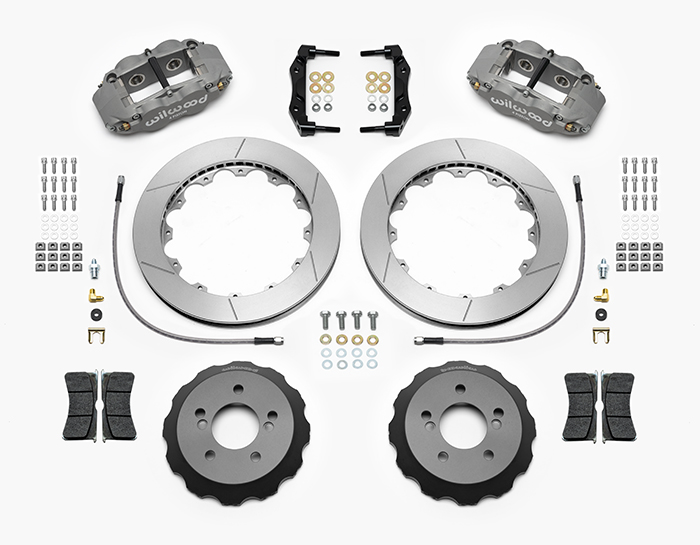

Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) Description

This kit is configured for dedicated road racing on all 2010-2015 model Camaros, and the 2016-2019 SS models. It is the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. FNSL4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane 12.88” rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Installation requires the separate purchase of the stainless steel braided flexline kit that must be ordered according to the model year.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) Description

This kit is configured for dedicated road racing on all 1995-1999 BMW E36/M3 models. All emphasis is on improved front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. The FNSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec, medium gray color, hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 13.00” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Further weight reduction is achieved by accommodating the elimination of the parking brake hardware. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with minor modifications. This championship proven system is completed with high temperature, high friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included in the kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) Description

Forged Narrow Superlite 4R/ST four piston radial mount race caliper rear kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. FNSL4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane 13.00” rotors are dynamically mounted using our new Dynamic Lug Mounting system to forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Installation requires the separate purchase of the stainless steel braided flexline kit that must be ordered according to the model year.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) Description

FNSL4R rear race kits provide high capacity braking for dedicated track use on Corvettes and other purpose built vehicles equipped with 1988-1996 C4 Corvette rear suspension. The parking brake is eliminated and the original equipment single piston combination caliper is replaced with a high efficiency, forged aluminum, fixed radial mount narrow four piston Superlite caliper. The forged caliper bodies feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores and high resistance to abrasion and corrosion throughout. Stainless steel pistons with internal damping springs are used with controlled retraction, high temperature seals for long term durability and consistent performance during extreme duty use. The caliper piston volume is fully compatible and matched to the output of the OE master cylinder on production based Corvettes, and easily configured with balance bar manual brake pedals in non-OE based purpose built race vehicles. The calipers are coupled with weight-saving two-piece rotor assemblies using 12.88” diameter Spec37 alloy direction vane GT series rotors mounted to the OE hubs with forged aluminum hats. High-temperature, high friction, endurance race compound brakes pads are specifically selected per application to provide high brake torque with smooth driver control and long wear in sustained high temperature competition.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Production chassis Corvettes require flexline kit 220-8177 for installation. Note 3. Custom built vehicles using adapted 1988-1996 Corvette suspension must specify the required line length.

Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) Description

This kit is configured for dedicated road racing on all 2001-2006 BMW E46 M3 models. It is the engineered match for the AERO6R/ST front race kits. All emphasis is on improved front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. The FNSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec, medium gray color, hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.88” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Further weight reduction is achieved by accommodating the elimination of the parking brake hardware. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with minor modifications to the dust shield as illustrated in the photos on page 4 of the assembly instructions. This championship proven system is completed with high temperature, high friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included in the kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
