1955-1957 Chevrolet Bel Air, Nomad, 210 Tri-Five ProSpindles
Call (805) 388-1188

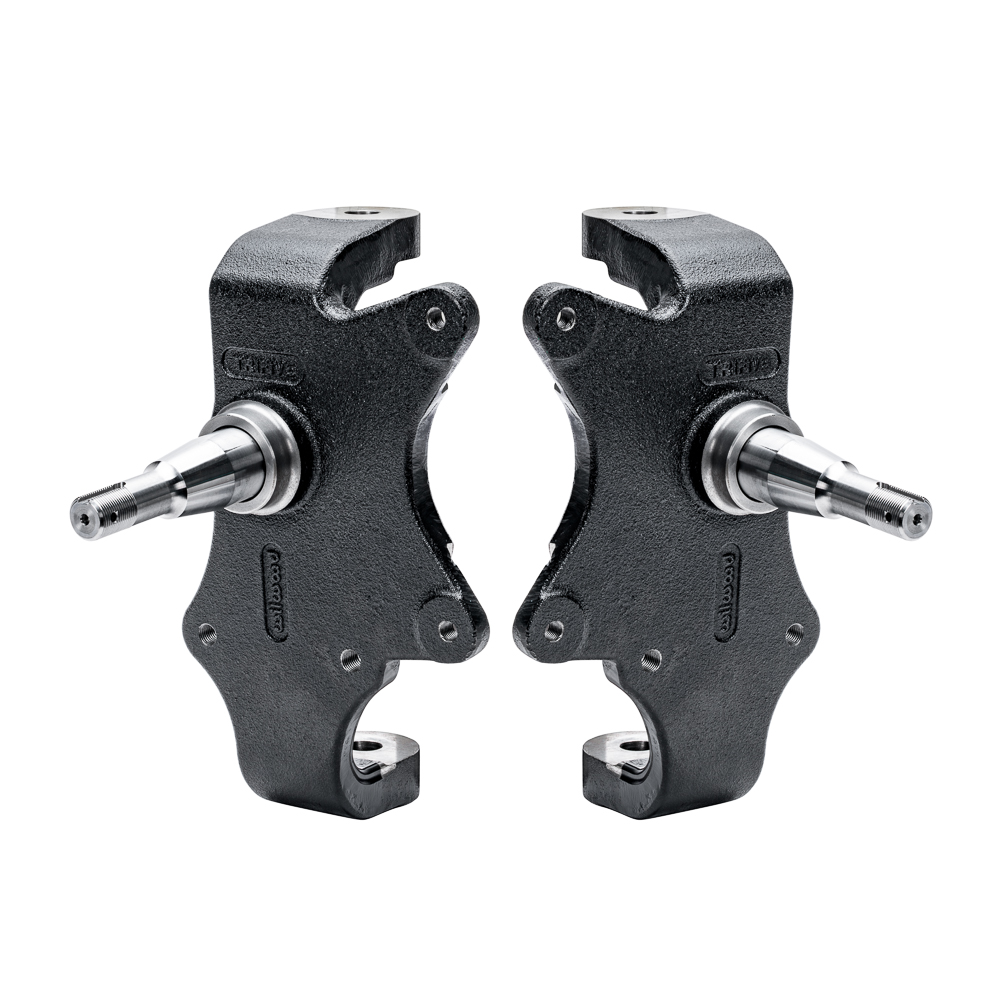

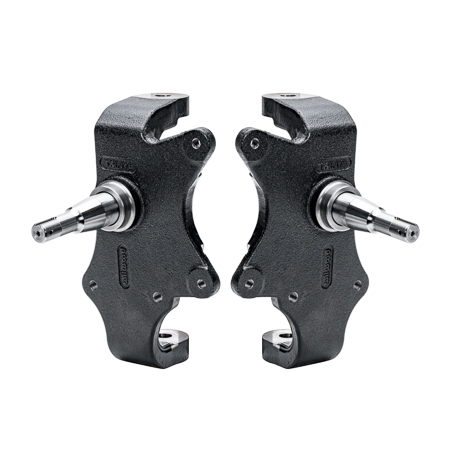

Spindle – Part No: 831-16660
Prod #: 831-16660
Price: $419.17
Spindle – 831-16660


Product Description
Spindle Style: Drop
Material: Cast Steel
Finish: Black E-Coat
Spindle Description
Drop Dim: 2 Inch
Side: LH & RH
Weight (lbs): 27.0
Tri-Five ProSpindles - Product Summary
1955-1957 Chevrolet Bel Air, Nomad, 210
UPC Number
UPC 889545105766
Cautionary Info
Spindles (Pair) L/H & R/H. Can only be used with Wilwood Brake Kits

Product Documents
Product Data Sheet

Click to View

Precision engineered 2” drop ProSpindle for 1955-1957 Chevy Bell Air, Nomad 210 and other full size models make installing Wilwood brakes easy. The Steel ProSpindle is lighter and stronger then the factory cast iron, while lowering the car for a better look and improved handling. Designed with reinforced attachment for a variety of Wilwood disc brake kits. Options include high performance aluminum four or six piston calipers and rotors ranging from 11.50” to 14.00” in diameter. The Pro Spindles use OE ball joints and steering arms, lowering the car with no changes to the suspension or steering geometry.

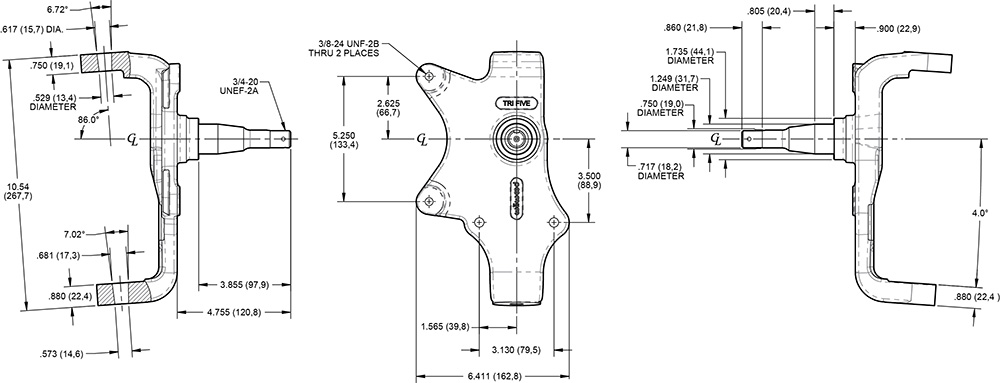

Spindle Dimensions

1955-1957 Chevrolet Bel Air, Nomad, 210 Drawing 1955-1957 Chevrolet Bel Air, Nomad, 210 Drawing Zoom Image
Additional Spindle Dimensions
Mount Length (in)
Spindle 1 Length (in)
Spindle 2 Length (in)
Additional Notes



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
