1964-72 GM A Body, 1967-69 GM F Body, 1968-74 GM X Body AFX ProSpindles
Call (805) 388-1188
Spindle – Part No: 831-15890
Prod #: 831-15890
Price: $269.94
Spindle – 831-15890

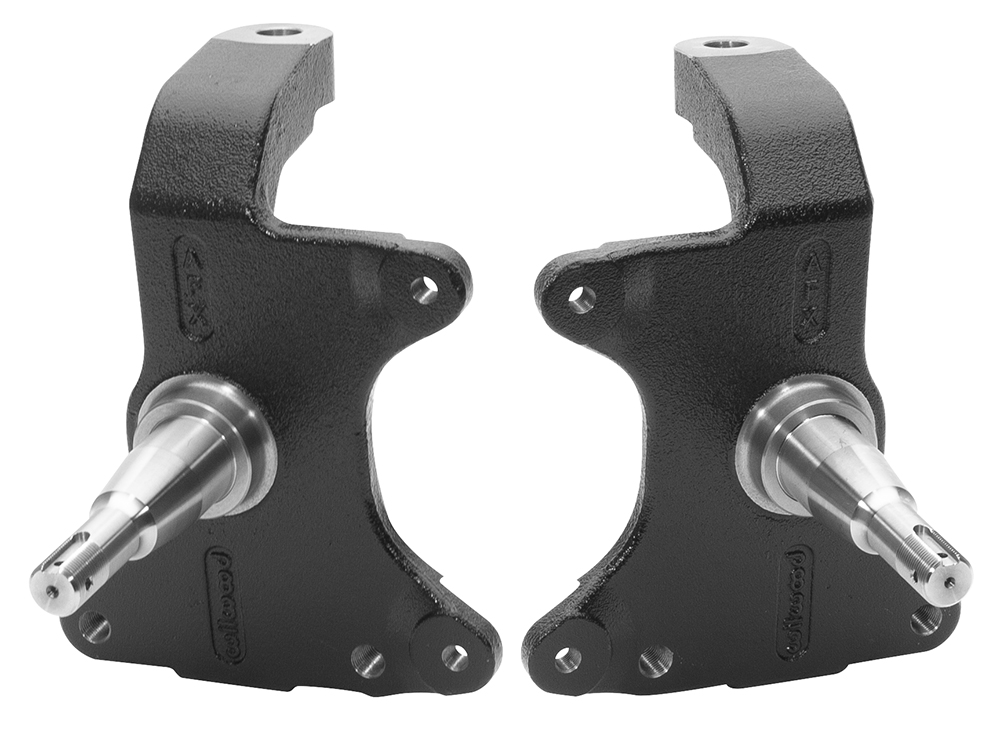

Wilwood 1964-72 GM A Body, 1967-69 GM F Body, 1968-74 GM X Body AFX ProSpindles Wilwood 1964-72 GM A Body, 1967-69 GM F Body, 1968-74 GM X Body AFX ProSpindles Zoom Image

Product Description
Spindle Style: Drop
Material: Cast Iron
Finish: Black E-Coat
Spindle Description
Drop Dim: 2 Inch
Side: LH & RH
Weight (lbs): 22.0
AFX ProSpindles - Product Summary
1964-72 GM A Body, 1967-69 GM F Body, 1968-74 GM X Body
UPC Number
UPC 889545093636
Cautionary Info
Spindles (Pair) L/H & R/H
Can only be used with Wilwood Brake kits
Product Documents
Product Data Sheet

Click to View

Wilwood’s AFX ProSpindle Kits contain a pair of high strength steel spindles for 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles that use the original bolt on steering arms. Specifically designed for use with Wilwood’s disc brake kits, with a 2.00” drop for a more aggressive stance without affecting steering geometry. With the added benefits of providing a lower center of gravity, raised front roll center and a decreased camber change also improve handling with less body roll. Installs using the OE ball joints using original or aftermarket control arms. Kit includes four steering arm bolts, two for each spindle.

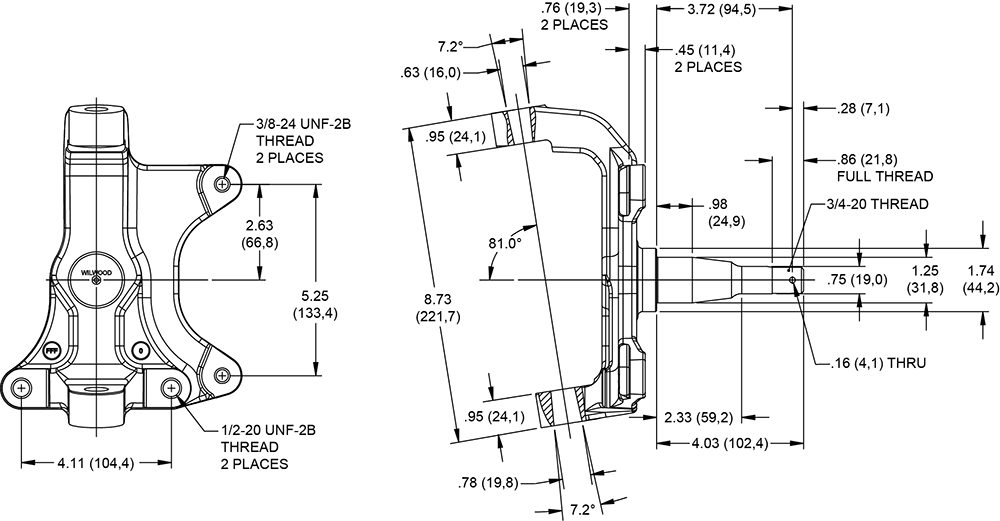

Spindle Dimensions

1964-72 GM A Body, 1967-69 GM F Body, 1968-74 GM X Body Drawing 1964-72 GM A Body, 1967-69 GM F Body, 1968-74 GM X Body Drawing Zoom Image
Additional Spindle Dimensions
Mount Length (in)
Spindle 1 Length (in)
Spindle 2 Length (in)
Additional Notes



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
