1971-1987 Chevrolet C10 / GMC C15 Chevrolet C10 ProSpindles
Call (805) 388-1188
Spindle – Part No: 831-14202
Prod #: 831-14202
Price: $873.16

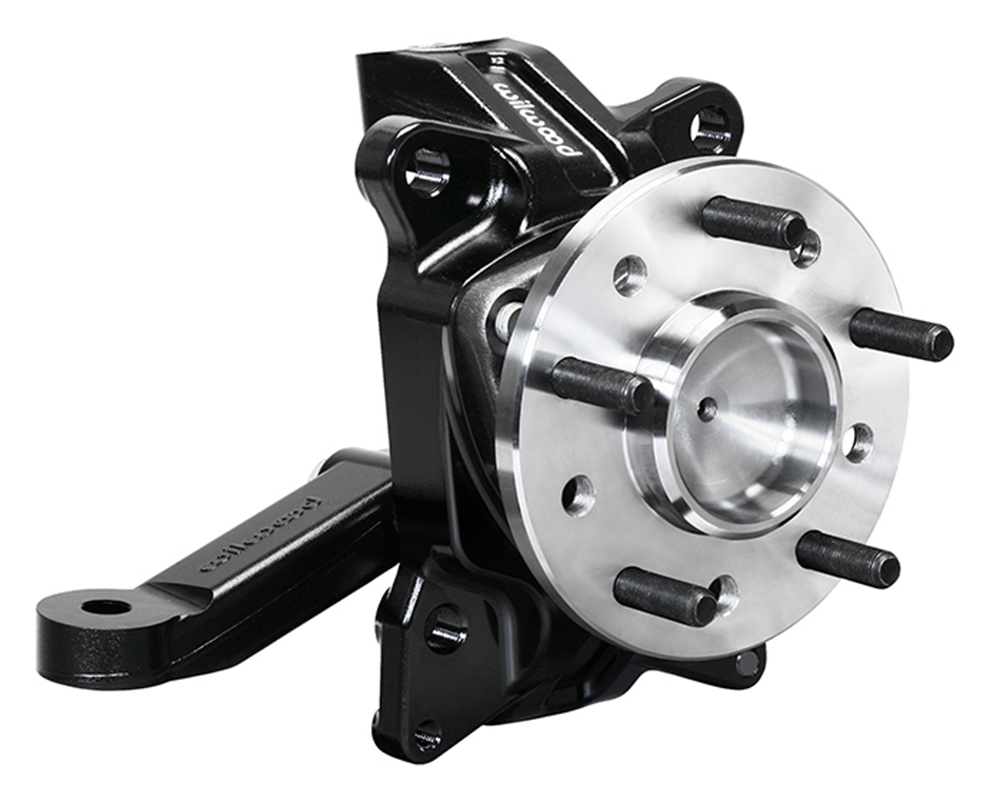

Spindle – 831-14202


Product Description
Spindle Style: Drop
Material: Forged Aluminum
Finish: Black E-Coat
Spindle Description
Drop Dim: 2.5 Inch
Side: LH & RH
Weight (lbs): 43.0
Chevrolet C10 ProSpindles - Product Summary
1971-1987 Chevrolet C10 / GMC C15
UPC Number
UPC 889545077070
Cautionary Info
Spindles & Steering Arms (Pair) L/H & R/H
Can only be used with Wilwood Brake Kits
Product Documents
Product Data Sheet

Click to View

Wilwood’s ProSpindle Kits contain a pair of Modular Spindles, steering arms and hubs assemblies for either 63-70 or 71-87 Chevrolet & GMC 2WD C10/C15 Pickups and Suburban’s. Specifically designed for use with Wilwood’s disc brake kits, with a 2.50” drop for a more aggressive stance without affecting steering geometry. Constructed from a proprietary grade of forged aluminum with an integrated modular bearing hub assembly that supports both 5 x 4.75” and 5 x 5.00” wheel bolt circles. Direct mounting for radial caliper brackets create strong, zero flex platform for brake mounting.

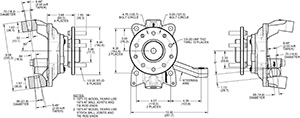

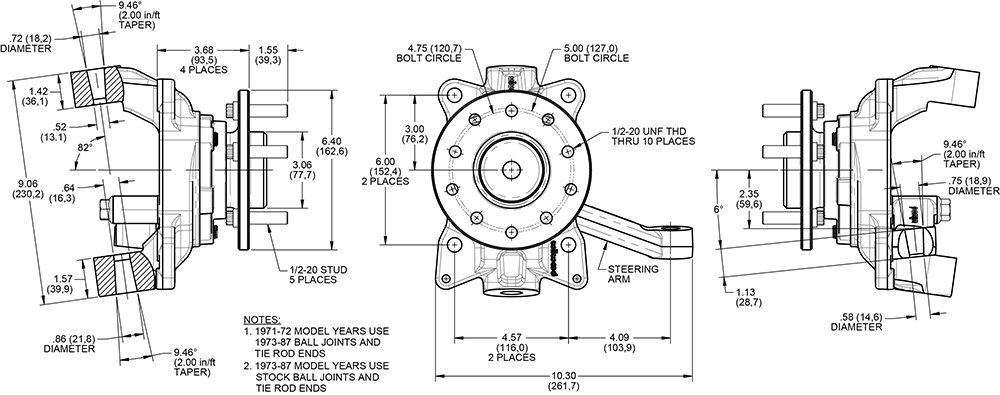

Spindle Dimensions

1971-1987 Chevrolet C10 / GMC C15 Drawing 1971-1987 Chevrolet C10 / GMC C15 Drawing Zoom Image
Additional Spindle Dimensions
Mount Length (in)
Spindle 1 Length (in)
Spindle 2 Length (in)
Additional Notes



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
