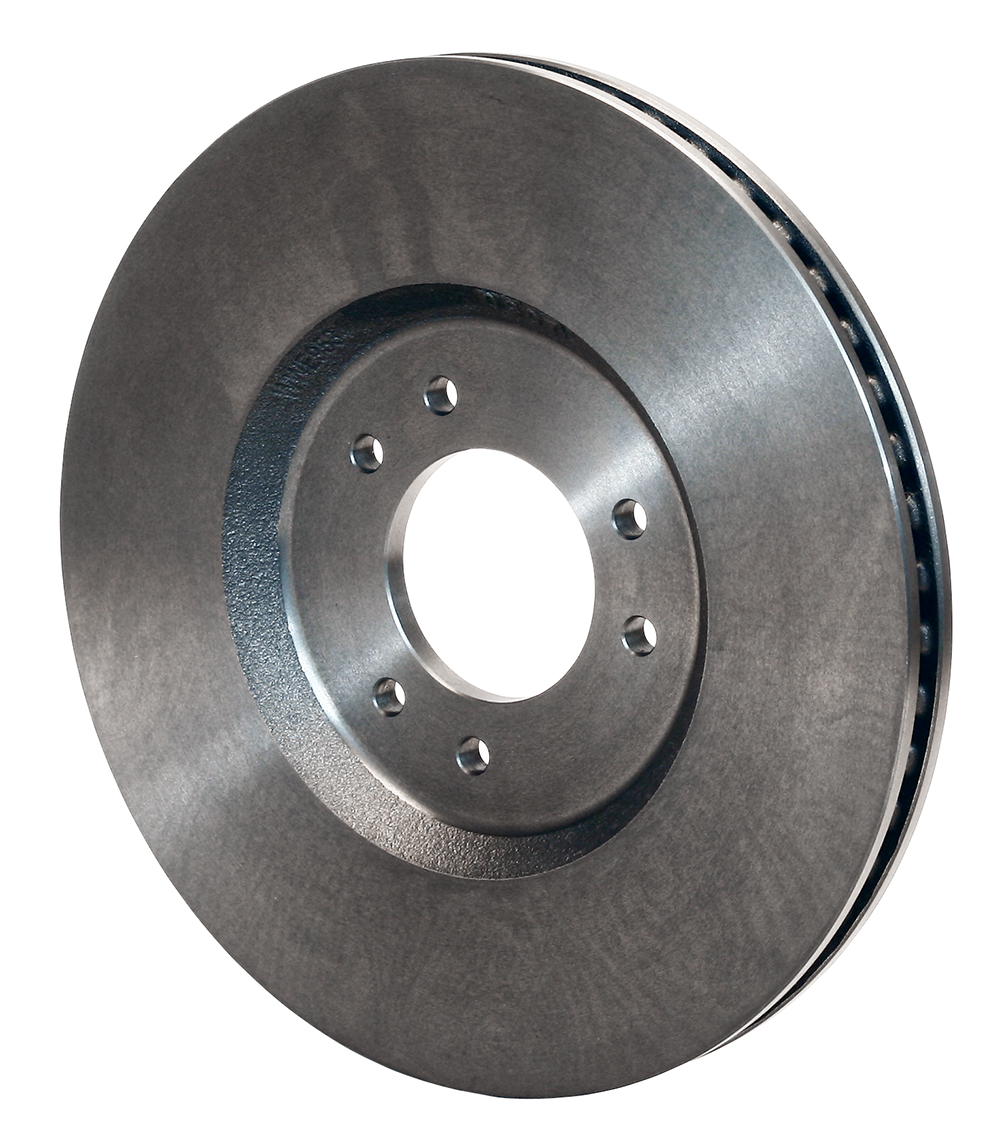

Ultralite Rotors – Part No: 160-9535
Ultralite HP 53 Vane Rotor & Hat
Prod #:
160-9535
Price:
$207.81
Ultralite HP 53 Vane Rotor & Hat – Product Summary
| Rotor Dimensions |
| Width (in) |
0.95 |
| Diameter (in) |
12.00 |
| Mount Side |
Non_Direct |
| Rotor Design |
| Material |
Iron |
| Vane Count |
56 V |
| Weight(Lbs) |
16.13 |
| Rotor Style & Finish |
| Type |
HP |
| Style |
Plain Face |
| Surface Finish |
Plain |
| Rotor Upgrades |
| Bedded |
No |
| Balanced |
No |
| UPC Number |
| UPC |
889545040937 |
160-9535 – Product Description
Ultralite HP 53 Vane Rotor & Hat
HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.
|
Performance Characteristics
|
|

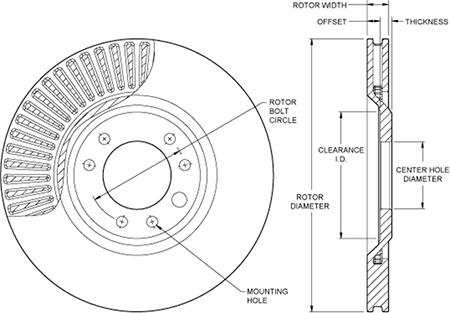

Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
6 x 4.33 |
| Rotor Mount Hole Size (in) |
|
| Lug ID / Registration (in) |
2.96 |
| Far Side Inside Diameter (in) |
6.99 |
| Offset Dimension (in) |
0.580 |
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
|
| Stud Diameter (in) |
|
| Face Thickness (in) |
0.46 |
