GT Rotors – Part No: 160-17463-GTB
GT Vented Rotor & Hat
Prod #:
160-17463-GTB
Price:
$408.89
GT Vented Rotor & Hat – Product Summary

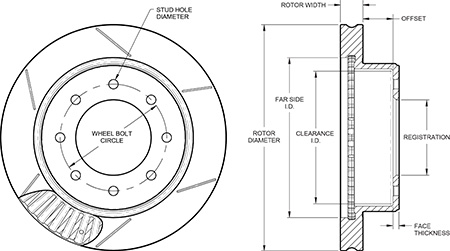

Rotor Dimension Diagram
|
GT Vented Rotor & Hat Dimension Diagram
Click Image to Close
|
Rotor Dimensions |
Width (in) |
1.50 |
Diameter (in) |
15.00 |
Mount Side |
Non_Direct |
Rotor Design |
Material |
Iron |
Vane Count |
48 V |
Weight(Lbs) |
42.25 |
Rotor Style & Finish |
Type |
GT-BLK |
Style |
GT Slotted |
Surface Finish |
Black Electro Coat |
Rotor Upgrades |
Bedded |
No |
Balanced |
- |
UPC Number |
UPC |
889545114072 |
160-17463-GTB – Product Description

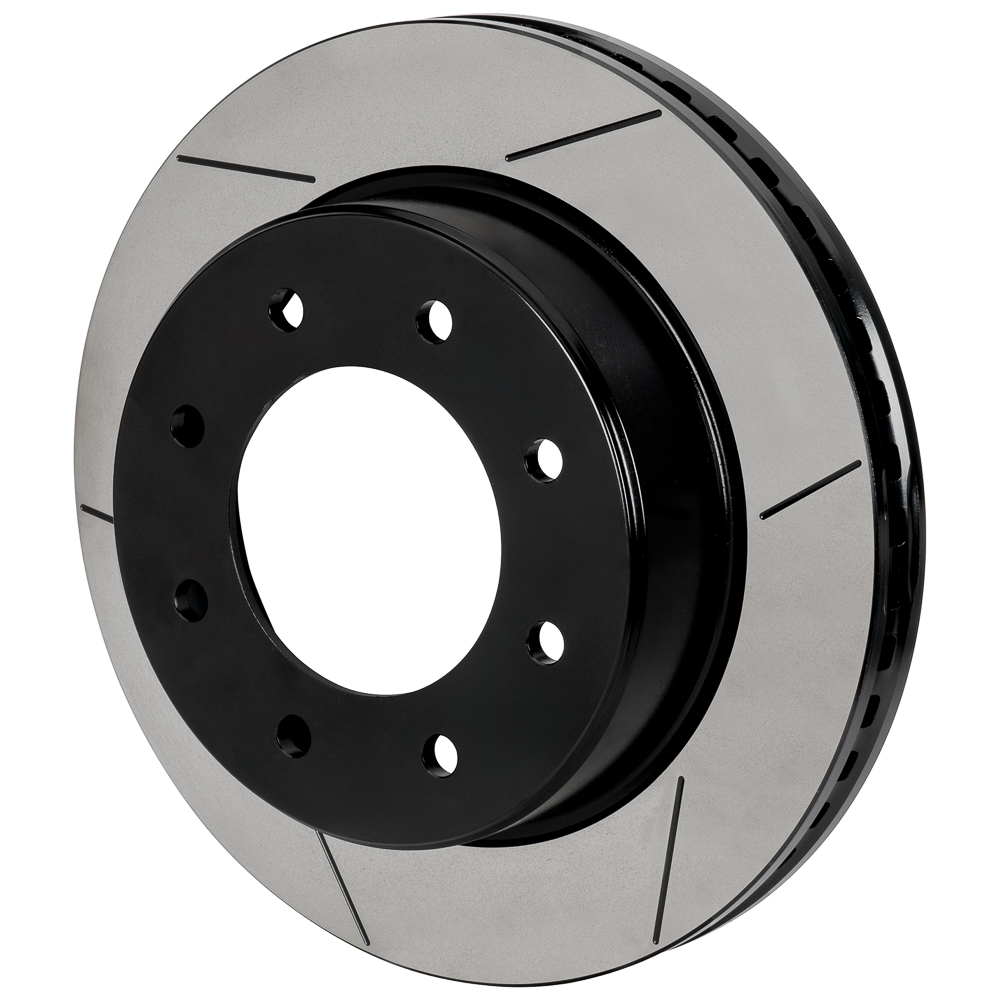

GT Vented Rotor & Hat
GT Vented Rotor and Hats are built for the extreme conditions of motorsports or heavy duty use. The superior heat absorption and dissipation characteristics of these heavy wall multi-vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion.
Performance Characteristics
|
|
Additional Rotor Dimensions
Rotor Bolt Circle (in) |
|
Rotor Mount Hole Size (in) |
|
Lug ID / Registration (in) |
5.01 |
Far Side Inside Diameter (in) |
10.62 |
Offset Dimension (in) |
2.000 |
Shoe Inside Dimension (in) |
|
Clearance Inside Diameter (in) |
8.80 |
Wheel Bolt Circle (in |
8 x 7.087 |
Stud Diameter (in) |
0.64 |
Face Thickness (in) |
0.40 |
