GT Rotors – Part No: 160-16716-GTB
Call (805) 388-1188
GT Vented Rotor & Hat
Prod #: 160-16716-GTB
Price: $281.44

GT Vented Rotor & Hat – Product Summary
Rotor No: 160-16716-GTB

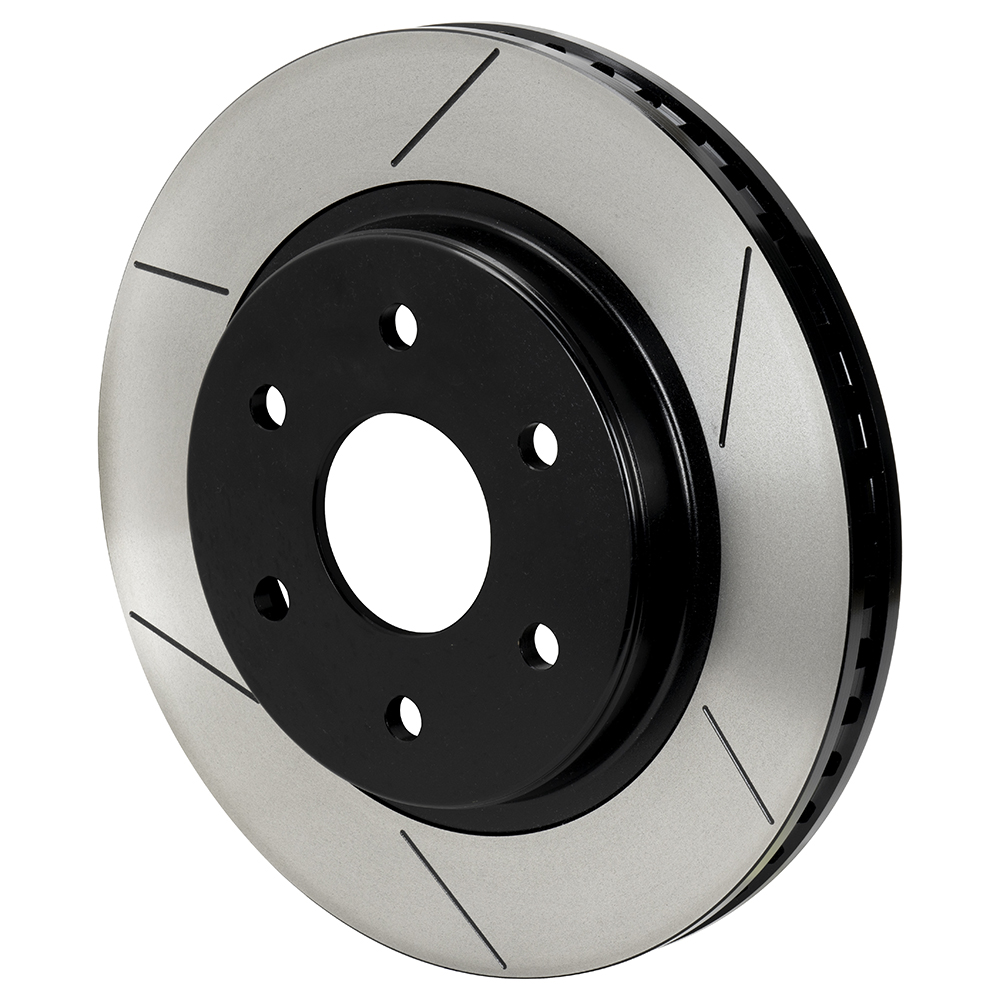

Wilwood GT Vented Rotor & Hat Wilwood GT Vented Rotor & Hat Zoom Image

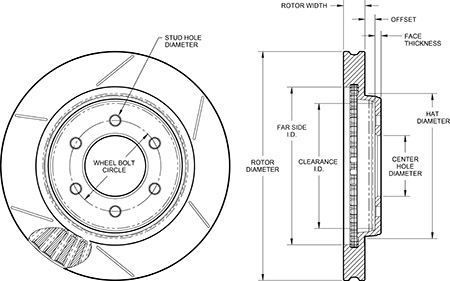

Rotor Dimension Diagram
GT Vented Rotor & Hat Dimension Diagram GT Vented Rotor & Hat Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 1.25
Diameter (in) 13.38
Mount Side
Rotor Design
Material Iron
Vane Count 48 V
Weight(Lbs) 25.79
Rotor Style & Finish
Style GT Slotted
Surface Finish Black Electro Coat
Rotor Upgrades
Bedded No
Balanced Yes
UPC Number
UPC 889545102833
160-16716-GTB – Product Description

GT Vented Rotor & Hat

GT Vented Rotor and Hats are built for the extreme conditions of motorsports or heavy duty use. The superior heat absorption and dissipation characteristics of these heavy wall multi-vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion.

Performance Characteristics

Additional Rotor Dimensions

Rotor Bolt Circle (in)
Rotor Mount Hole Size (in)
Lug ID / Registration (in) 3.55
Far Side Inside Diameter (in) 9.22
Offset Dimension (in) 0.590

Shoe Inside Dimension (in)
Clearance Inside Diameter (in) 7.30
Wheel Bolt Circle (in 6 x 5.315
Stud Diameter (in) 0.59
Face Thickness (in) 0.24
