SRP Rotors – Part No: 160-12755-BK
Call (805) 388-1188
SRP Drilled Performance Rotor & Hat
Prod #: 160-12755-BK
Price: $226.74

SRP Drilled Performance Rotor & Hat – Product Summary
Rotor No: 160-12755-BK

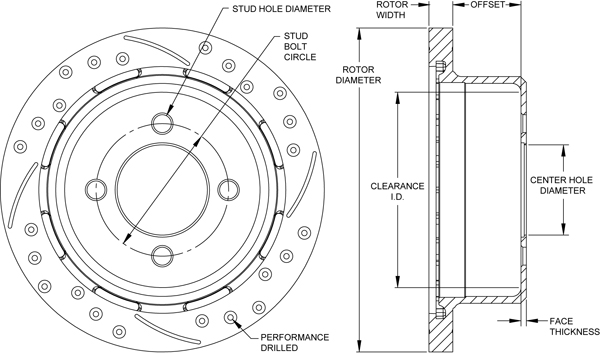

Rotor Dimension Diagram
SRP Drilled Performance Rotor & Hat Dimension Diagram SRP Drilled Performance Rotor & Hat Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 0.81
Diameter (in) 11.00
Mount Side L/H
Rotor Design
Material Iron
Vane Count 32 V
Weight(Lbs) 12.30
Rotor Style & Finish
Type SRP-BLK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545038637
160-12755-BK – Product Description

SRP Drilled Performance Rotor & Hat

For custom, show and high performance sport driving, SRP rotors offer the high tech look and improved performance of a directional cross-drill and face slot pattern. In addition to the aesthetic appeal, the venting and cleaning action of the hole and slot pattern helps to reduce pad glaze and minimize irregular pad build-up on the rotor faces. The results are a smoother engagement feel at the pedal and consistent response from the pads. Each rotor is precision machined to less than .001 tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. The rotors are finished with a black electro coat to provide corrosion resistance.


Performance Characteristics
• Rear brake rotor for 11.00" Low-Profile disc/drum internal parking brake kits.
• Rotor has been updated to new 3.06R register and will allow use of register ring adapters.
• Ring adapters are available in sizes from 2.00” to 2.86”. See catalog for part numbers.



Additional Rotor Dimensions

Rotor Bolt Circle (in)
Rotor Mount Hole Size (in)
Lug ID / Registration (in) 3.06
Far Side Inside Diameter (in) 8.38
Offset Dimension (in) 2.320

Shoe Inside Dimension (in) 7.24
Clearance Inside Diameter (in) 7.16
Wheel Bolt Circle (in 4 x 4.50
Stud Diameter (in) 0.61
Face Thickness (in) 0.18




All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
