Super Alloy Rotors – Part No: 160-11763
Super Alloy Scalloped Rotor
Prod #:
160-11763
Price:
$854.94
Super Alloy Scalloped Rotor – Product Summary
| Rotor Dimensions |
| Width (in) |
0.78 |
| Diameter (in) |
10.50 |
| Mount Side |
Non_Direct |
| Rotor Design |
| Material |
Titanium |
| Vane Count |
24 V |
| Weight(Lbs) |
2.50 |
| Rotor Style & Finish |
| Type |
Alloy Scalloped |
| Style |
Drilled |
| Surface Finish |
Polymetalic Coated |
| Rotor Upgrades |
| Burnished |
No |
| Balanced |
No |
| UPC Number |
| UPC |
889545038095 |
160-11763 – Product Description
Super Alloy Scalloped Rotor
Super Alloy Titanium 10.50” x .810” Vented Rotors are Sprint racing's lightest .810" rotor at a weight of only 2.40 pounds. Wilwood’s proprietary Super Alloy Steel greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A Drilled, slotted, and scalloped design with 24 cooling vanes provides excellent high temperature stability, rapid heat dissipation, and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures.. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.
|
Performance Characteristics
|
• Obsolete Part Number
• Dirt Sprint Car Inboard Use
• Recommended Brake Pads: BP40 and CM (Sintered Metallic) compounds.
|

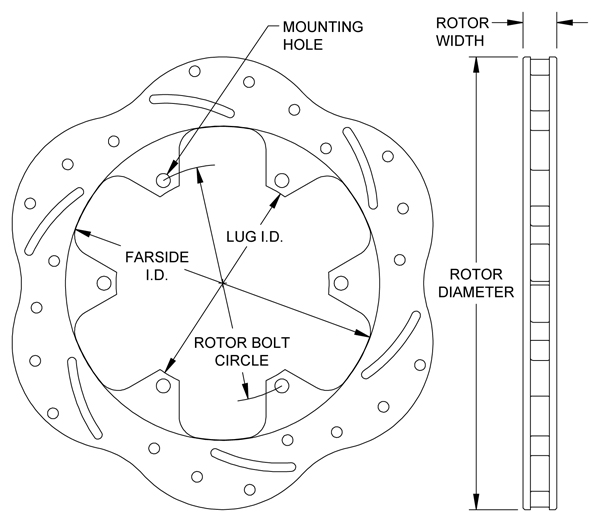

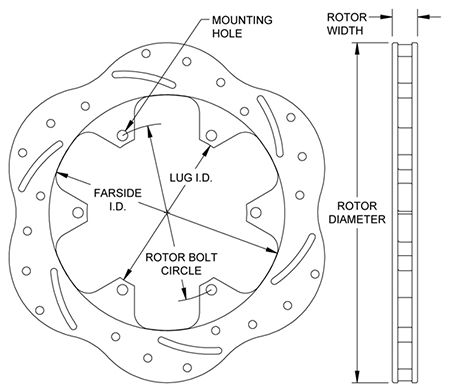

Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
6 x 5.50 |
| Rotor Mount Hole Size (in) |
0.326 |
| Lug ID / Registration (in) |
4.94 |
| Far Side Inside Diameter (in) |
7.30 |
| Offset Dimension (in) |
|
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
|
| Stud Diameter (in) |
|
| Face Thickness (in) |
|
