Super Alloy Rotors – Part No: 160-16114

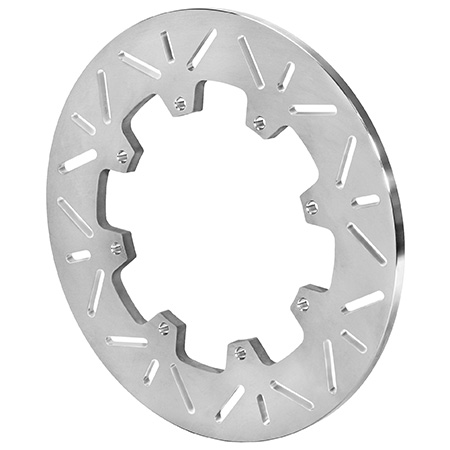

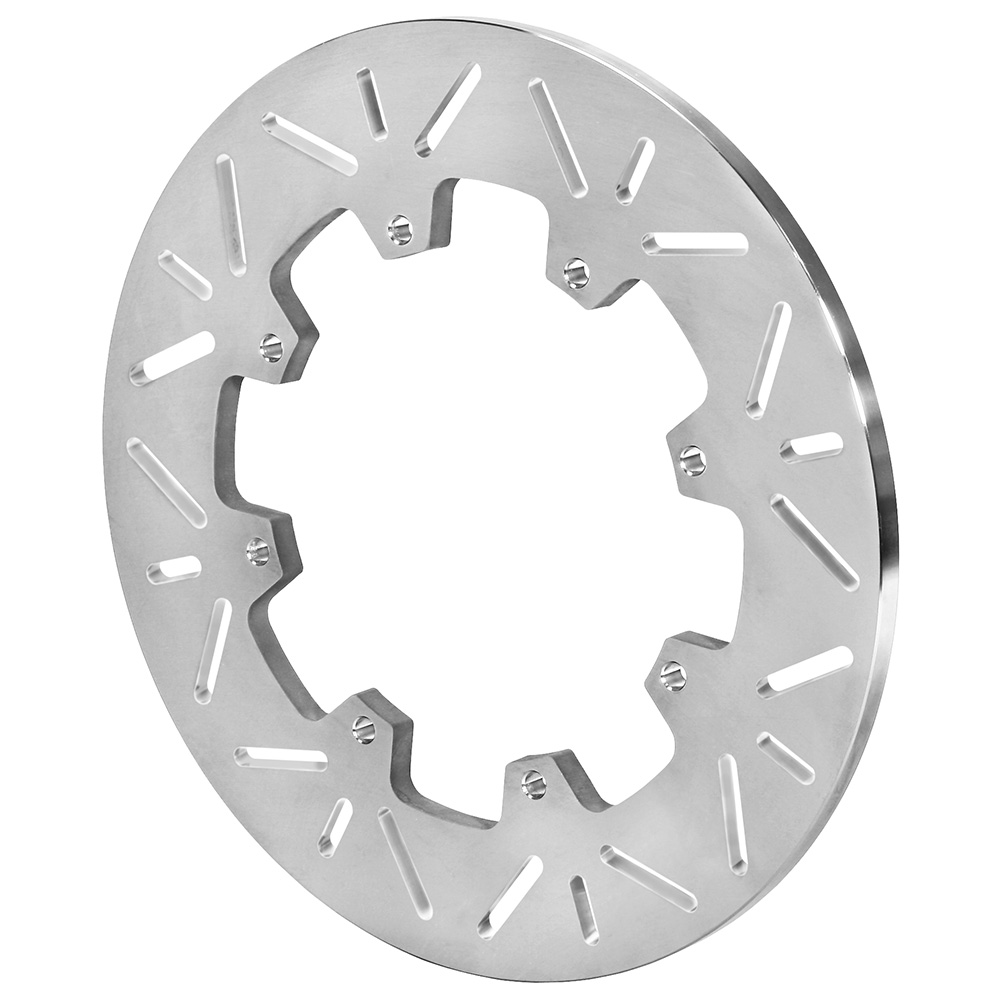

Super Alloy Slotted Rotor
Prod #:
160-16114
Price:
$786.35
Super Alloy Slotted Rotor – Product Summary
|
Rotor Dimension Diagram
|
Super Alloy Slotted Rotor Dimension Diagram
![]()
Click Image to Close
|
| Rotor Dimensions |
| Width (in) |
0.36 |
| Diameter (in) |
12.00 |
| Mount Side |
Non_Direct |
| Rotor Design |
| Material |
Titanium |
| Vane Count |
Solid |
| Weight(Lbs) |
3.80 |
| Rotor Style & Finish |
| Type |
Alloy Solid |
| Style |
Slotted |
| Surface Finish |
Plain |
| Rotor Upgrades |
| Bedded |
No |
| Balanced |
No |
| UPC Number |
| UPC |
889545098457 |
160-16114 – Product Description
Super Alloy Slotted Rotor
Super Alloy Titanium Slotted Rotors are Sprint racing's lightest rotors at a weight of between 2.8 to 3 pounds. Wilwood’s proprietary Super Alloy Titanium greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A directional slotted surface allowing for full pad contact. This provides excellent high temperature stability, with rapid heat dissipation and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.
|
Performance Characteristics
|
• Only for Dirt Sprint Car inboard use.
|
Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
8 x 7.00 |
| Rotor Mount Hole Size (in) |
0.323 |
| Lug ID / Registration (in) |
6.36 |
| Far Side Inside Diameter (in) |
|
| Offset Dimension (in) |
|
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
|
| Wheel Bolt Circle (in |
|
| Stud Diameter (in) |
|
| Face Thickness (in) |
|
