Super Alloy Rotors – Part No: 160-11217
Call (805) 388-1188
Super Alloy Scalloped Rotor
Prod #: 160-11217
Price: $249.42

Super Alloy Scalloped Rotor – Product Summary
Rotor No: 160-11217

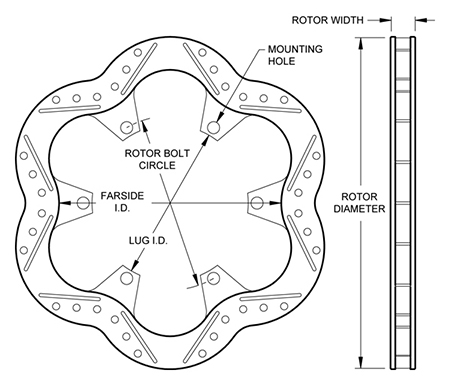

Rotor Dimension Diagram
Super Alloy Scalloped Rotor Dimension Diagram Super Alloy Scalloped Rotor Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 0.78
Diameter (in) 10.50
Mount Side Non_Direct
Rotor Design
Material Super Alloy
Vane Count 24 V
Weight(Lbs) 3.20
Rotor Style & Finish
Type Alloy Scalloped
Style Drilled
Surface Finish Plain
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545037777
160-11217 – Product Description

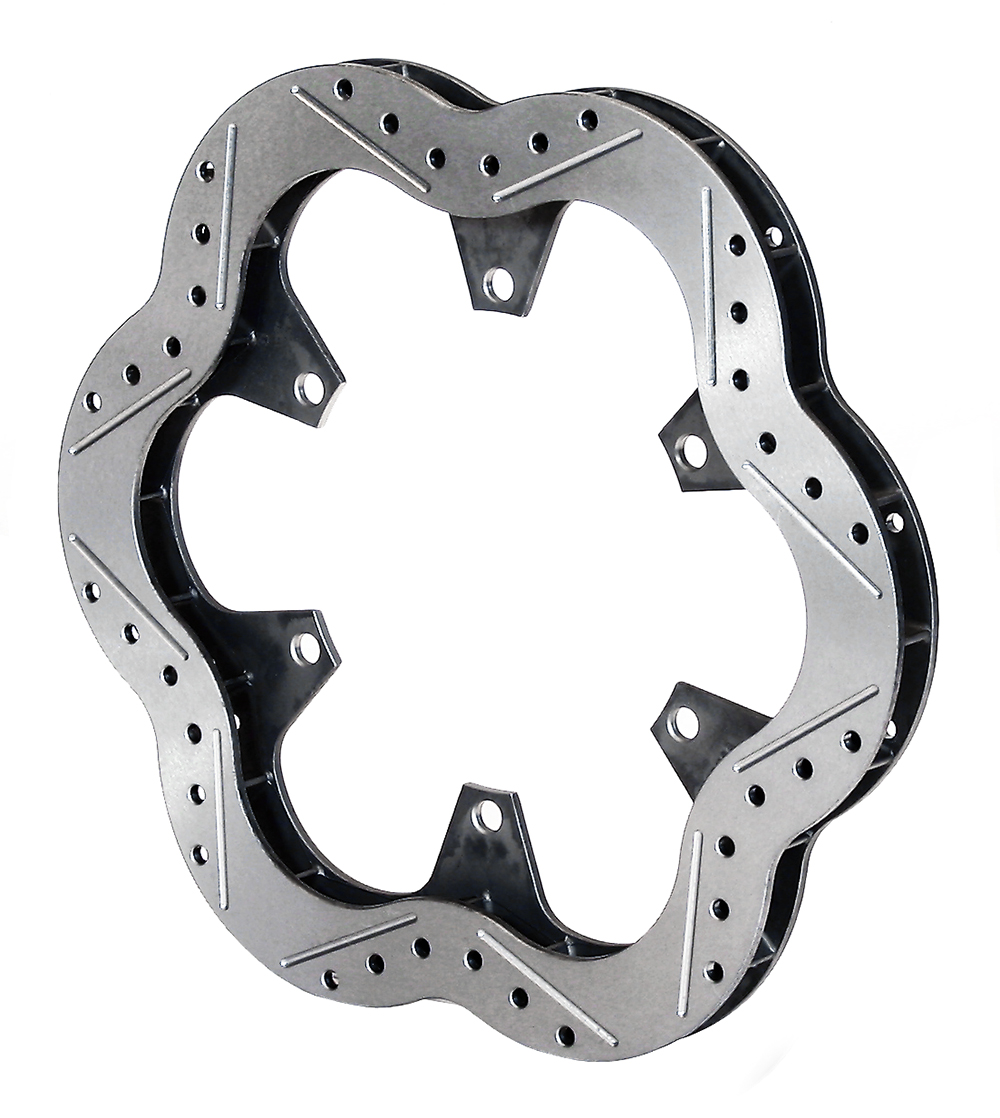

Super Alloy Scalloped Rotor

Super Alloy Steel 10.50” x .780” Vented Rotors are one of Sprint racing's lightest .750" to .810" thickness class rotor at a weight of only 3.20 pounds. Wilwood's proprietary Super Alloy Steel greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A Drilled, slotted, and scalloped design with 24 cooling vanes provides excellent high temperature stability, rapid heat dissipation, and consistent performance from the brake pads.


Performance Characteristics
• Dirt Sprint Car Inboard Use.
• Designed for specific dirt racing applications and may be unsuitable for other forms of racing.
• Not for street use.


Additional Rotor Dimensions

Rotor Bolt Circle (in) 6 x 5.50
Rotor Mount Hole Size (in) 0.326
Lug ID / Registration (in) 4.94
Far Side Inside Diameter (in) 7.30
Offset Dimension (in)

Shoe Inside Dimension (in)
Clearance Inside Diameter (in)
Wheel Bolt Circle (in
Stud Diameter (in)
Face Thickness (in)

Additional Notes

The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures.. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.




All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
