MasterCylinder No: 261-16838-.75


Call (805) 388-1188
Compact Remote Flange Mt MC Body w-Reservoir Kit
Prod #: 261-16838-.75
Price: $157.48

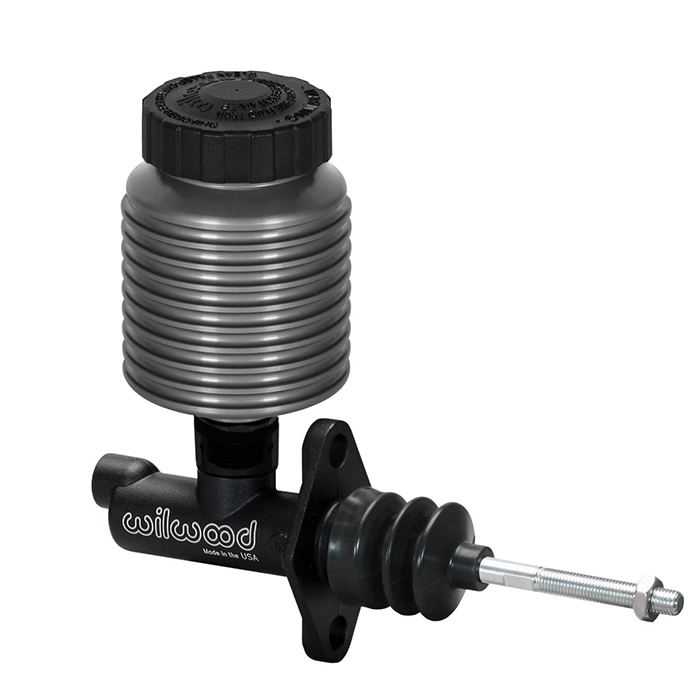

Wilwood Compact Remote Flange Mt MC Body w-Reservoir Kit Wilwood Compact Remote Flange Mt MC Body w-Reservoir Kit Zoom Image

Master Cylinder Dimensions
Bore Size 3/4"
Area (in²) 0.440
Stroke 1.12
Volume (cu in) 0.49
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Black E-coat
Reservoir
Res Type Remote
Res Size (oz) 4.00
Res Size(cu in) 7.22
Rate
UPC Number
UPC 889545109924
Product Documents
Rebuild Kit Product Data Sheet


260-10514 Click To Download

Compact Remote Flange Mt MC Body w-Reservoir Kit - Product Summary







Master Cylinder Dimensions

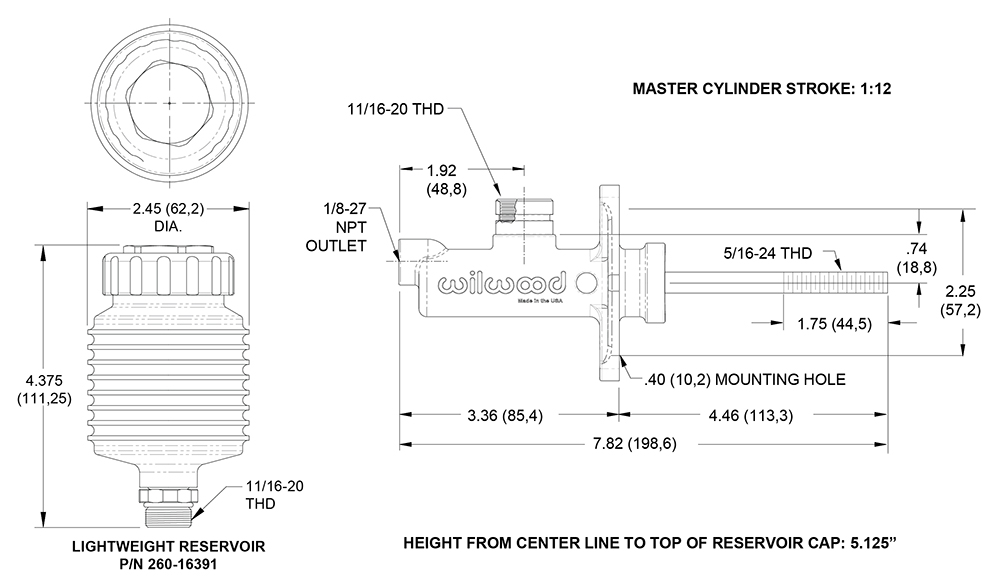

Wilwood Compact Remote Flange Mt MC Body w-Reservoir Kit Drawing Wilwood Compact Remote Flange Mt MC Body w-Reservoir Kit Drawing Zoom Image
Additional Dimensions
Overall Length(in) 7.80"
Flange to End Length (in) 3.37"
Inlet Size (in) .87" or 11/16-20
Inlet Fit (in)
Outlet Size 1 (in) 1/8-27 NPT
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
