MasterCylinder No: 260-8420


Call (805) 388-1188
Proportioning Valve
Prod #: 260-8420
Price: $103.87


Master Cylinder Dimensions
Bore Size
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type
Outlets
Material Aluminum / Steel
Finish Clear Anodize
Reservoir
Res Type
Res Size (oz)
Res Size(cu in)
Rate 0 to 57%
UPC Number
UPC 889545067941
Product Documents
Product Data Sheet


Click To Download

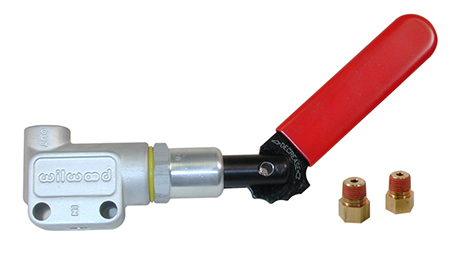

Proportioning Valve - Product Summary

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.





Master Cylinder Dimensions

Wilwood Proportioning Valve Drawing Wilwood Proportioning Valve Drawing Zoom Image
Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in) 1/8-27 NPT
Inlet Fit (in) 3/8-24 IF Female
Outlet Size 1 (in) 1/8-27 NPT
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
