No-Bleed Quick Disconnect Fitting-Female
Prod #: 260-16770
Price: $85.17

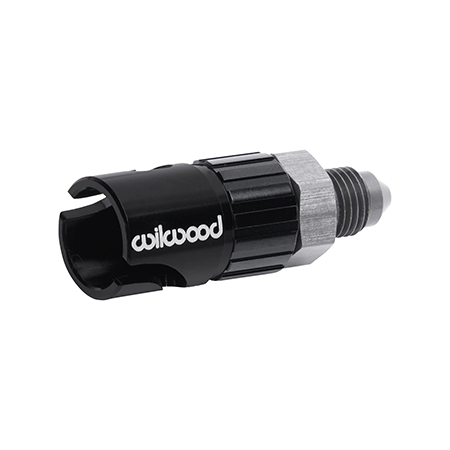

Wilwood No-Bleed Quick Disconnect Fitting-Female Wilwood No-Bleed Quick Disconnect Fitting-Female Zoom Image

Master Cylinder Dimensions
Bore Size
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type Female
Outlets
Material Aluminum
Finish Type III Ano / Black Ano
Reservoir
Res Type
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545109511
Product Documents
Product Data Sheet


Click To Download

No-Bleed Quick Disconnect Fitting-Female - Product Summary

Wilwood dry break quick connect/disconnect fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping.

Engineered explicitly for high-pressure hydraulic brake fluid systems. Configure hydraulic component spares with the appropriate adapter and pre-bleed for instant use, when needed. Race-proven in circle track, off-road, and endurance road racing. Lightweight (0.6 ounces) aluminum, precision engineered and hard anodized with female quick disconnect to -3 AN male fitting.





Master Cylinder Dimensions

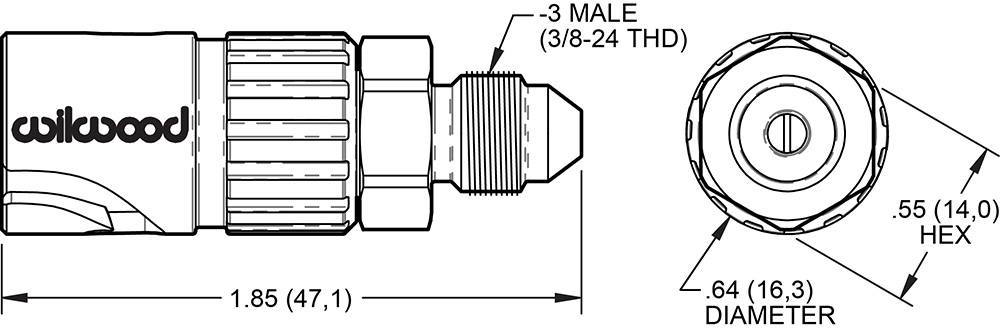

Wilwood No-Bleed Quick Disconnect Fitting-Female Drawing Wilwood No-Bleed Quick Disconnect Fitting-Female Drawing Zoom Image
Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) -3 AN Male
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
