MasterCylinder No: 260-16769

Call (805) 388-1188

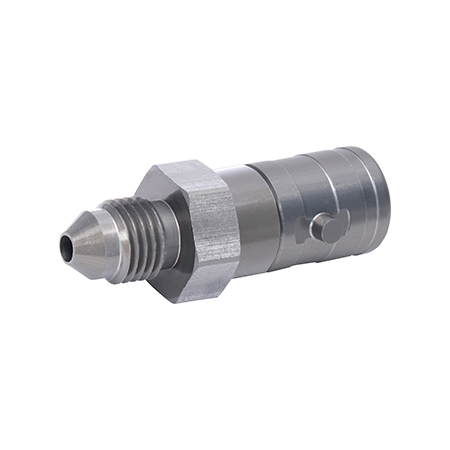

No-Bleed Quick Disconnect Fitting-Male
Prod #: 260-16769
Price: $85.17

Master Cylinder Dimensions
Bore Size
Area (in²)
Volume (cu in)
Master Cylinder Description
Type Male
Material Aluminum
Finish Type III Ano
Res Type
Res Size (oz)
Res Size(cu in)
UPC Number
UPC 889545109504
Product Documents
Product Data Sheet

Click To Download

No-Bleed Quick Disconnect Fitting-Male - Product Summary

Wilwood dry break quick connect/disconnect fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping.

Engineered explicitly for high-pressure hydraulic brake fluid systems. Configure hydraulic component spares with the appropriate adapter and pre-bleed for instant use, when needed. Race-proven in circle track, off-road, and endurance road racing. Lightweight (0.6 ounces) aluminum, precision engineered and hard anodized with -3 AN male fitting to male quick disconnect.

Master Cylinder Dimensions

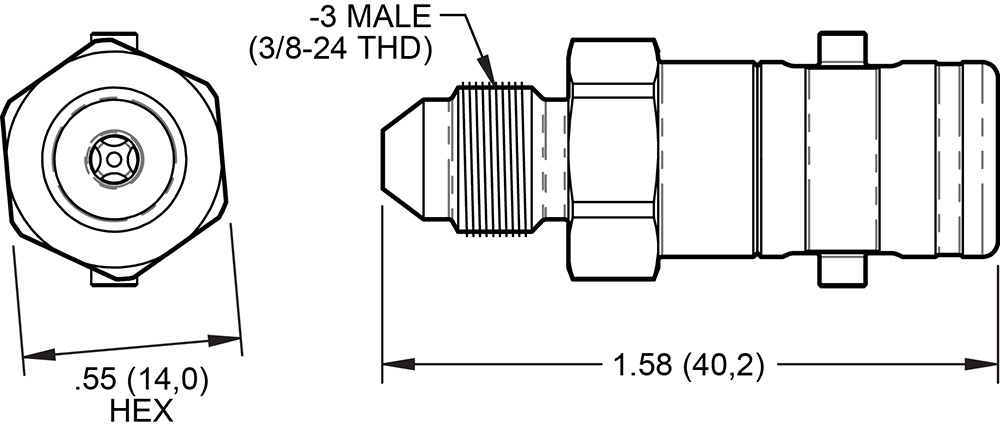

Wilwood No-Bleed Quick Disconnect Fitting-Male Drawing Wilwood No-Bleed Quick Disconnect Fitting-Male Drawing Zoom Image
Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in)
Inlet Fit (in)
Outlet Size 1 (in) -3 AN Male
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes

Additional related products:

More Details

All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
