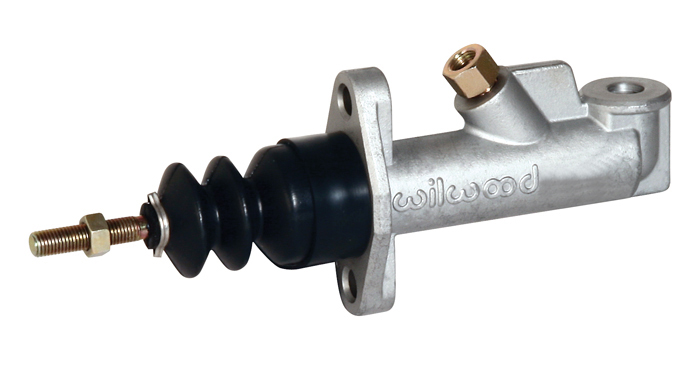

Compact Remote Reservoir Master Cylinder
Prod #: 260-11972
Price: $72.03


Master Cylinder Dimensions
Bore Size 13/16"
Area (in²) 0.520
Stroke 1.40
Volume (cu in) 0.73
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Bare
Reservoir
Res Type Remote
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545066890
Product Documents
Rebuild Kit Product Data Sheet

N/A


Compact Remote Reservoir Master Cylinder - Product Summary

Remote Reservoir Compact Master Cylinders are the perfect solution for club sport racers, small open wheel cars, or any other custom application where there is limited space for the master cylinder and fluid reservoir. Aluminum cylinders designed for use with either a detachable or remote fill reservoir. Available in four bore sizes from .625" to .813" with a full 1.4" of stroke to accommodate short pedal ratios, small brake calipers, and hydraulic clutch actuation on space limited application.





Master Cylinder Dimensions

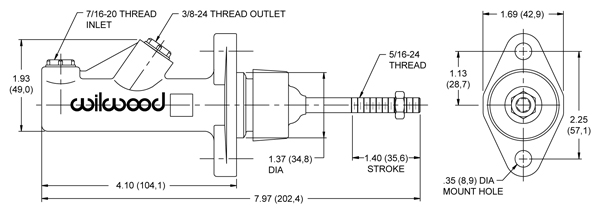

Wilwood Compact Remote Reservoir Master Cylinder Drawing Wilwood Compact Remote Reservoir Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 7.97"
Flange to End Length (in) 4.10"
Inlet Size (in) 7/16-20
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
