Flexline No: 220-9195


Call (805) 388-1188
Flexline Kit - 220-9195
Prod #: 220-9195
Price: $112.23



Applications
Mustang 68-73 Front kit
Kit Notes
FLEXLINE KIT,FRONT,MUSTANG,70-73

Size & Fittings
Length 18.00
Size -3
Chassis Fitting Size -3 to 3/8-24 IF or7/16-24 IF
Inlet Fitting -3 Female
Inlet Fitting Angle Straight
Outlet Fitting -3 Female
Outlet Fitting Angle Straight
Caliper Fit Angle 45 Degree
Caliper Fit Thread 1/8-27 NPT
Additional Info
Weight (lb) 1.00
Qty Each 1
Qty per Kit 2
Chassis Clip 300-15780
Line Bracket 250-9349 / 250-9350
UPC Number
UPC 889545051575
Ford Mustang Boss 429 Front Brake Install


Caliper Fitting
Fitting 220-6412
Angle 45 Degree
Thread 1/8-27 NPT

Chassis Fitting
Fitting 220-13124 / 220-6457
Size -3 to 3/8-24 IF or7/16-24 IF

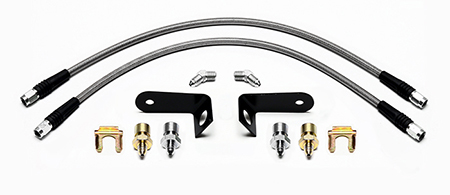

Flexline Kit Product Description

Wilwood’s stainless steel braided Flexline Kits are manufactured to high quality standards and are available in various -3 styles. These premium grade flexline kits have been designed for application specific kits. They are available as an optional item when ordering your disc brake kits and include all the required fittings. Wilwood highly recommends using these top quality flexlines as replacement for the OE rubber hoses.


Wilwood Flexline Fittings Instructions
