Flexline No: 220-6419


Call (805) 388-1188
Flexline Kit - 220-6419
Prod #: 220-6419
Price: $80.15



Applications
Civic w/240mm Rotor Kit
Kit Notes
FLEXLINE KIT,CIVIC,OEM,240mm ROTOR

Size & Fittings
Length 22.00
Size -3
Chassis Fitting Size -3 to M10 x 1 IF
Inlet Fitting -3 Female
Inlet Fitting Angle Straight
Outlet Fitting -3 Female
Outlet Fitting Angle 90 Degree
Caliper Fit Angle 90 Degree
Caliper Fit Thread 1/8-27 NPT
Additional Info
Weight (lb) 1.00
Qty Each 1
Qty per Kit 2
Chassis Clip
Line Bracket
UPC Number
UPC 889545050813

Caliper Fitting
Fitting 220-13125
Angle 90 Degree
Thread 1/8-27 NPT

Chassis Fitting
Fitting 220-6413
Size -3 to M10 x 1 IF

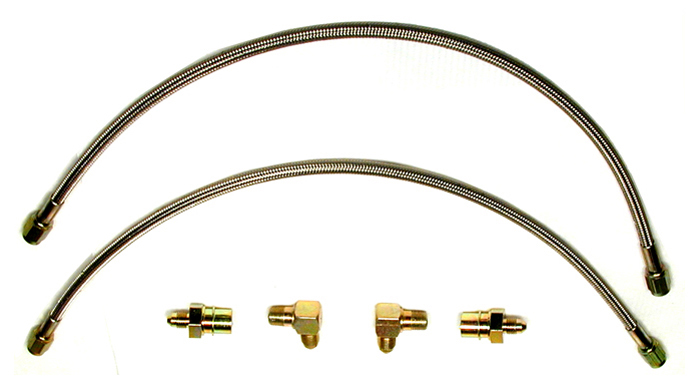

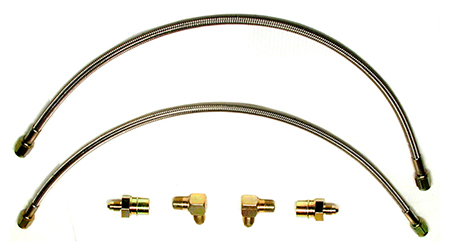

Flexline Kit Product Description

Wilwood’s stainless steel braided Flexline Kits are manufactured to high quality standards and are available in various -3 styles. These premium grade flexline kits have been designed for application specific kits. They are available as an optional item when ordering your disc brake kits and include all the required fittings. Wilwood highly recommends using these top quality flexlines as replacement for the OE rubber hoses.


Wilwood Flexline Fittings Instructions
