Applications
Corvette 65-82 Front Kit
Kit Notes
FLEXLINE KIT,FRONT,BNSL6R,VETTE,65-82   (OBSOLETE)

Size & Fittings
Length	16.00
Size	-3
Chassis Fitting Size	-3 to 3/8-24 IF
Inlet Fitting	-3 Female
Inlet Fitting Angle	Straight
Outlet Fitting	-3 Female
Outlet Fitting Angle	Straight
Caliper Fit Angle	90 Degree
Caliper Fit Thread	1/8-27 NPT
Additional Info
Weight (lb)	0.80
Qty Each	1
Qty per Kit	2
Chassis Clip
Line Bracket
UPC Number
UPC	889545044485

Caliper Fitting
Wilwood Flexline Kit Caliper Fitting Click Image to Close
Fitting	220-13125
Angle	90 Degree
Thread	1/8-27 NPT

Chassis Fitting
Wilwood Flexline Kit Chassis Fitting Click Image to Close
Fitting	220-13124
Size	-3 to 3/8-24 IF

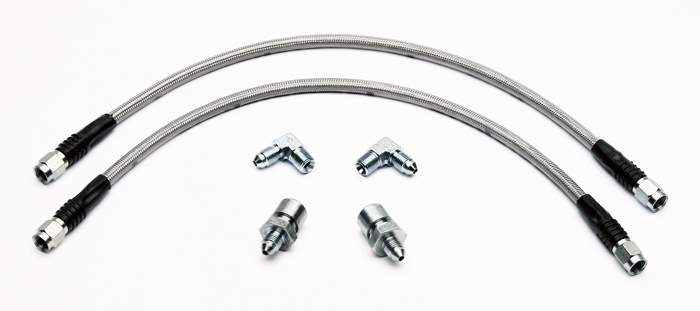

Flexline Kit Product Description

Wilwood’s stainless steel braided Flexline Kits are manufactured to high quality standards and are available in various -3 styles. These premium grade flexline kits have been designed for application specific kits. They are available as an optional item when ordering your disc brake kits and include all the required fittings. Wilwood highly recommends using these top quality flexlines as replacement for the OE rubber hoses.
