Sprint Inboard Hub - Dynamic
Prod #: 270-17657
Price: $164.92


Sprint Inboard Hub - Dynamic - Product Description

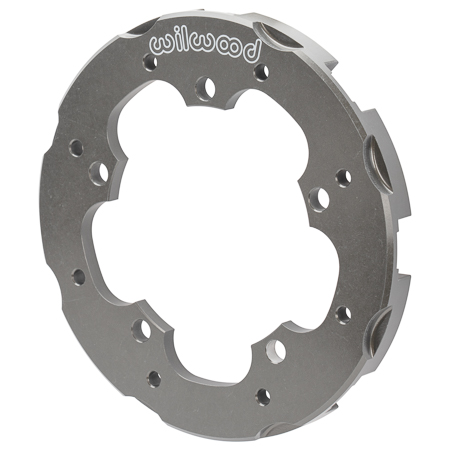

Wilwood’s XRZ Sprint 46 tooth splined inboard hub kit provides a basis to provide dynamic rotor mounting in either a T-nut or lug mount drive style using new 5 x 4.875” rotor adapters. The XRZ Hubs new spline enables easy quality/precise fit for DMI and Winters 46 spline axles. Using new 5 bolt rotor plate to hub attachment for added stiffness and user-friendly assembly/disassembly. Rotor plate has a smaller overall dimension from OD to ID with thicker material to add extended life and improved overall stiffness. Rotor plate can be removed without removing axle spline saver.


Material & Finish
Material Aluminum
Finish Type III Anodize
Weight (lbs) 0.54
UPC Number
UPC 889545113235
Rotor Compatibility
Rotor Mount Bolt Circle (in) 5x4.875
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Adapter-Dynamic
Adapter Bolt Circle(s) 6-Bolt Type 8 x 7.00
8-Bolt Type 8Lug-7.18
Hub Bolt Circles
Bolt Circle 1 (in) Splined
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in)
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Sprint Inboard 46 Spline
  • Sprint use only.


    • Hub Dimensions

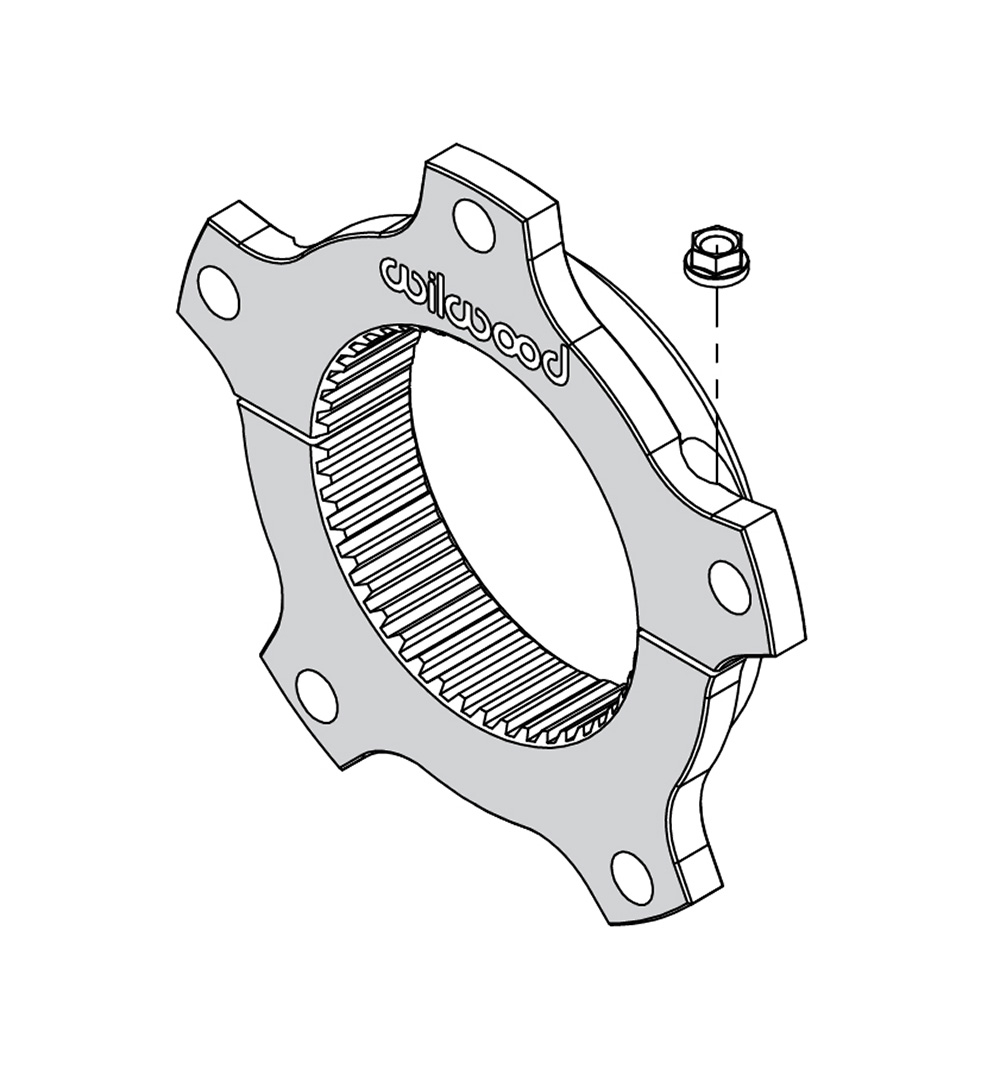

    Sprint Inboard Hub - Dynamic Drawing Sprint Inboard Hub - Dynamic Drawing Zoom Image
    Hub Dimensions (in)
    Dim A Dim N
    Dim D Dim P
    Dim H Dim Q
    Dim M

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing
    Inner Bearing Set - BCA#:
    Outer Bearing
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race
    Outer Hub Bearing - Race
