Hub No: 270-16772LS

Call (805) 388-1188
Wide 5 - Starlite 55
Prod #: 270-16772LS
Price: $220.11

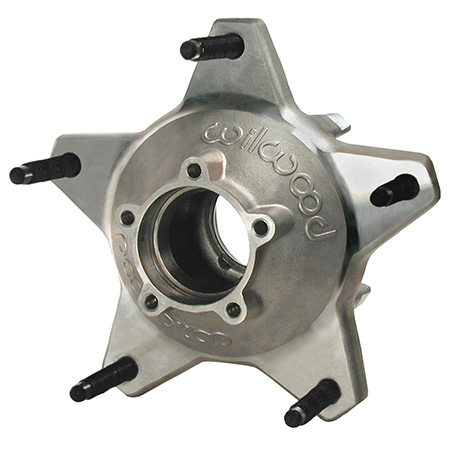

Wilwood Wide 5 - Starlite 55 Wilwood Wide 5 - Starlite 55 Zoom Image

Wide 5 - Starlite 55 - Product Description

1 Ton Bearing Races - Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite 55 features the strength of our innovative Starlite hub, further refined to eliminate unnecessary weight in the hub and related components. Drive flanges with five bolts instead of eight, and composite Snap-Cap front dust caps pare the loaded weight of these hubs down to some of the lightest available.


Material & Finish
Material Aluminum
Finish Bare
Weight (lbs) 8.7
UPC Number
UPC 889545103939
Rotor Compatibility
Rotor Mount Bolt Circle (in) 8 x 7.00
Rotor Offset Type STD Offset
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Direct
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in) 5 x 10.25
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in) 5/8-11
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Wide 5 Rear Hub - 1 Ton Bearing Races
  • Long Coarse Wheel Studs, 1.38" longer than standard Studs
  • NOTE: See Product Data Sheet for torque specs


  • Hub Dimensions

    Wide 5 - Starlite 55 Drawing Wide 5 - Starlite 55 Drawing Zoom Image
    Hub Dimensions (in)
    Dim A 3.570 Dim N 2.930
    Dim D 3.480 Dim P
    Dim H 2.650 Dim Q
    Dim M 4.600

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing 370-16724
    Inner Bearing Set - BCA#: N-A
    Outer Bearing 370-16725
    Outer Bearing Set - BCA#: N-A
    Inner Hub Bearing - Race 370-16722
    Outer Hub Bearing - Race 370-16723
