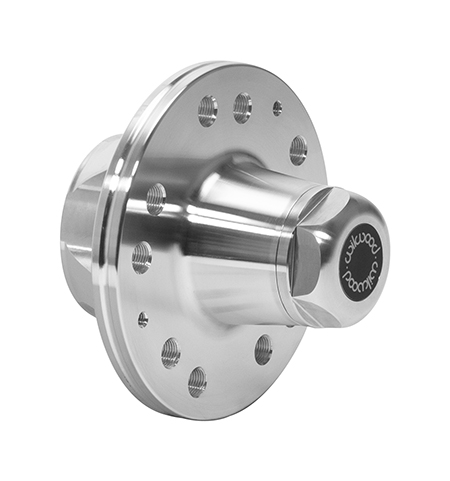

Hub - Hat Mount
Prod #: 270-14833
Price: $164.50


Hub - Hat Mount - Product Description

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats, these specific Hubs for 1957 - 1967 Ford F-100 are dual drilled on a 5 on 4.50" and 5 x 4.75" wheel lug pattern. Hubs include bearing races and use a screw on cap.


Material & Finish
Material Aluminum
Finish Bare
Weight (lbs) 3.7
UPC Number
UPC 889545084474
Rotor Compatibility
Rotor Mount Bolt Circle (in)
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Hat
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in) 5 x 4.50
Bolt Circle 2 (in) 5 x 4.75
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in) 1/2-20
Stud Dia 2 (in) 1/2-20
Stud Dia 3 (in)

Hub Characteristics

  • 57-67 Ford F100
  • Hub contains 3 qty 1/4-20 holes for hat retention. Use bolt kit 230-7032.


    • Hub Dimensions

    Hub - Hat Mount Drawing Hub - Hat Mount Drawing Zoom Image
    Hub Dimensions (in)
    Dim A Dim N 2.010
    Dim D 2.620 Dim P 3.180
    Dim H 1.770 Dim Q 0.260
    Dim M 3.530

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing 370-2609
    Inner Bearing Set - BCA#: A5
    Outer Bearing 370-0877
    Outer Bearing Set - BCA#: A2
    Inner Hub Bearing - Race 370-2571
    Outer Hub Bearing - Race 370-0876
