Sprint Inboard Hub Kit - Dynamic
Prod #: 270-12635
Price: $252.88

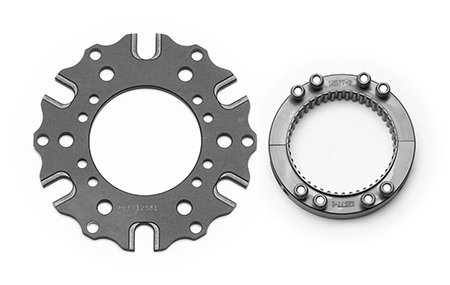

Wilwood Sprint Inboard Hub Kit - Dynamic Wilwood Sprint Inboard Hub Kit - Dynamic Zoom Image

Sprint Inboard Hub Kit - Dynamic - Product Description

Wilwood's Gen II Sprint 48 tooth splined inboard hub & adapter kit provides a basis to provide dynamic rotor mounting of 6 x 5.50" bolt pattern rotors. Hub & adapter kits contain: rotor adapter and dynamic rotor mounting bolt kit. Additional T-nuts and bolts are required for rotor mounting and are not supplied with the clamp kit.

Material & Finish
Material Aluminum
Finish Type III Anodize
Weight (lbs) 1.6
UPC Number
UPC 889545068672
Rotor Compatibility
Rotor Mount Bolt Circle (in) 3.37x2.28
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Adapter-Dynamic
Adapter Bolt Circle(s) 6-Bolt Type 6 x 5.50
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in) Splined
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in)
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Sprint Inboard 48 Spline
  • Sprint use only.

  • Hub Dimensions

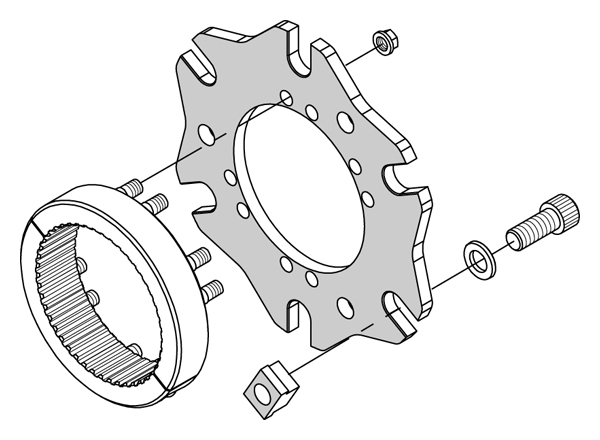

    Sprint Inboard Hub Kit - Dynamic Drawing Sprint Inboard Hub Kit - Dynamic Drawing Zoom Image
    Hub Dimensions (in)
    Dim A Dim N
    Dim D Dim P
    Dim H Dim Q
    Dim M

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter: 300-12581
    8 Bolt Adapter
    Inner Bearing
    Inner Bearing Set - BCA#:
    Outer Bearing
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race
    Outer Hub Bearing - Race
