Hat No: 170-15518


Call (805) 388-1188
GT Dynamic Lug Mount Hat - Straight Bell
Prod #: 170-15518
Price: $311.77
GT Dynamic Lug Mount Hat - Straight Bell 170-15518

Hat Dimensions
Mount Hole Type Lug
Rotor Bolt Circle (in) 12lug-7.77
Hat Offset (in) 2.900
Center Reg. (in) 4.07
Hat Type
Material Aluminum
Mount Style Dynamic Lug Mount
Finish Type III Anodize
Weight (lbs) 3.250
Bolt Circle Dimensions
Hat Bolt Circle 1 5 X 5.00
Hat Bolt Circle 2
Hat Bolt Circle 3
UPC Number
UPC 889545089578
Application Info
Application Note Road Racing, TA-2
Hat Bolt Kit Part # 300-14912
Application Note
Application Note
GT Dynamic Lug Mount Hat - Straight Bell - Product Description

Wilwood's new GT Dynamic Lug Drive hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated.





Rotor Hat Dimensions

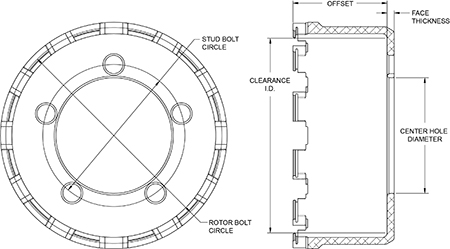

GT Dynamic Lug Mount Hat - Straight Bell Hat Drawing GT Dynamic Lug Mount Hat - Straight Bell Hat Drawing Zoom Image
Additional Hat Dimensions
Rotor Mount Hole Size (in) N/A
Shoe I.D. (in)
Clearance I.D. (in) 7.01
Face Thickness (in) 0.29
Hat Stud Diamenter - BC 1 (in) 0.640
Hat Stud Diamenter - BC 2 (in)
Hat Stud Diamenter - BC 3 (in)
Additional Notes

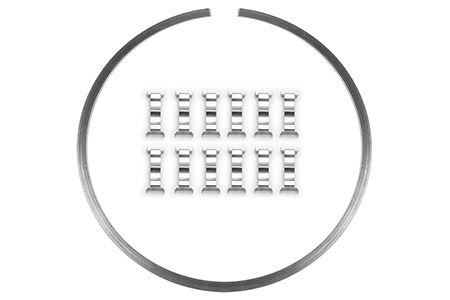

300-14912 Dynamic Lug Mount Clip & Snap Ring kit are required for rotor mounting.

Wilwood Compatible Rotors

Products commonly used with this item:




$51.37
More Details
