Hat No: 170-15057


Call (805) 388-1188
Truck Hat - Standard
Prod #: 170-15057
Price: $367.98
Truck Hat - Standard 170-15057

Hat Dimensions
Mount Hole Type Threaded
Rotor Bolt Circle (in) 12 x 10.25
Hat Offset (in) 0.700
Center Reg. (in) 3.55
Hat Type
Material Aluminum
Mount Style Fixed Mount
Finish Black E-Coat
Weight (lbs) 3.500
Bolt Circle Dimensions
Hat Bolt Circle 1 6 X 5.32
Hat Bolt Circle 2
Hat Bolt Circle 3
UPC Number
UPC 889545073751
Application Info
Application Note Ford F150 2004-Up
Hat Bolt Kit Part # 230-14086
Application Note
Application Note
Truck Hat - Standard - Product Description

Wilwood's Truck hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Truck Hats feature strengthening ribs on a flared bell configuration for big rotor brake kits on truck, SUV, and 4WD axles with either 6 or 8 lug configurations.





Rotor Hat Dimensions

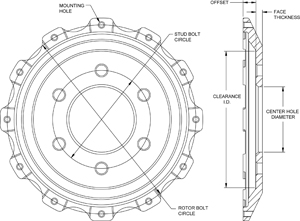

Truck Hat - Standard Hat Drawing Truck Hat - Standard Hat Drawing Zoom Image
Additional Hat Dimensions
Rotor Mount Hole Size (in) 5/16-18
Shoe I.D. (in)
Clearance I.D. (in) 7.40
Face Thickness (in) 0.35
Hat Stud Diamenter - BC 1 (in) 0.590
Hat Stud Diamenter - BC 2 (in)
Hat Stud Diamenter - BC 3 (in)
Additional Notes

Wilwood Compatible Rotors

GT 60 Curved Vane Rotor


Rotor Dimensions
Rotor Diameter Range 15.50
Rotor Width Range 1.38

GT 60 Curved Vane Rotor Rotors

Wilwood's GT & GTB 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 60 Curved Vane rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. View GT Rotors
GT 60 Curved Vane Rotor


Rotor Dimensions
Rotor Diameter Range 15.50
Rotor Width Range 1.38

GT 60 Curved Vane Rotor Rotors

Wilwood's GT & GTB 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 60 Curved Vane rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. View GT Rotors
GT 60 Curved Vane Rotor


Rotor Dimensions
Rotor Diameter Range 15.00
Rotor Width Range 1.25

GT 60 Curved Vane Rotor Rotors

Wilwood's GT 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. View GT Rotors
GT 72 Staggered Vane Rotor


Rotor Dimensions
Rotor Diameter Range 15.50
Rotor Width Range 1.38

GT 72 Staggered Vane Rotor Rotors

Wilwood's GT & GTB 72 Staggered Vane rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 72 Staggered Vane rotors provide some of the highest cooling capacity and longest service life for extreme braking tracks and road course competition. View GT Rotors
