Brake Pedal - 330-13369

Call (805) 388-1188
Brake Pedal
Prod #: 330-13369
Price: $60.55

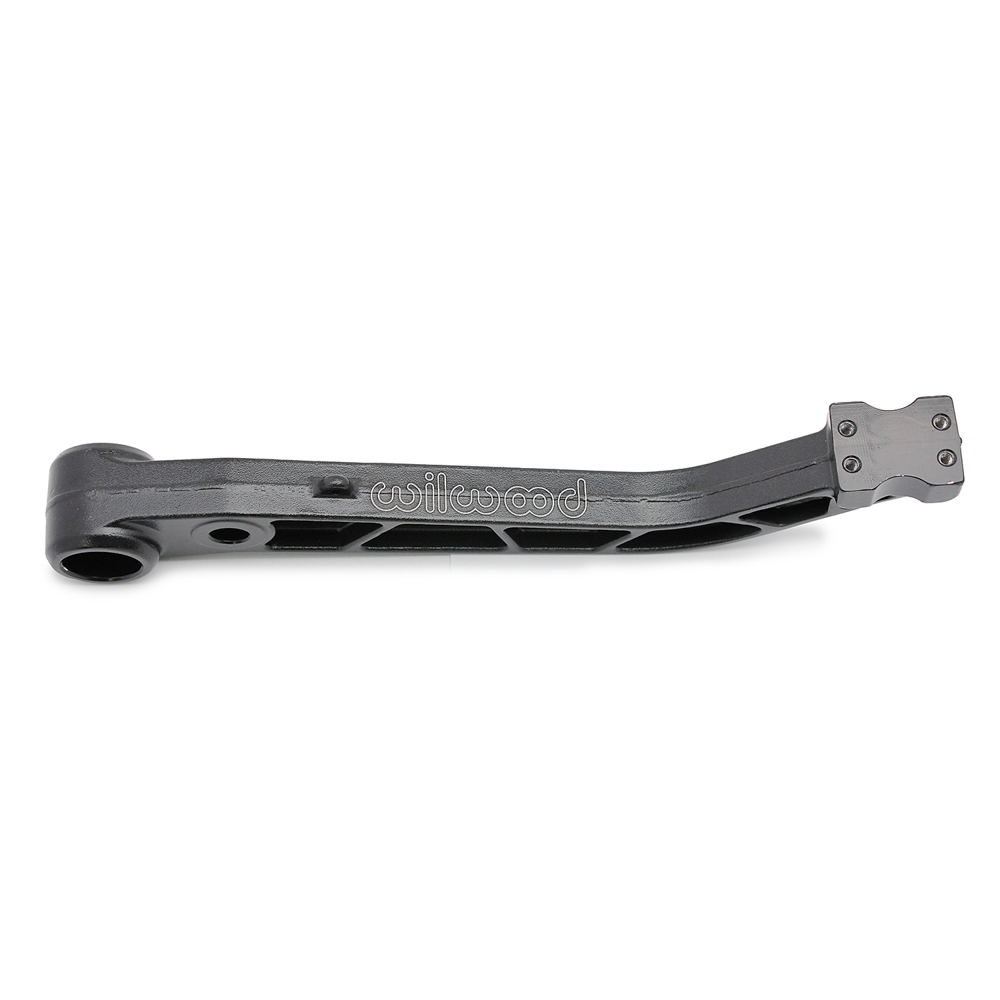

Wilwood Brake Pedal Wilwood Brake Pedal Zoom Image

Brake Pedal Replacement Parts

Brake Pedal Lever for Wilwood’s 340-13835 / 340-13837, Reverse Mount Brake Pedal Assemblies, with 5.00 to 1 ratio. Engineered from high strength aluminum alloy forging and with a black e-coat finish for corrosion resistance. Does not contain pedal pad or hardware.



Brake Pedal Description
Type Brake Pedal
Material Aluminum
Finish
Weight (oz)
Thread Size
Thread Size
Pin Size
Cap Thread
UPC Number
UPC 889545072488
Notes
Desc 1 PEDAL,REVERSE MT,BRAKE,5:1
Desc 2
Cautionary Info
Cautionary Info
Product Data Sheets
Data Sheet

Brake Pedal Dimensions

Drawing Drawing
Pedal Set
Pedal Type Brake Pedal
Pedal Direction Reverse
Pedal Ratio 5.00 to 1
Pedal Length (in) 10.77
Pivot Length (in) 1.68
P Pin Dia 0.505
C Pin Dia 1.000
B Pin Dia
Parking Brake Cable
Length (in)
Width (in)
Slot Width (in)
B Pin Dia

Additional Notes



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
