Bracket Kit, Rear - Lug Mount
Prod #: 250-16597
Price: $68.92

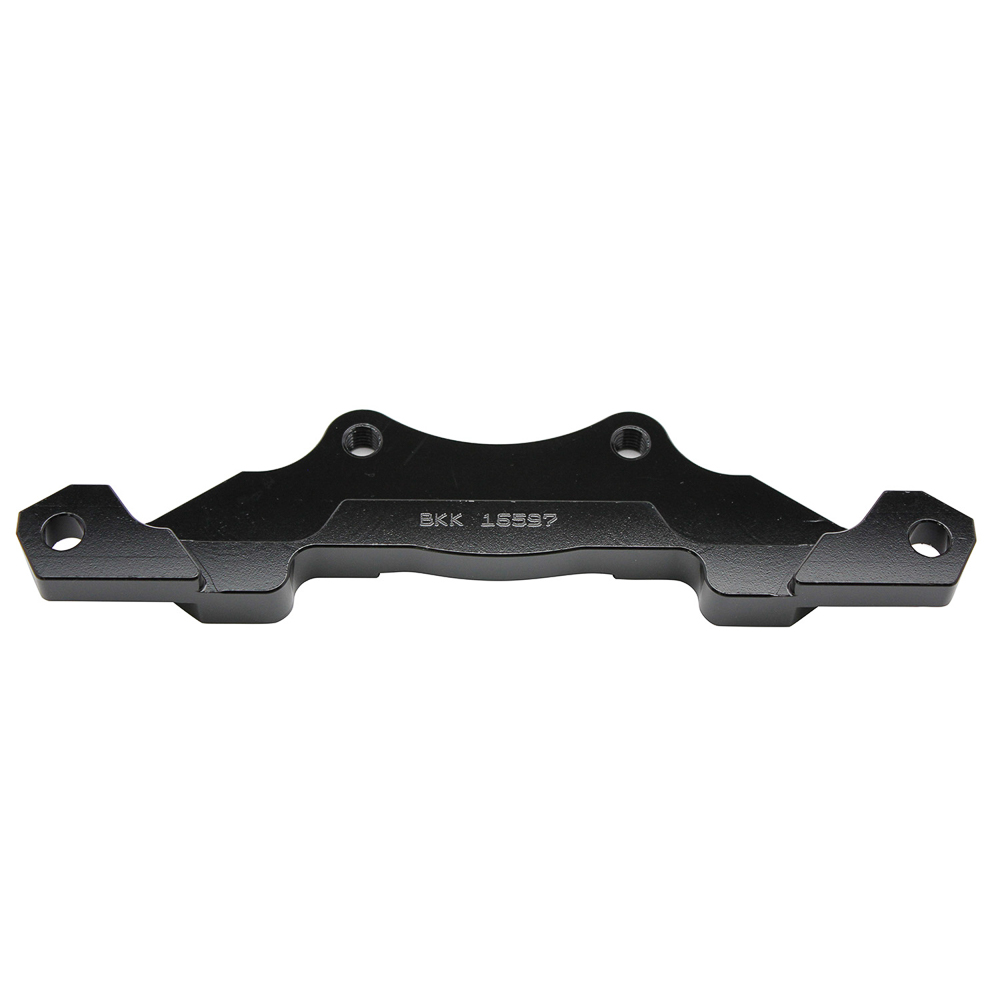

Wilwood Bracket Kit, Rear - Lug Mount Wilwood Bracket Kit, Rear - Lug Mount Zoom Image

Bracket Kit

Wilwood’s Rear Lug Mount Bracket kits mounts lug mount UTV calipers with 8.75” center to center mount used in various Wilwood calipers. Mounts are application (vehicle) specific and contain 0.400" thru-hole for caliper mounting. Engineered from high strength aluminum alloy.



Bracket Kit, Rear - Lug Mount Description
Type Bracket Kit, Rear - Lug Mount
Material Aluminum
Finish
Weight (oz) 0.608
Packet Qty Each
Mount Info
Mount Side L/H or R/H
Mount Type Lug
UPC Number
UPC 889545102444
Notes
Desc 1 BRACKET,FLAT,CALIPER MT,UTV-P,8.75,.110
Desc 2 OFFSET,2.872 MT,REAR
Cautionary Info

Product Data Sheets
Data Sheet


Bracket Kit, Rear - Lug Mount Dimensions

 Drawing Drawing
Dimensions
Dim Mount Center 8.75"
Thread Size N-A
Stud No N-A
Dim Rotor Dia (in) 11.25
Additional Notes
