Bracket Kit, Caliper Mounting (Racing)
Prod #: 250-14378
Price: $88.42

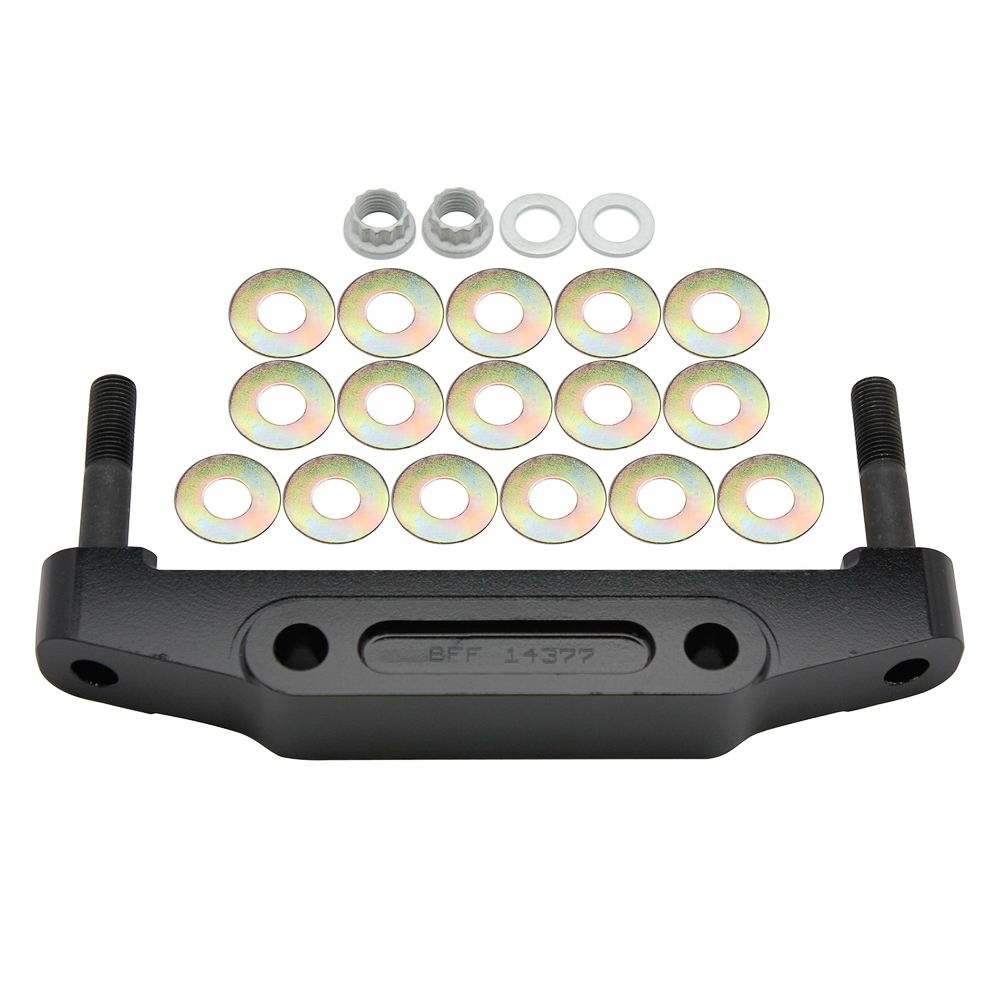

Wilwood Bracket Kit, Caliper Mounting (Racing) Wilwood Bracket Kit, Caliper Mounting (Racing) Zoom Image

Bracket Kit, Caliper Mount

Wilwood’s GN6R bracket mounts the GN6R Radial caliper to 3.50” center to center lug mount. Mounting height is engineered to allow mounting this caliper and 13.06” rotors on Late Model style caliper brackets originally set for Superlite caliper with 11.75” diameter rotor. Brackets include studs, shim and the mounting hardware.



Bracket Kit, Caliper Mounting (Racing) Description
Type Bracket Kit, Caliper Mounting (Racing)
Material Aluminum
Finish
Weight (oz) 1.250
Packet Qty Each
Mount Info
Mount Side L/H or R/H
Mount Type Radial
UPC Number
UPC 889545071368
Notes
Desc 1 BRACKET KIT,CALIPER,GN6R,3.50 MT,13.06
Desc 2 ROTOR
Cautionary Info

Product Data Sheets
Data Sheet


Bracket Kit, Caliper Mounting (Racing) Dimensions

 Drawing Drawing
Dimensions
Dim Mount Center 7.09
Thread Size 7/16-20
Stud No 230-13776
Dim Rotor Dia (in) 13.06
Additional Notes
