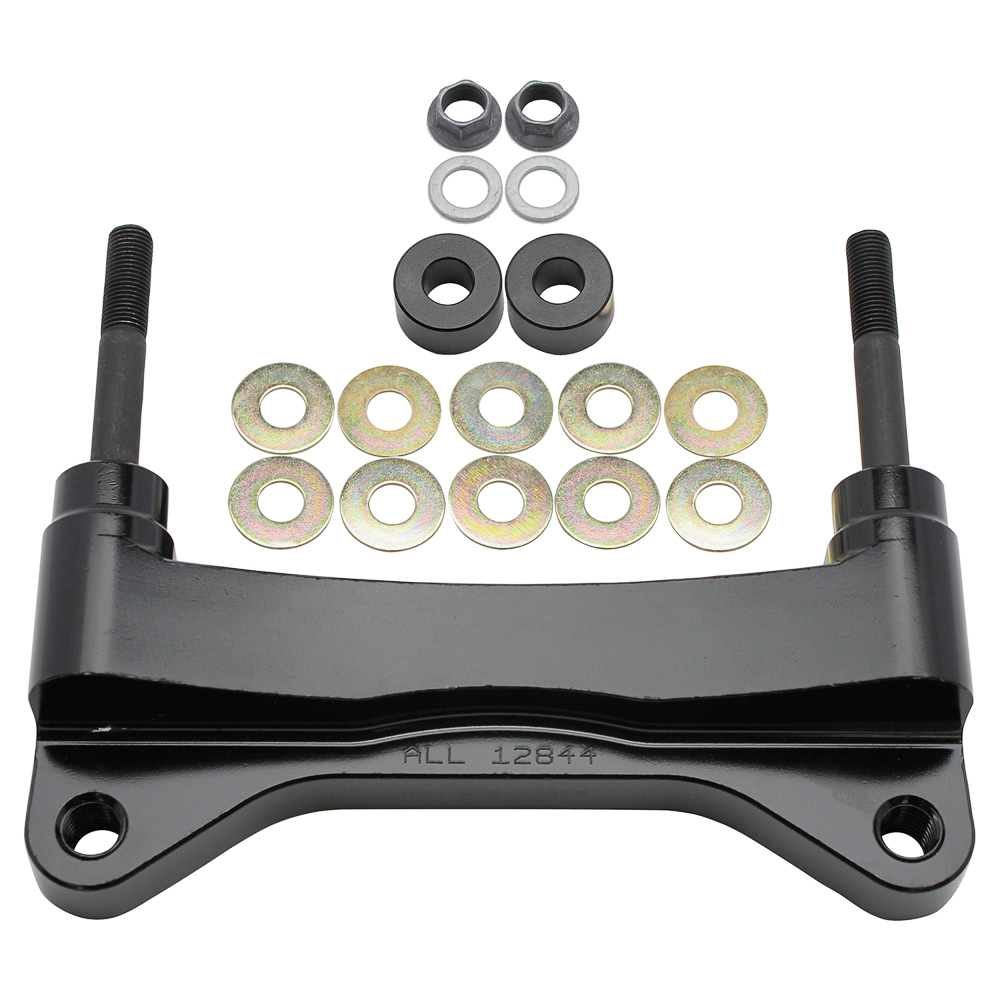

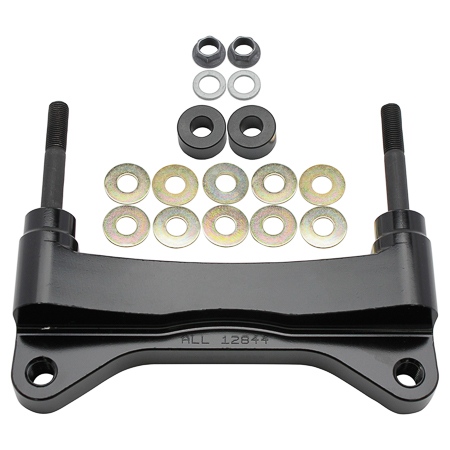

Bracket Kit, Front - Radial Mount
Prod #: 250-12858
Price: $147.32


Bracket Kit

Wilwood’s Front Radial Mount Bracket kits mounts radial mount calipers with 5.98” center to center radial mount used in various Wilwood calipers. Mounts are application (vehicle) specific and contain hardware. Engineered from high strength aluminum alloy.



Bracket Kit, Front - Radial Mount Description
Type Bracket Kit, Front - Radial Mount
Material Aluminum
Finish
Weight (oz) 1.600
Packet Qty Each
Mount Info
Mount Side L/H or R/H
Mount Type Radial
UPC Number
UPC 889545063899
Notes
Desc 1 BRACKET KIT,CALIPER,FNSL6R,FRONT,RADIAL
Desc 2 MT,99-12 SUBARU WRX,14.00 ROTOR
Cautionary Info

Product Data Sheets
Data Sheet


Bracket Kit, Front - Radial Mount Dimensions

Dimensions
Dim Mount Center 5.98
Thread Size 3/8-24
Stud No 230-9079
Dim Rotor Dia (in) 14
Additional Notes
