Bracket Kit, Rear - 250-12353

Call (805) 388-1188
Bracket Kit, Rear
Prod #: 250-12353
Price: $65.76

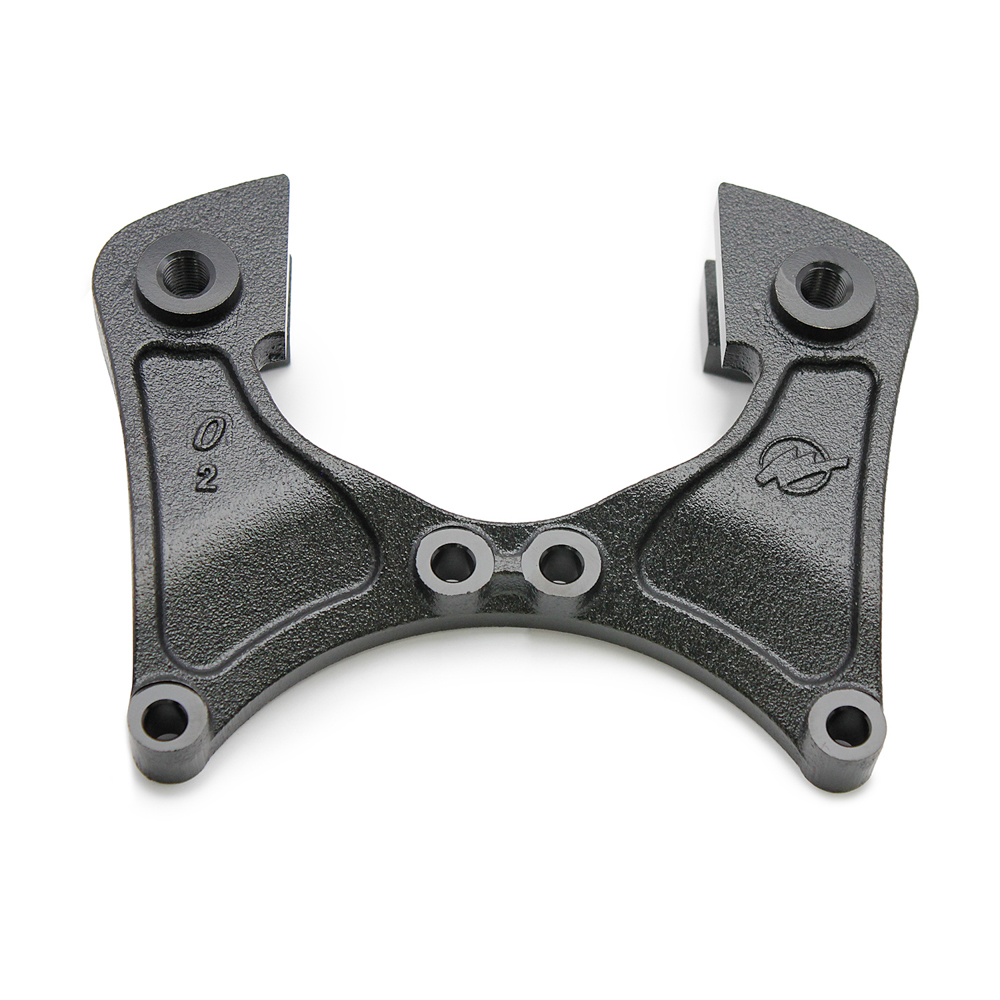

Wilwood Bracket Kit, Rear Wilwood Bracket Kit, Rear Zoom Image

Bracket Kit

Caliper Mount Bracket kit for Wilwood’s D154 Disc/Drum Parking Brake kits. Bracket assembly contains one floating mount caliper bracket with 5.46” mount centers for D154 Calipers. Optimized for 12.19” diameter rotors. Engineered from high strength iron alloy.



Bracket Kit, Rear Description
Type Bracket Kit, Rear
Material Aluminum
Finish
Weight (oz) 1.860
Packet Qty Each
Mount Info
Mount Side L/H or R/H
Mount Type Floating
UPC Number
UPC 889545063301
Notes
Desc 1 BRACKET,CALIPER,GM D154,REAR,12.19 ROTOR
Desc 2
Cautionary Info

Product Data Sheets
Data Sheet

Bracket Kit, Rear Dimensions

Drawing Drawing
Dimensions
Dim Mount Center 5.46
Thread Size 7/16-20
Stud No N-A
Dim Rotor Dia (in) 12.19
Additional Notes


All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
