Bracket Kit, Disc/Drum - D154 - 249-12664/65

Call (805) 388-1188
Bracket Kit, Disc/Drum - D154
Prod #: 249-12664/65
Price: $399.10

Wilwood Bracket Kit, Disc/Drum - D154 Wilwood Bracket Kit, Disc/Drum - D154 Zoom Image

Bracket Kit

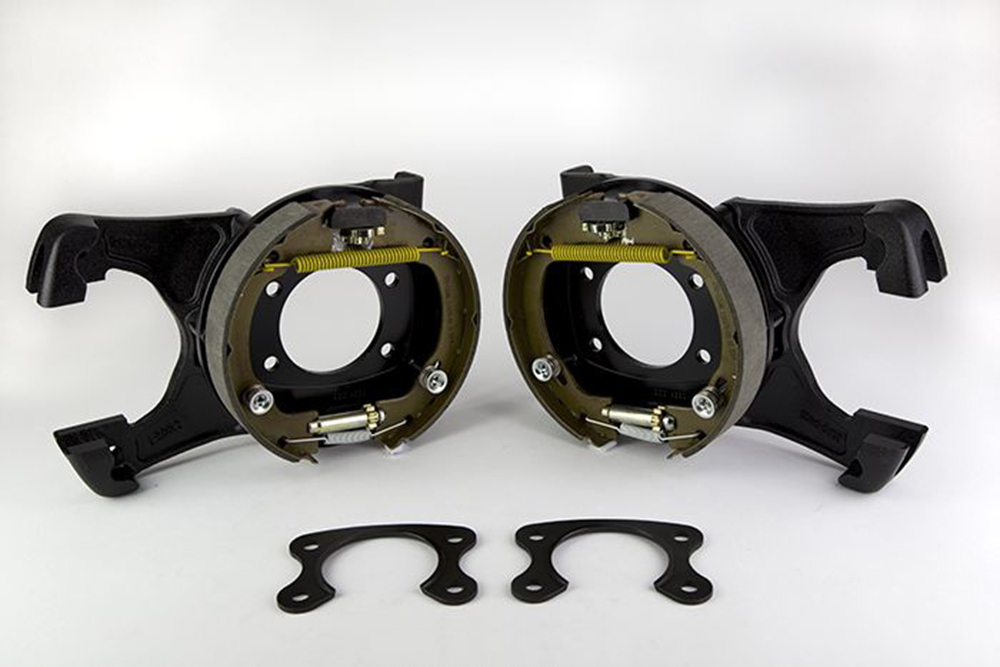

Bracket kit for Wilwood’s Disc/Drum Parking Brake kits. Bracket assembly includes an additional floating mount caliper bracket with 5.46” mount centers for D154 Floating Calipers. Optimized for 12.19” diameter rotors. Contains parking brake shoes and internal hardware.



Bracket Kit, Disc/Drum - D154 Description
Type Bracket Kit, Disc/Drum - D154
Material Aluminum
Finish
Weight (oz) 11.500
Packet Qty Pair
Mount Info
Mount Side L/H & R/H
Mount Type Floating
UPC Number
UPC 889545060157
Notes
Desc 1 BRACKET KIT,DISC/DRUM,BIG FORD,OLD,2.36
Desc 2 OFFSET,1PC 12.19x.81 ROTOR,CAST
Cautionary Info

Product Data Sheets
Data Sheet

Bracket Kit, Disc/Drum - D154 Dimensions

Drawing Drawing
Dimensions
Dim Mount Center 5.46
Thread Size 7/16-20
Stud No N-A
Dim Rotor Dia (in) 12.19
Additional Notes
