Stud Kit-Drive Flange
Prod #: 230-18380
Price: $19.43

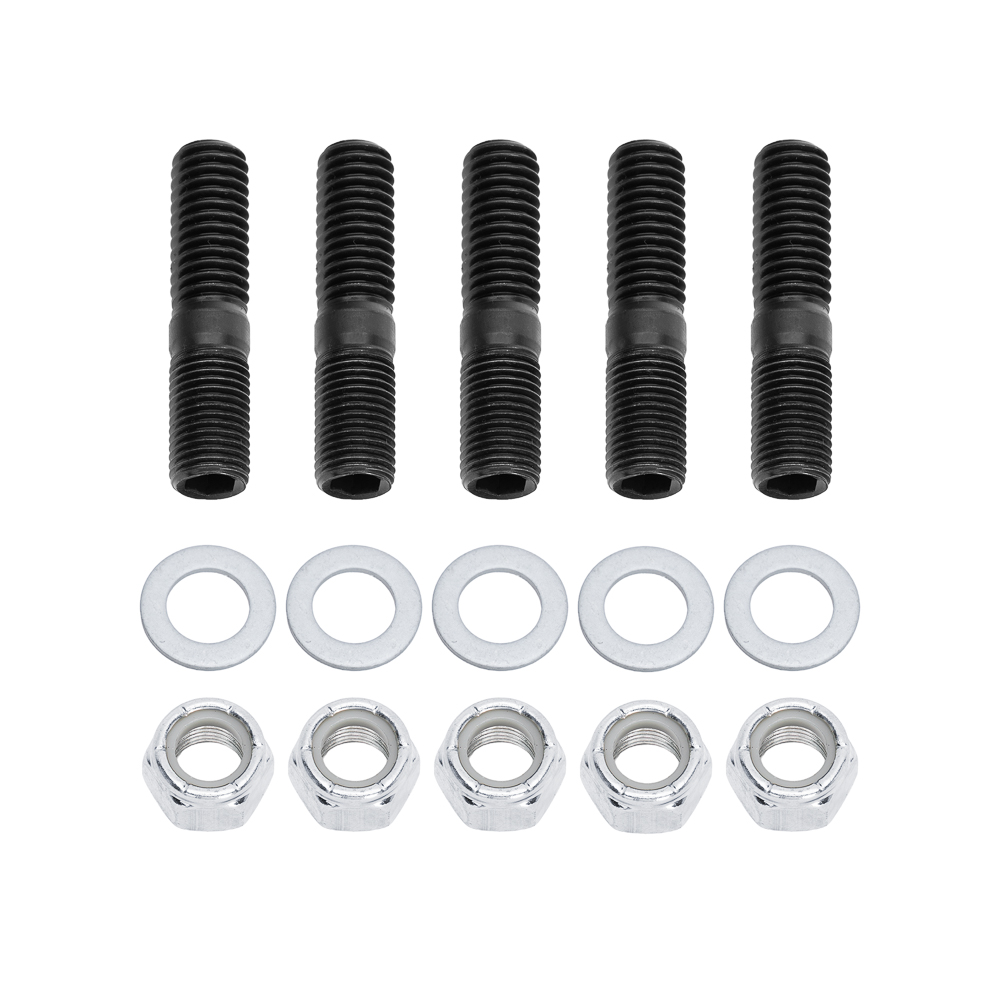

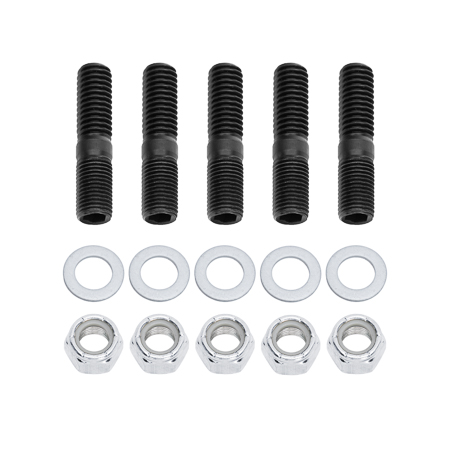

Wilwood Stud Kit-Drive Flange Wilwood Stud Kit-Drive Flange Zoom Image

Hub Accessories - Wide 5

Wilwood’s Drive Flange Stud kit features 5 quantity, 2.00" inch long, 7/16-14 to 7/16-20 studs, washer and hex lock nuts for 5 bolt drive flanges.



Stud Kit-Drive Flange Description
Type Stud Kit-Drive Flange
Material Alloy Steel
Grade Grade 8
Finish
Weight (oz) 0.500
Bolt Qty 5
Shape
Head Type Socket Head
Drive Type Hex Drive
Length 2.00
Thread 7/16-14/7/16-20
Washer Flat
Notes
Desc 1 BOLT KIT,STUD,2.00 OAL,NUT,WASHERS,DRIVE
Desc 2 FLANGE
Cautionary Info

Product Data Sheets
Data Sheet

Stud Kit-Drive Flange Dimensions

Drawing Drawing
Dimensions
Thread Size 7/16-14/7/16-20
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled N
Additional Notes
