Bolt Kit-Rotor - 230-12176

Call (805) 388-1188

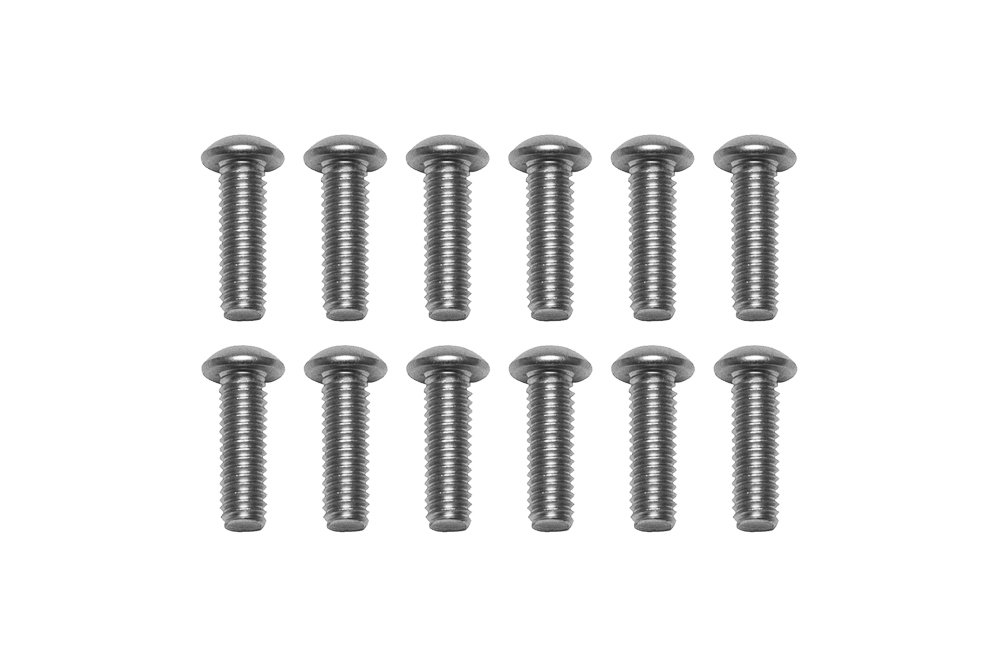

Bolt Kit-Rotor
Prod #: 230-12176
Price: $19.90

Wilwood Bolt Kit-Rotor Wilwood Bolt Kit-Rotor Zoom Image

Rotor and Hat Hardware

Wilwood’s Rotor Bolt kits contain bolts and hardware for mounting rotors specific hat or adapters.



Bolt Kit-Rotor Description
Type Bolt Kit-Rotor
Material Stainless
Grade 18-8
Finish
Weight (oz) 0.280
Bolt Qty 12
Shape
Head Type Button Head
Drive Type Torx
Length 1.000
Thread 5/16-18
Washer
UPC Number
UPC 889545053715
Notes
Desc 1 BOLT KIT,HAT/ROTOR,5/16-18x1.00 BHCS
Desc 2 TORX,CRES,12 PACK
Cautionary Info

Product Data Sheets
Data Sheet

Bolt Kit-Rotor Dimensions

Drawing Drawing
Dimensions
Thread Size 5/16-18
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled N
Additional Notes
